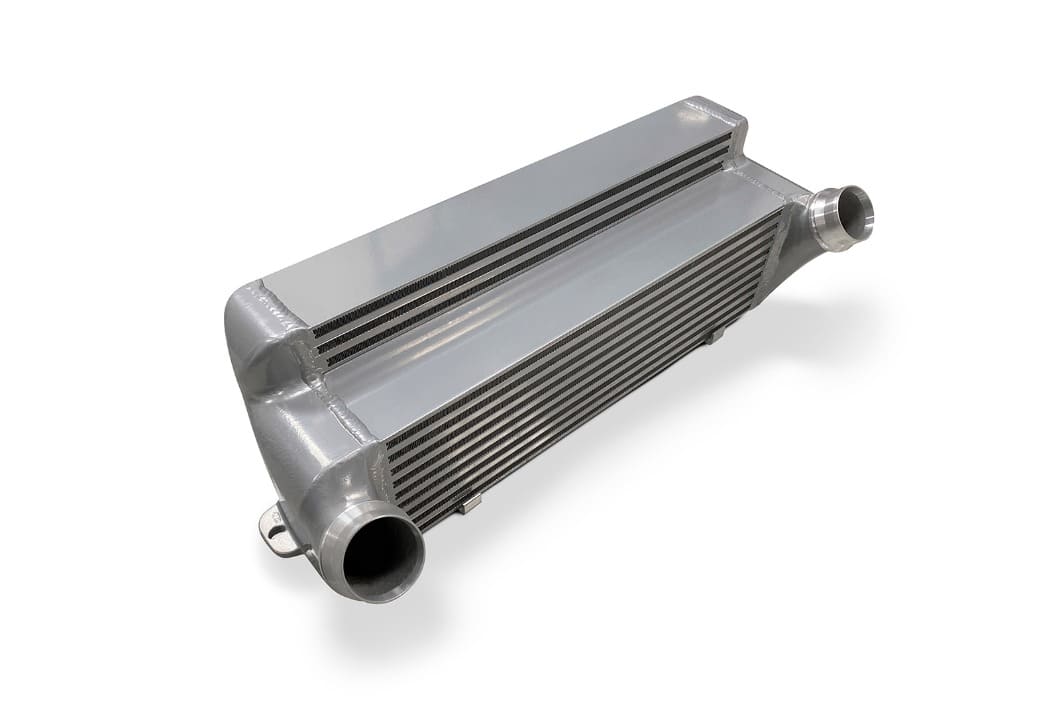

VRSF HD intercooler, BMW 1/2/3/4+M2 F-series, petrol/diesel models



VRSF intercooler kits for high power BMW’s.

BMW intercooler (FMIC)
In BMW turbo engine, like in all turbo engines the intake air temperature is absolutely significant. With every degree up or down, you will lose or gain that previous horsepower. Hot air is less dense and oxygen rich by nature (resulting in less power output), but in addition to that your Engine Control Unit will actively limit the engine power whenever the IAT shows any signs of rising.

Therefore a high performance intercooler is always a beneficial upgrade, even in stock engine.

VRSF intercoolers are designed specifically for each BMW model and engine to offer an efficient solution.

BMW 1/2/3/4 series and M2 with N20/N26/N47/N55 engines

This intercooler kit fits in an exceptionally long list of BMW models between years 2012 – 2018. Nearly all common gasoline and diesel models in RWD and xDrive applications are supported, please check closer listing below.

Street core is optimized for power output up to +500hp, while with Race core you’ll achieve even stronger cooling capacity with flow capacity up to +800hp applications. Please consider possible extra sensors depending on your trim level, such as adaptive cruise control or front cameras.

Intercooler core and construction

OEM BMW tube and fin intercooler is designed to support low boost levels and air flow. However, once boost levels and air flow are increased, the OEM unit simply can not keep up with the cooling demands any more.

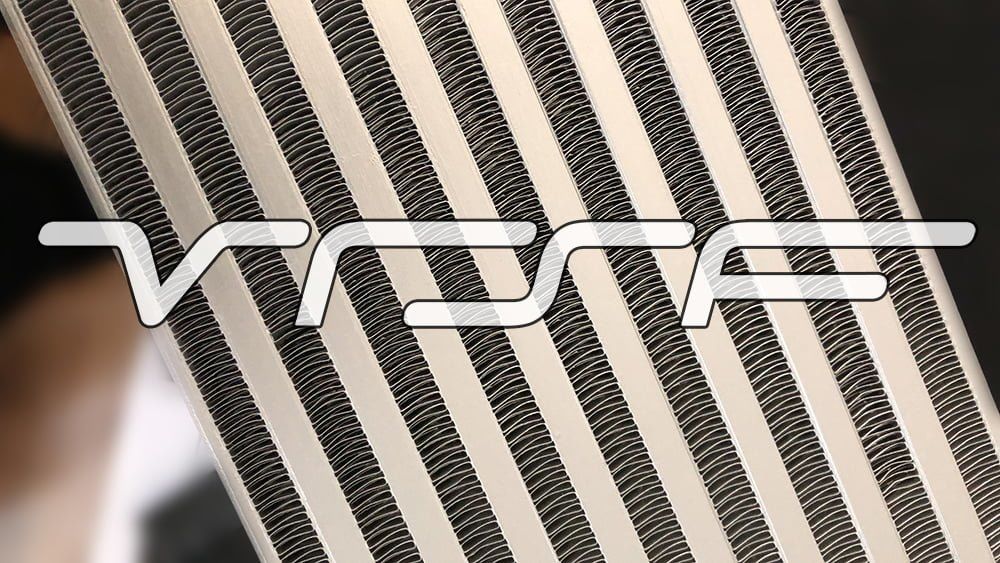

VRSF core comes with high density bar-and-plate design to allow efficient temperature reduction with minimal pressure drop. Intercooler is specifically designed for upgraded turbo cars running larger turbos and higher boost pressures. Core features a cast aluminum end tanks for improved flow and durability.

Installation

All needed accessories are included, to make installation possible even in home garage if you will. Normal tools and equipment with some extra time should be enough.

This kit doesn’t need modifications for bumper or structures.

Depending on your trim level and model, it’s always good to be prepared for some minor trimming or honing for that perfect fitment.

---

Keypoints

• Bolt-on fitment, all needed accessories included.
• 87% more capacity than stock core
• Checked and pressure tested high quality cores.
• Intercooler kit doesn’t need engine tuning (although it will increase the benefits)
• Product comes with VRSF warranty

Confirmed fitment for following models:
2012 – 2018 F30/F31/F36 BMW 320i & 320xi / 328i & 328xi / 335i & 335xi (316i, 316d, 318d, 320d, 325d, 330d, 335d)
2012 – 2018 F32 BMW 428i & 428xi / 435i & 435xi (420i, 420d, 425d, 430d, 435d)
2014 – 2018 F22/F23 BMW 228i & 228xi / M235i & M235xi (220i, 218d, 220d, 225d)
2012 – 2018 F20/F21 BMW 114i / 116i / 118i / 125i / M135i / 114d / 116d / 118d / 120d / 125d
2016 – 2019 F87 BMW M2

Most of the common BMW intercoolers are stocked locally in our warehouse in Finland. We get weekly shipments from the manufacturer for optimal delivery times with backordered items.

Tip: Have a look at aluminium charge pipes for BMW in our selection as well.

---
