Wagner Gen.2 Intercooler Kit, Hyundai Veloster N 2.0 T-GDI 2021+

This Wagner Tuning Competition intercooler is designed to meet the toughest demands of your vehicle.

Benefits of the Wagner Tuning intercooler:
– Enhanced cooling performance
– 44.3% larger airflow area
– 101.4% greater net volume
– Weight: 9.3 kg
– Improved airflow
– Plug & play installation

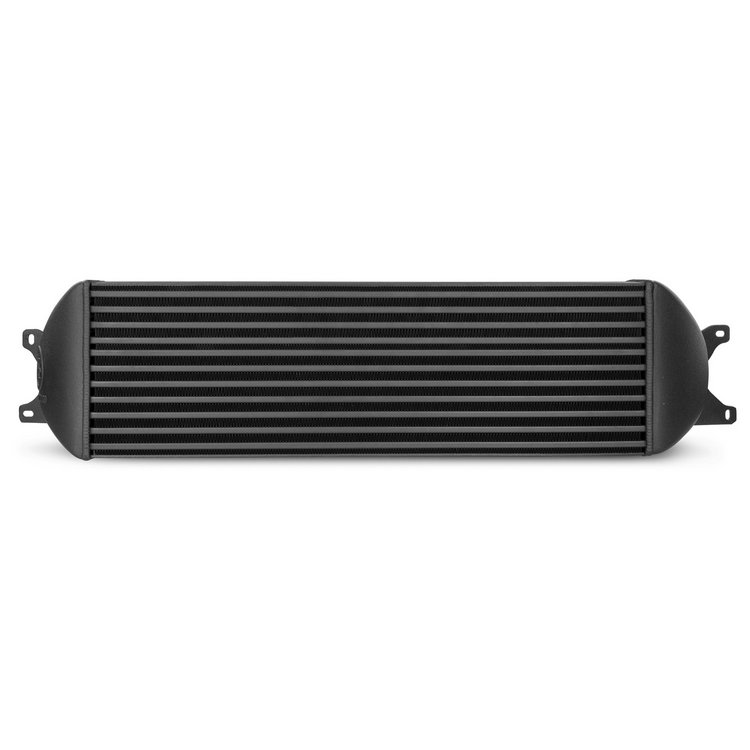

Measuring 580 mm x 150 mm x 135.4 mm + 580 mm x 62 mm x 70 mm (stepped intercooler: 14.3 liters), the Competition intercooler offers a flow area that is 44.3% larger and an impressive core volume that is 101.4% greater than the original intercooler.

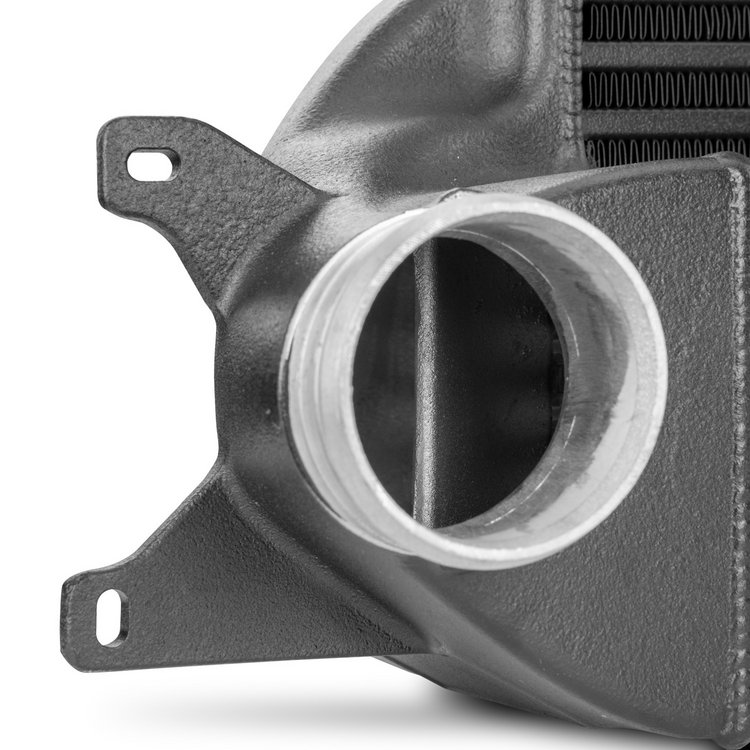

The cast aluminum end tanks are designed using the latest CAD technology and optimized through CFD simulations to ensure optimal internal airflow. The result is excellent cooling properties with minimal back pressure. The intercooler core allows sufficient airflow to adjacent components, such as the water radiator, through a custom air guide. This kit is perfect for racing applications and significantly improves the performance of charged air cooling.

The Wagner Tuning intercooler is equipped with a high-quality corrosion-resistant coating that provides excellent thermal conductivity and protects the intercooler from environmental effects. This ensures long-lasting and optimal cooling performance. Installation is straightforward with original mounting points. It comes with a TÜV certificate, ensuring compliance with legal requirements. Like all our products, this intercooler is subject to continuous quality control to meet the highest standards.

Applications:
Compatible with Hyundai Veloster N DCT 202KW/275hp (2021-).

OEM intercooler dimensions:
Volume = 7.1 L
Area = 79360 mm²

Wagner Tuning intercooler dimensions:
Volume = 14.3 L
Area = 114492 mm²
Weight = 9.3 kg

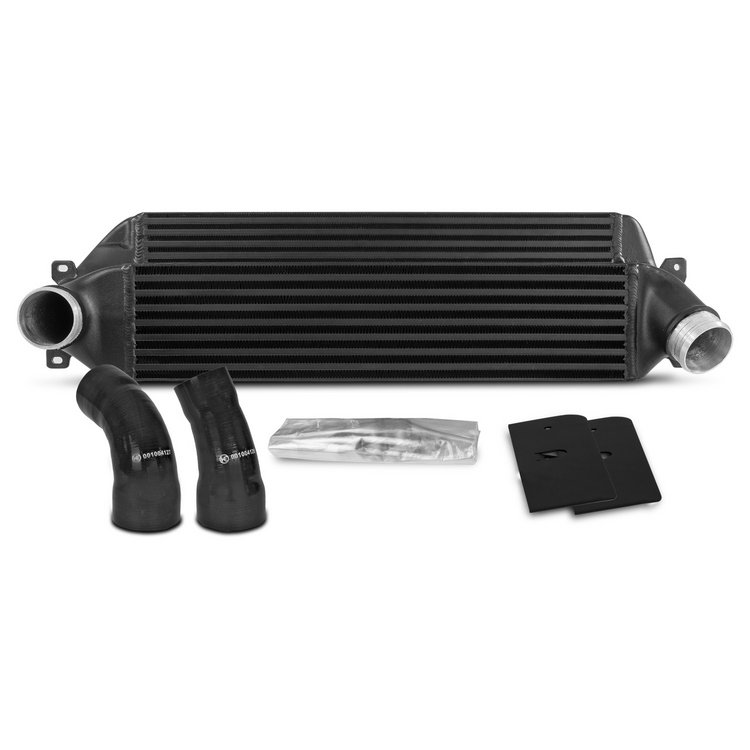

Included in the package:
– Intercooler
– 2x silicone hoses
– Air guide
– Mounting hardware

• Enhanced cooling performance
• 44.3% larger airflow area
• 101.4% greater net volume
• Plug & play installation
• High-quality corrosion-resistant coating
