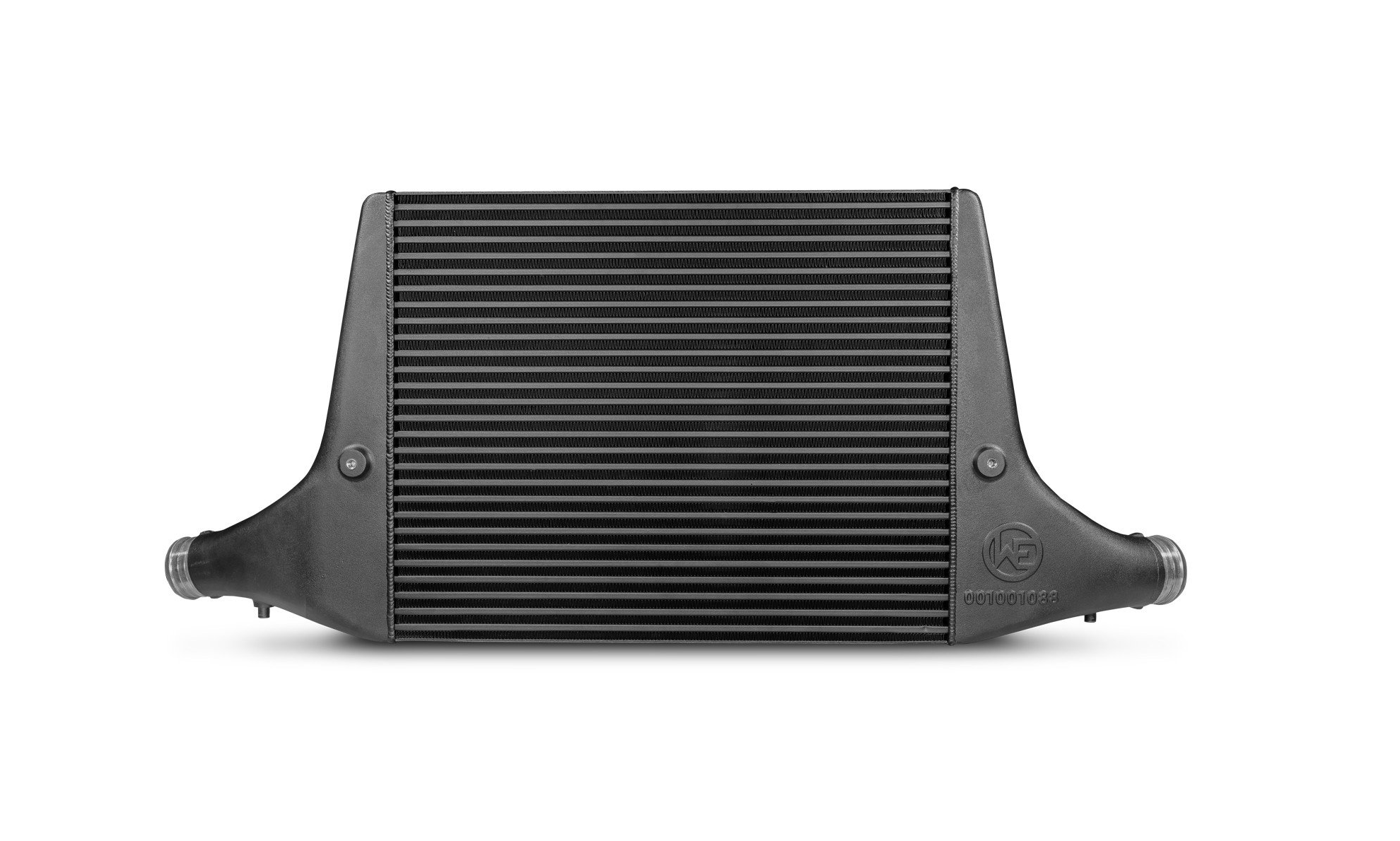

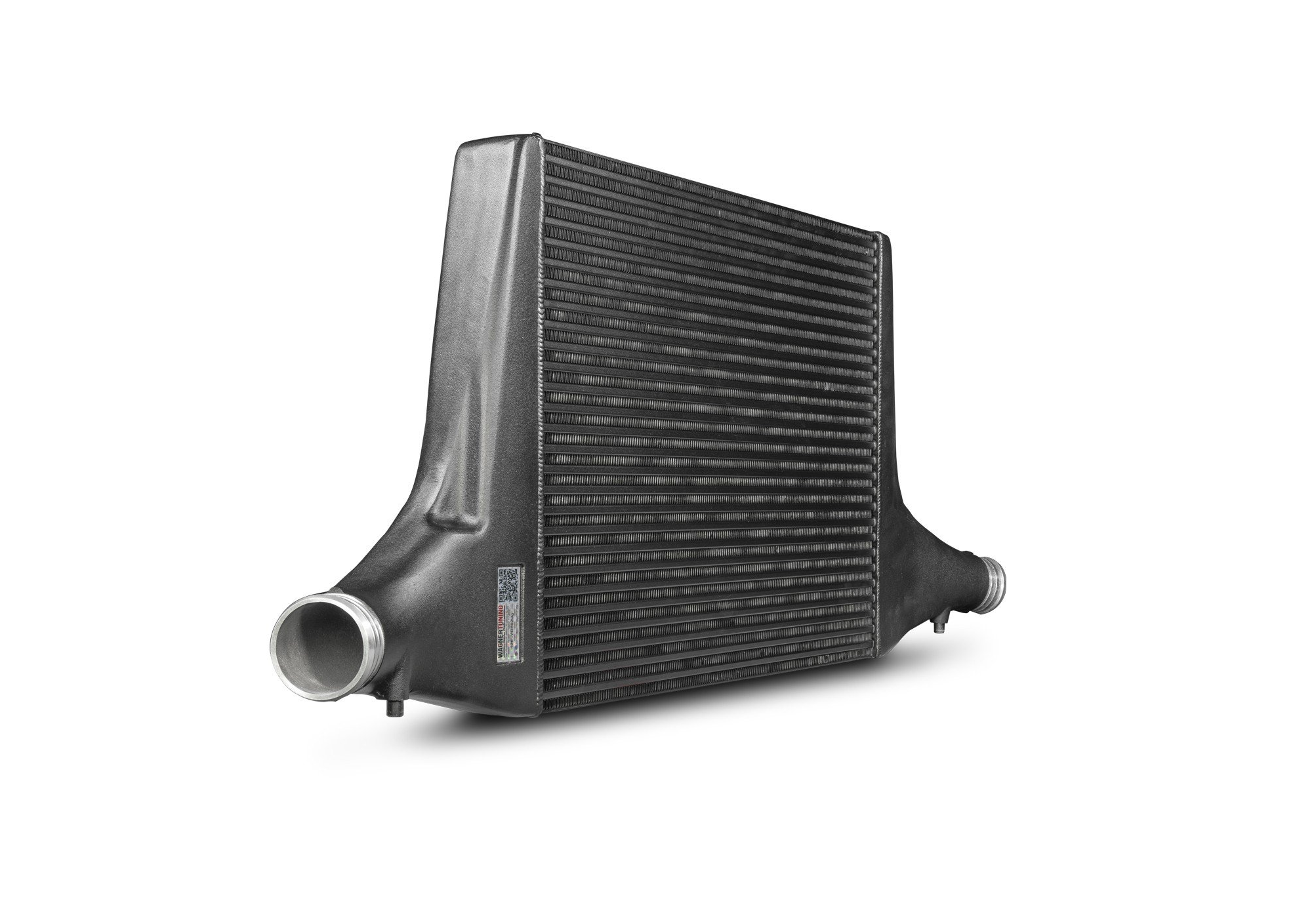

Wagner intercooler, Audi A6 / A7 (C8) 55TFSI 3.0L

Wagner Tuning Competition Intercooler Audi A6 / A7 C8 55 TFSI – 105% larger volume than OEM

A well-engineered intercooler upgrade for Audi A6 and A7 C8 55 TFSI models. The Wagner Tuning Competition intercooler is designed to improve cooling efficiency and keep intake temperatures under control, especially on tuned or more heavily driven vehicles.

The intercooler measures 550 mm x 445 mm x 70 mm and features a net volume of 17.13 liters. This results in 134% greater flow area and 105% more charge air volume compared to the factory unit. The larger and more efficient core helps reduce intake temperatures and minimize back pressure.

• Volume +105% compared to OEM
• Surface area +134% vs. factory intercooler
• Tube fin core design

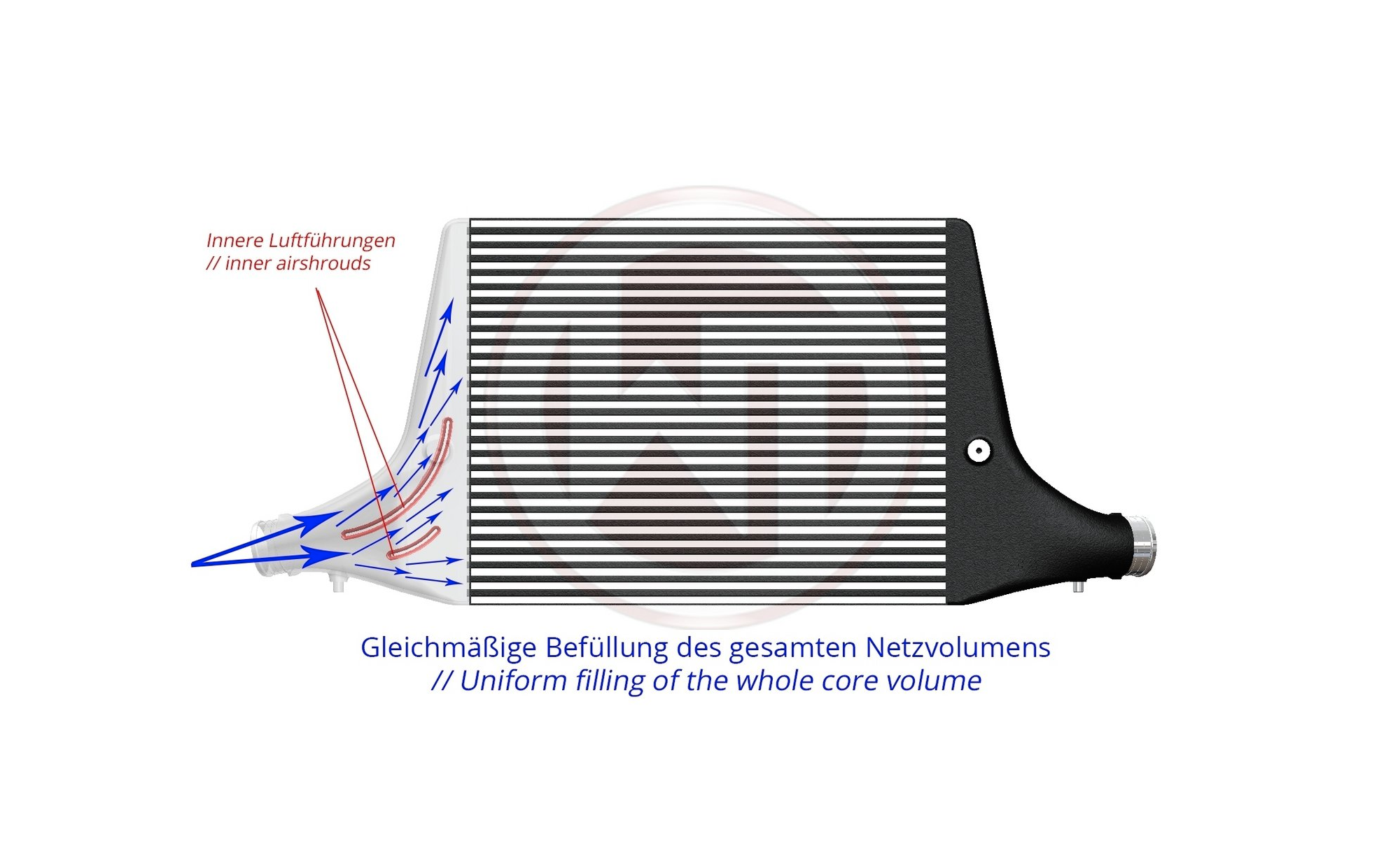

• CFD-optimized cast aluminum end tanks
• Lightweight construction, 9.5 kg
• Thermally conductive anti-corrosion coating
• All cores pressure tested to 6 bar
• Plug and play installation without structural modifications

Technical details

• Dimensions: 550 mm x 445 mm x 70 mm
• Flow area: 2447 cm² (OEM 1044 cm²)
• Net volume: 17.13 L (OEM 8.35 L)
• Weight: 9.5 kg
• Part number: 200001159

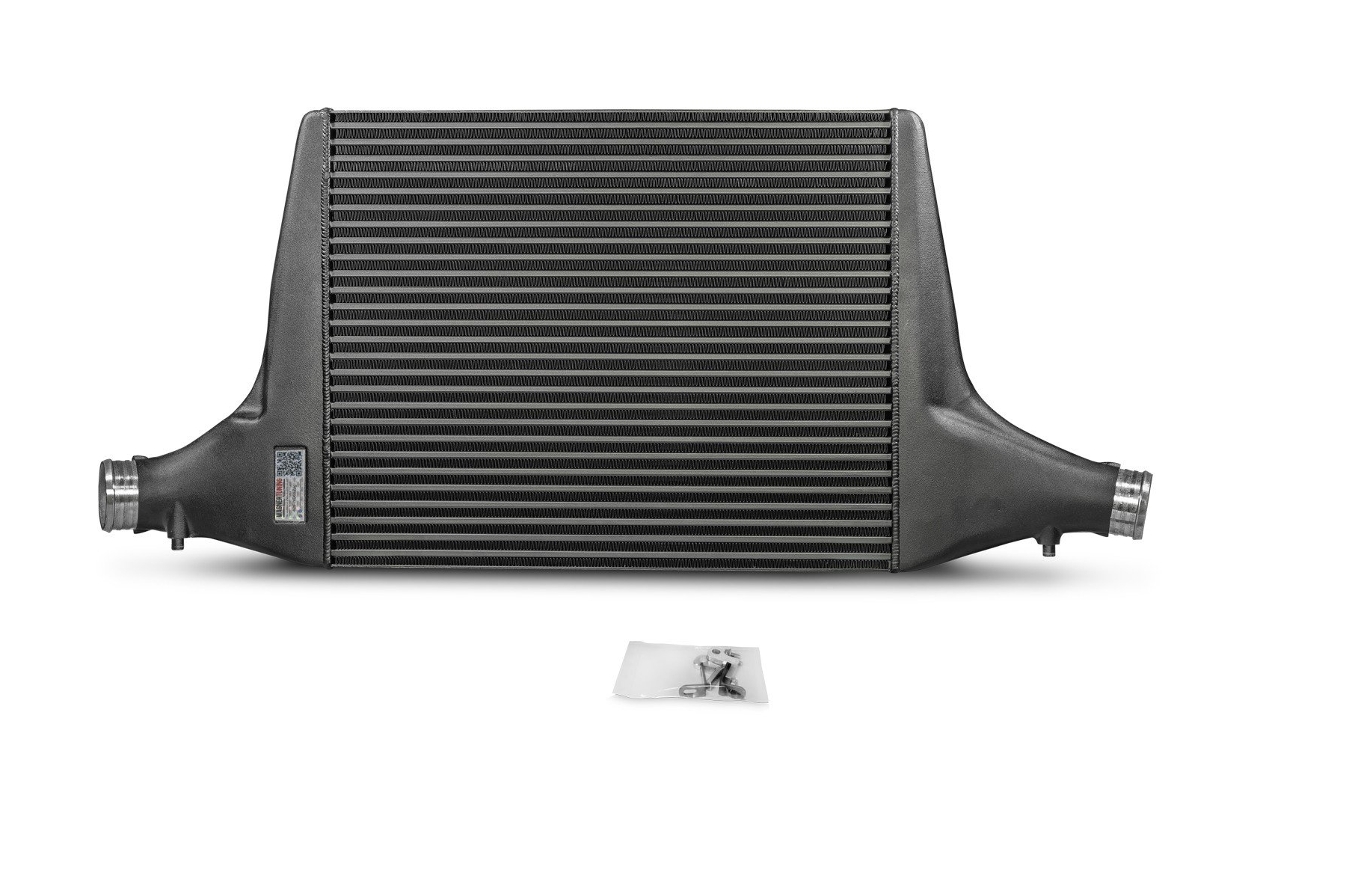

Kit includes

• 1 x black coated intercooler
• Mounting hardware
• Installation instructions

View the kit installation instructions here.

Vehicle compatibility

• Audi A6 C8 55 TFSI from 2019
• Audi A7 C8 55 TFSI from 2019
