Wagner Intercooler, BMW G3X B47 & B57

Optimize Your Performance with the Wagner Tuning Competition Intercooler.

Benefits of the Wagner Tuning Intercooler:

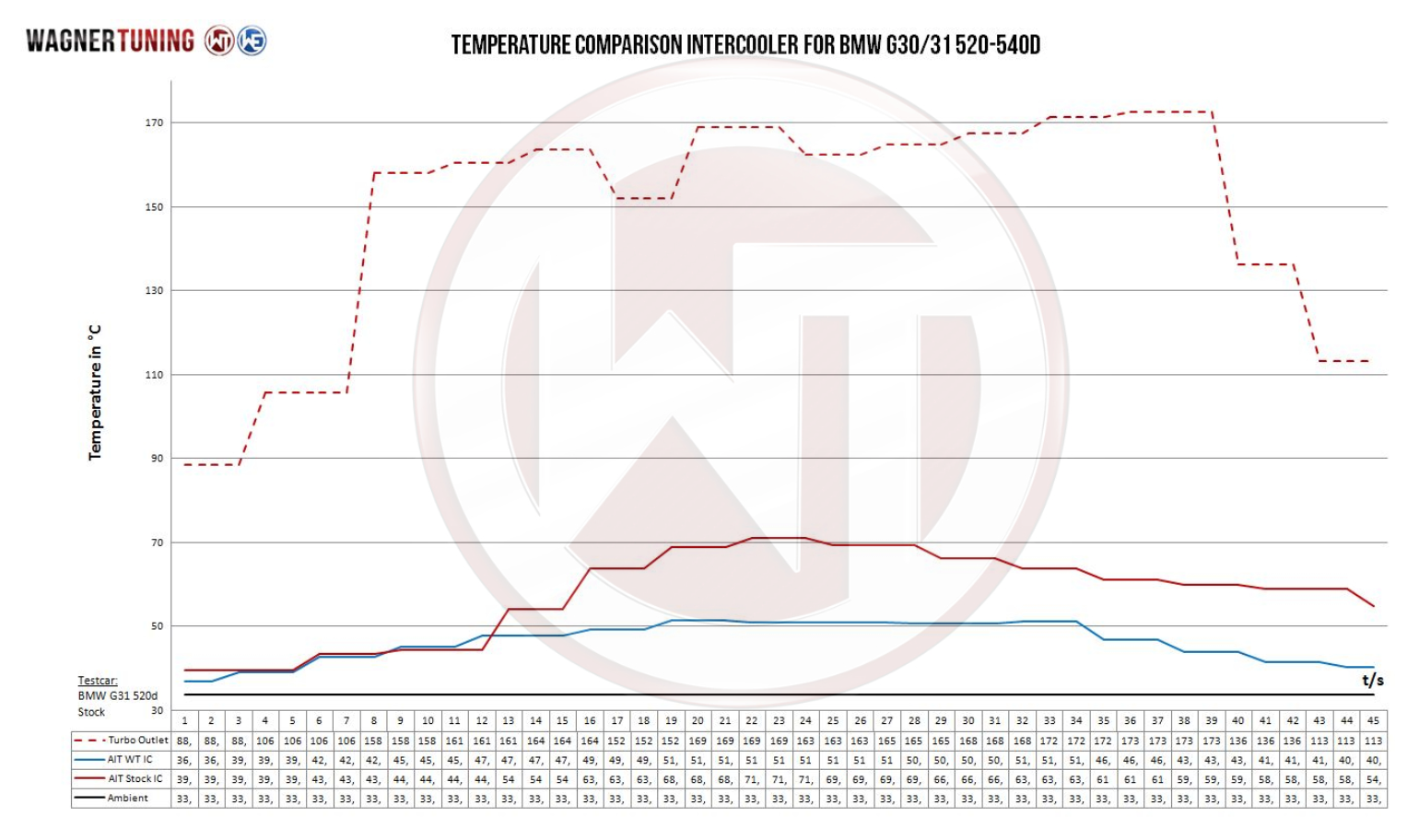

• Enhanced cooling efficiency
• 70% larger airflow area
• 112% greater charge air volume
• Weighs only 10.5 kg
• Optimized airflow

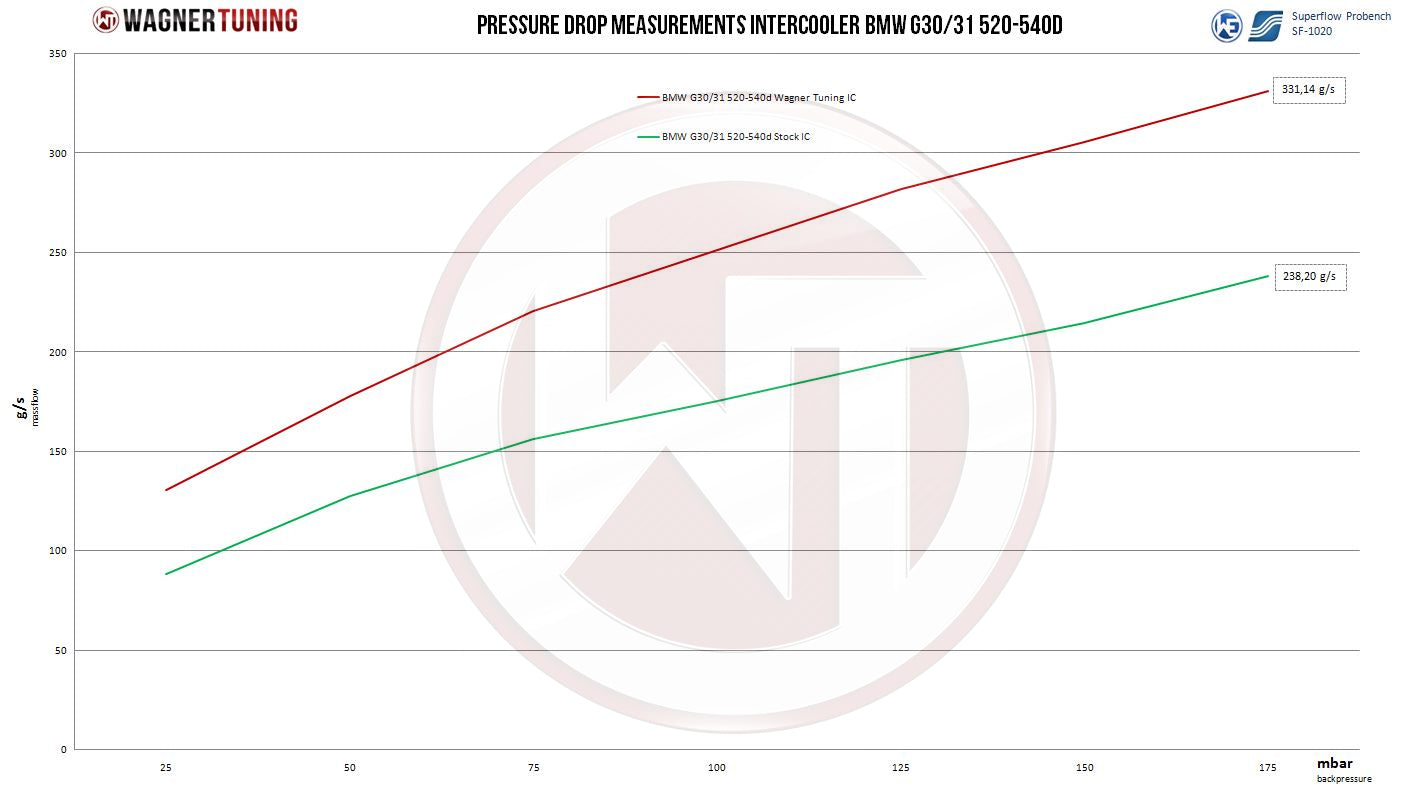

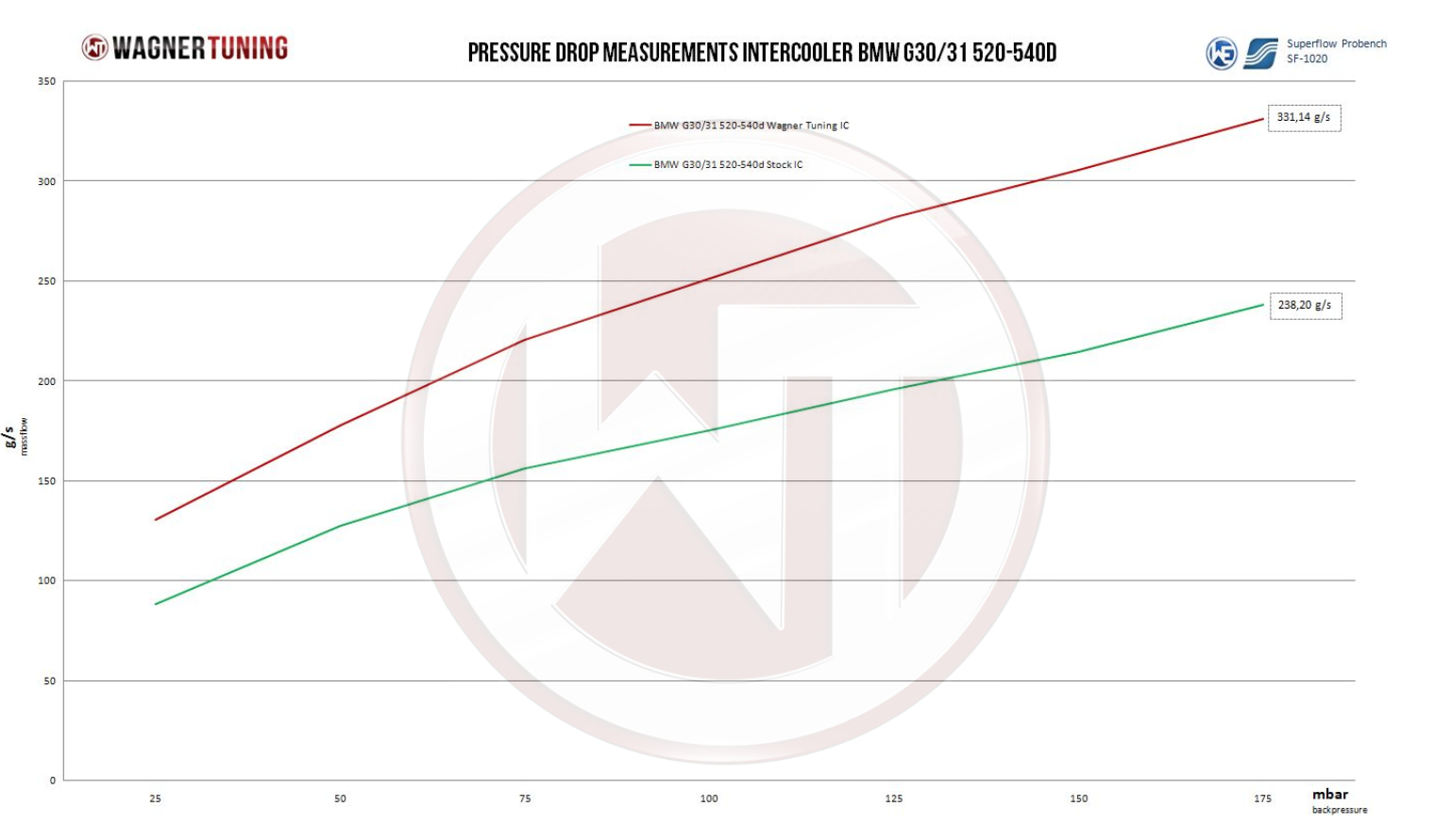

• Minimal back pressure
• Plug & Play installation

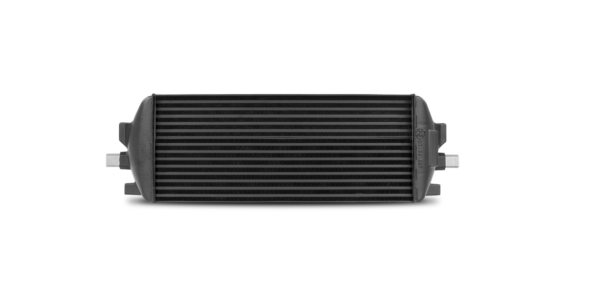

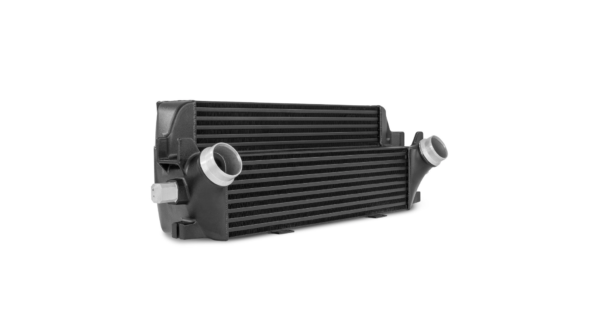

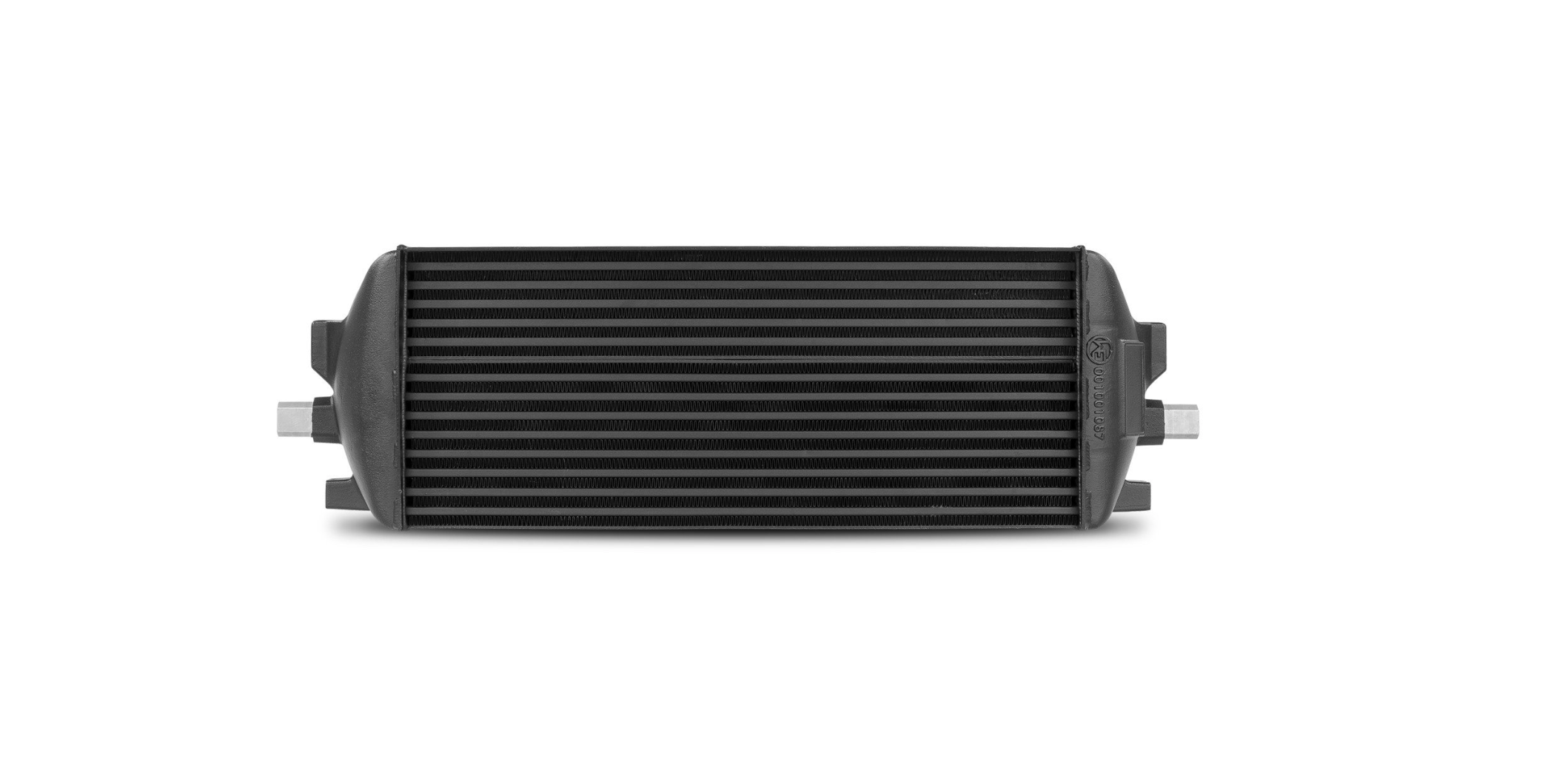

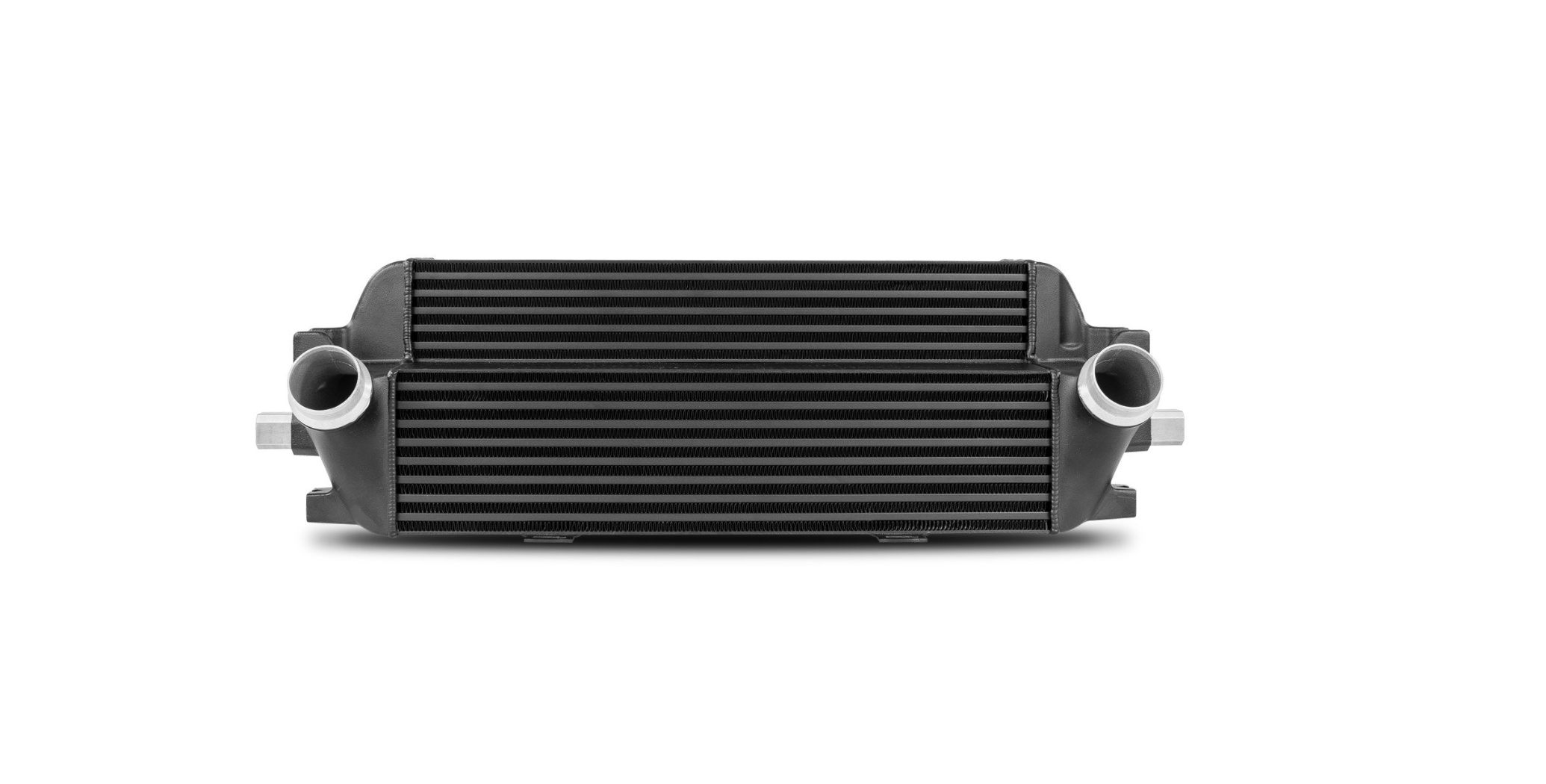

The Wagner intercooler sets new standards in performance. With dimensions of 570 mm x 236 mm x 150 mm (stepped), it boasts an impressive 70% larger flow area and a 112% increase in charge air volume compared to standard intercoolers. This upgrade significantly boosts power and enhances your overall driving experience.

Its core features a Tube Fin design with internal turbulators, ensuring optimal airflow and heat dissipation. Despite its size, the intercooler is lightweight at just 10.5 kg, allowing you to enhance your BMW’s performance without adding unnecessary weight, positively impacting driving dynamics.

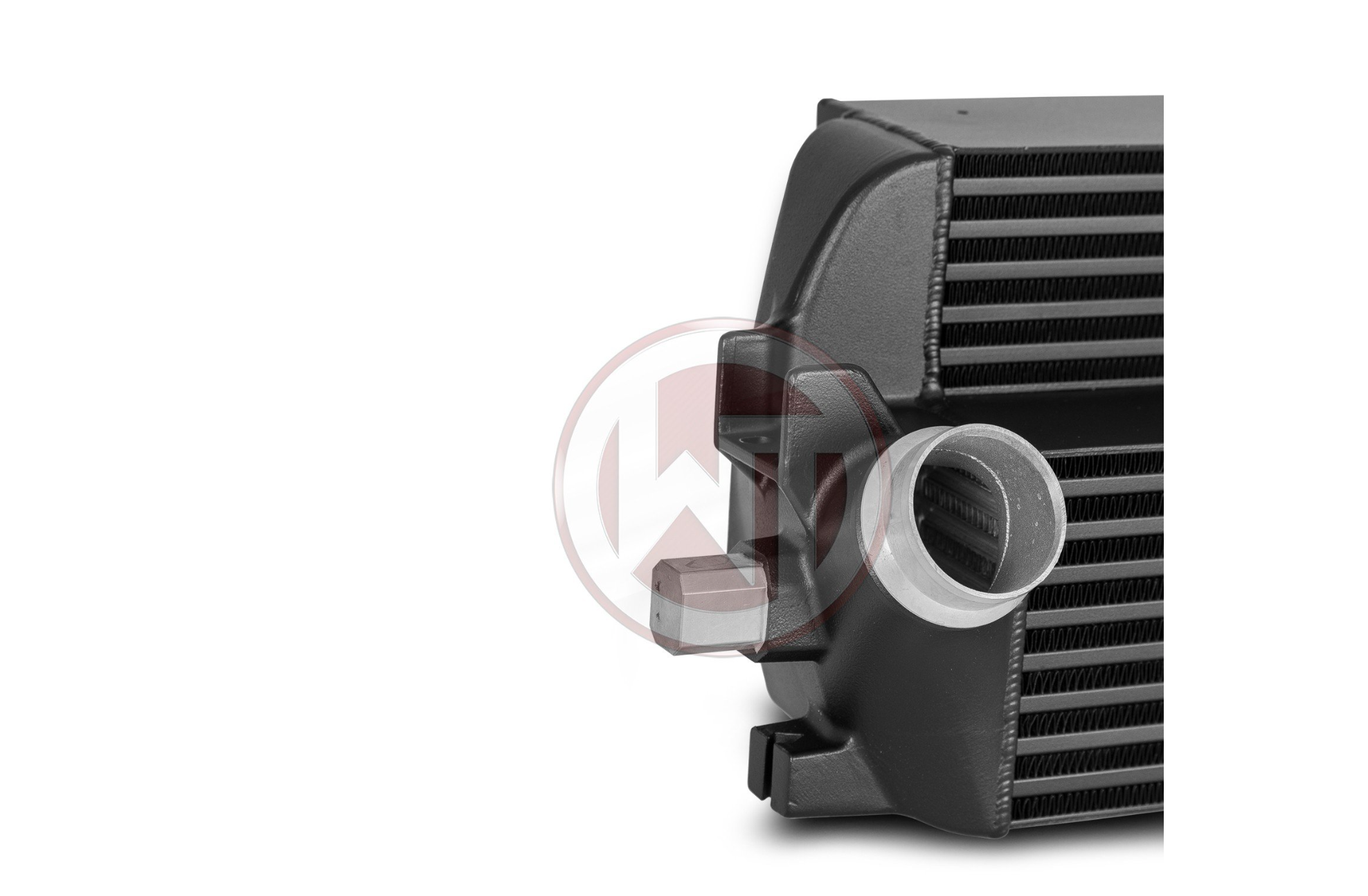

Thanks to CAD optimization, the aluminum end tanks of our intercooler provide excellent cooling performance with minimal back pressure, which is crucial for effective performance enhancement. Each intercooler is coated with a corrosion-resistant finish that not only prevents rust but also has heat-conductive properties, ensuring durable and optimal cooling that improves performance.

Compatibility:

• BMW G30/G31 518d Engine: B47 110KW/150PS (2018+)
• BMW G30/G31 520d Engine: B47 140KW/190PS (2017-2020)
• BMW G30/G31 525d Engine: B47 170KW/231PS (2017-2019)
• BMW G30/G31 530d Engine: B57 195-210KW/265-286PS (2017-07/2020)
• BMW G30/G31 540d Engine: B57 235-250KW/320-340HP (2017-07/2020)
• BMW G32 620d Engine: B47 140KW/190PS (2018-2020)
• BMW G32 630d Engine: B57 195-210KW/265-286PS (2017-07/2020)
• BMW G32 640d Engine: B57 235-250KW/320-340PS (2017-07/2020)
• BMW G11/12 740d Engine: B57 235-250KW/320-340PS (2017-07/2020)
• BMW G14/15/16 840d Engine: B57 235-250KW/320-340PS (2017-07/2020)

*Not compatible with facelift models with XD50 engine.
*Not compatible with facelift models produced after 07/2020.

OEM intercooler size:
545mm x 145mm x 96mm
Volume = 7.6 liters
Area = 790 cm²

Wagner Tuning size:
570mm x 236mm x 150mm / stepped
Volume = 16.2 liters
Area = 1345 cm²

Included in the package:
– Intercooler
– Installation instructions
