Wagner Intercooler Kit, Renault Renault Megane 4 RS (Trophy)

Benefits of the Wagner Tuning Intercooler:
– Enhanced cooling performance
– 79% larger external air net volume
– Weight: 8.1 kg
– Optimized airflow
– Inlet diameter: Ø64mm (same as OEM) and outlet diameter: Ø60mm (same as OEM)
– Plug & Play installation

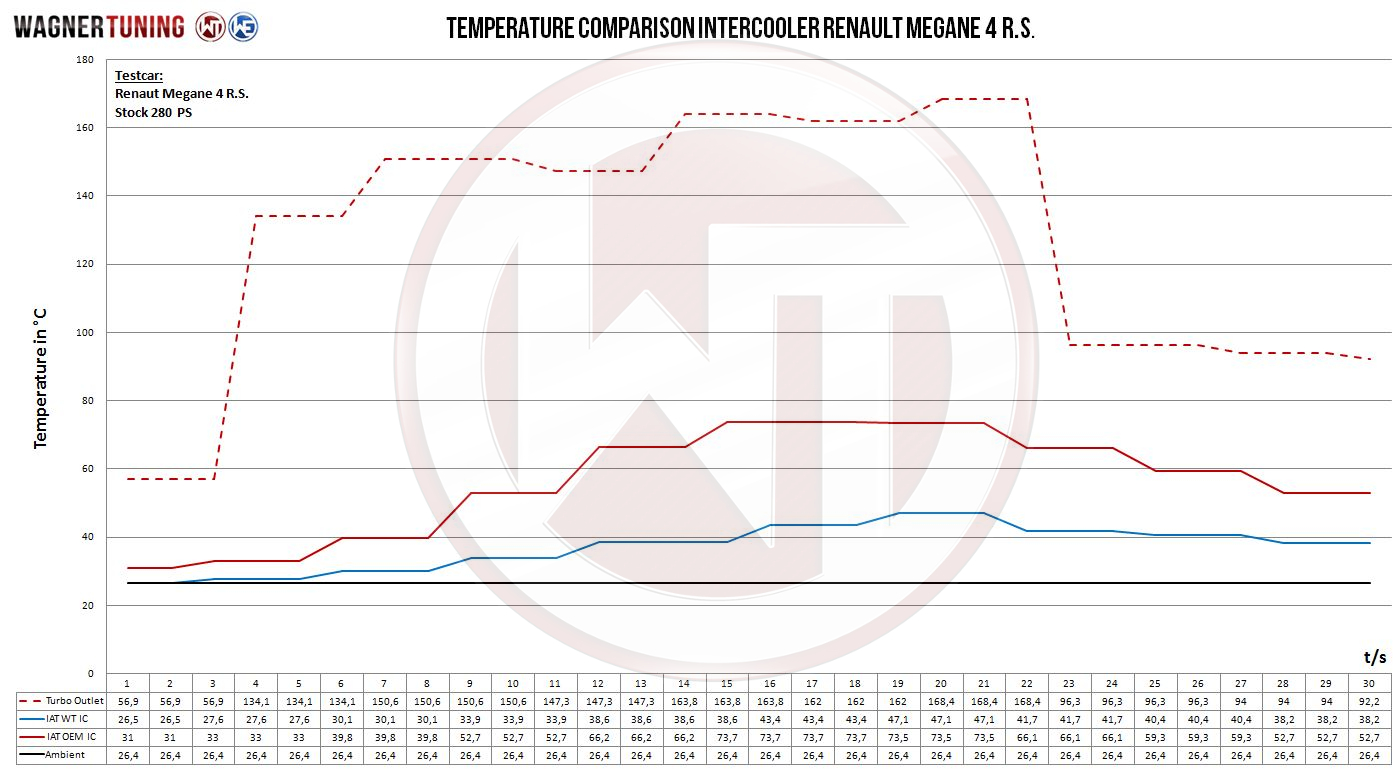

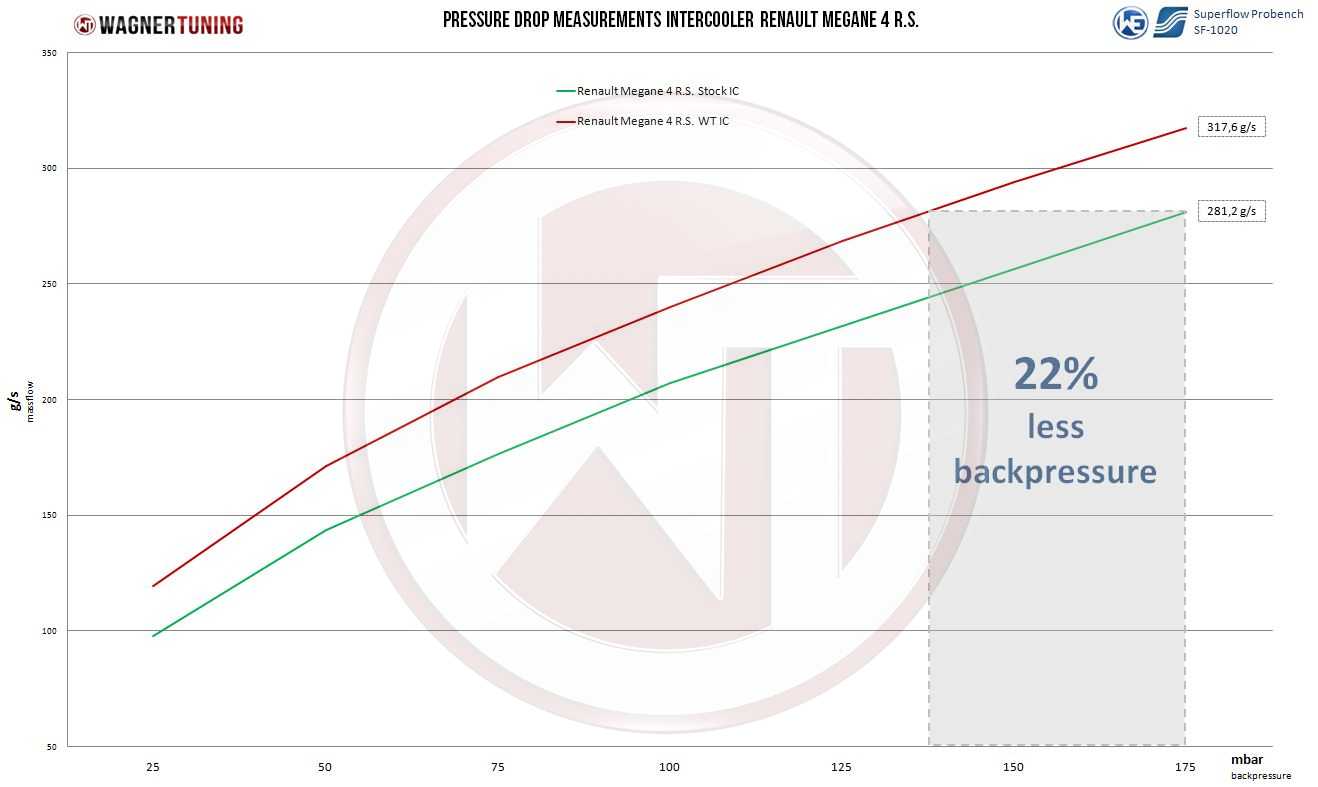

The Renault Megane 4 R.S. (Trophy) deserves the best, and that’s exactly what the Wagner Tuning intercooler delivers. Featuring a revolutionary Competition core (Tube Fin), it measures 315 mm x 227 (142) mm x 165 (150) mm (stepped), leading to a generous 11.4-liter external intercooler. The result? A 6% larger flow area at the front and an impressive 47% more core volume compared to the OEM intercooler. Our cast aluminum end tanks are meticulously designed using CAD and enhanced with CFD simulations for optimal internal airflow. The outcome? Exceptional cooling performance with minimal back pressure. This kit is specifically designed for racing applications to ensure optimal cooling of charged air and significant performance gains.

Maximum protection and easy installation! Our intercoolers come with a corrosion-resistant coating that not only protects against environmental effects but also boasts excellent thermal conductivity. This means long-lasting and optimal cooling effects, ensuring your vehicle performs at its best. Installation is straightforward, utilizing the original mounting points, thanks to the plug and play principle. Quality is our top priority – all our products undergo continuous quality control.

Trust in performance and quality! The Renault Megane 4 R.S. (Trophy) deserves nothing but the best, and with the Wagner Tuning Competition Intercooler Kit, you’ll achieve just that.

Specifications:
Inlet diameter: Ø65 mm / 2.56 Inch: Outlet diameter: Ø67.2 mm / 2.64 Inch (stock click-connection)

OEM intercooler dimensions:
290 mm x 233 mm x 115 mm / 11.4 Inch x 9.2 Inch x 4.5 Inch
Volume = 7.77 L / 474 Inch³
Area = 675 cm² / 104.6 Inch²

Wagner Tuning intercooler dimensions:
315 mm x 227 (142) mm x 165 (150) mm (stepped) / 12.4 Inch x 8.9 (5.6) Inch x 6.4 (5.9) Inch (stepped)
Volume = 11.4 L / 696 Inch³
Area = 715 cm² / 110.8 Inch²

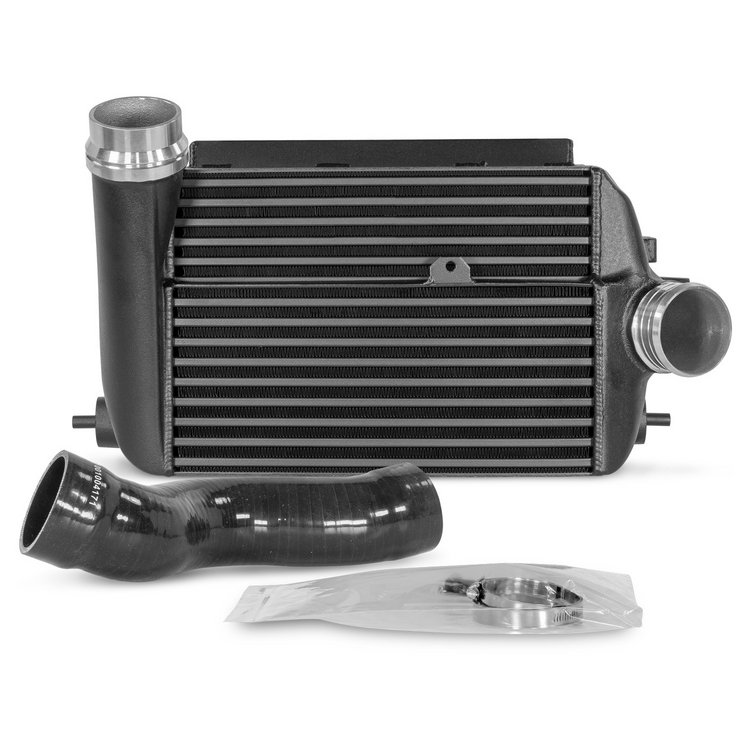

Included in the package:
– Intercooler
– Silicone hose
– Mounting hardware + installation instructions

Key Features:

Applications:
Compatible with Renault Megane 4 R.S. (Trophy)
