Wagner Radiator Kit, BMW S55 M3/M4

Competition Radiator Kit for the BMW F80-82-83 M3/M4

If you’re a fan of the BMW M3 or M4, you know that the 3.0 Liter S55B30 turbo engine is a beast. It features an indirect charge-air cooling system that uses its own cooling water circuit instead of relying on ambient air. This means that keeping the cooling water temperature down directly improves the performance of the charged air. That’s where the WAGNERTUNING upgrade water cooler shines.

The newly developed competition racing cores from WAGNERTUNING boost the radiator volume significantly—by 89% for front-mounted and 94% for side-mounted setups compared to the OEM coolers. The design maximizes heat transfer while ensuring sufficient airflow for other components, like the engine water cooler, to do their job effectively. Plus, these coolers come with a heat-conductive anti-corrosion coating for long-lasting performance. Installation is a breeze with the included plug & play setup and instructions.

Dimensions:

OEM Front Mounted Radiator:
590 mm x 308 mm x 25 mm / 23.2 Inch x 12.1 Inch x 1.0 Inch
Volume: 4.5 Liter
Area: 1817 cm² / 280.7 Inch²

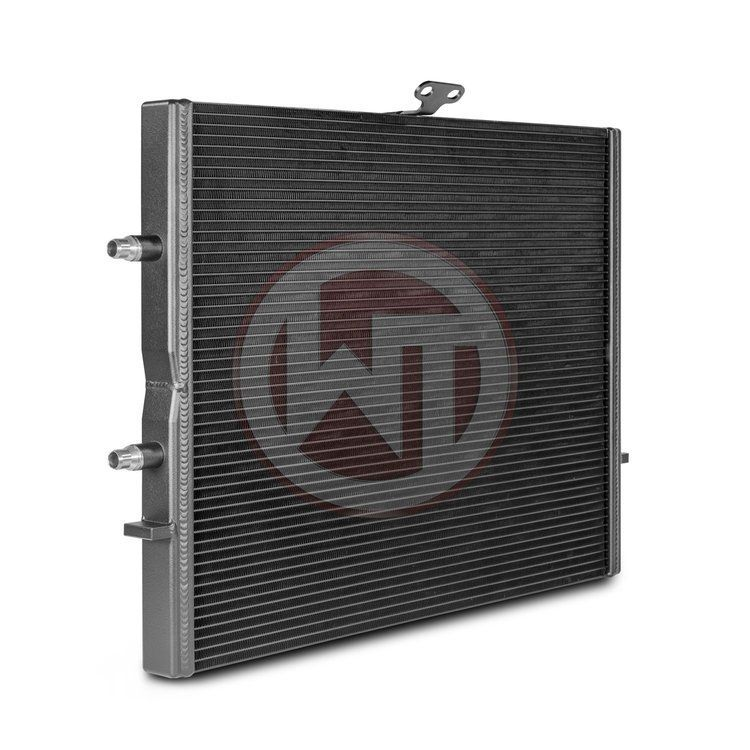

WT Front Mounted Radiator:
568 mm x 468.4 mm x 32 mm / 22.4 Inch x 18.4 Inch x 1.26 Inch
Volume: 8.5 Liter (+89%)
Area: 2660.5 cm² / 412.2 Inch² (+46.4%)

OEM Side Mounted Radiator:
250 mm x 165 mm x 40 mm / 9.8 Inch x 6.5 Inch x 1.6 Inch
Volume: 1.65 Liter
Area: 412.5 cm² / 63.7 Inch²

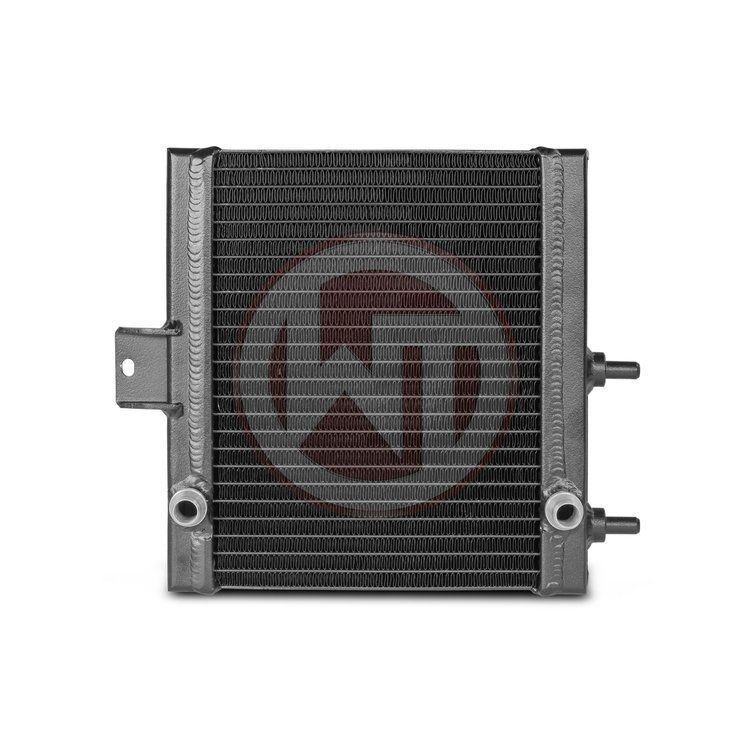

WT Side Mounted Radiator:
252 mm x 188 mm x 68 mm / 9.9 Inch x 7.4 Inch x 2.7 Inch
Volume: 3.2 Liter (+94%)
Area: 473.8 cm² / 73.3 Inch² (+14.9%)

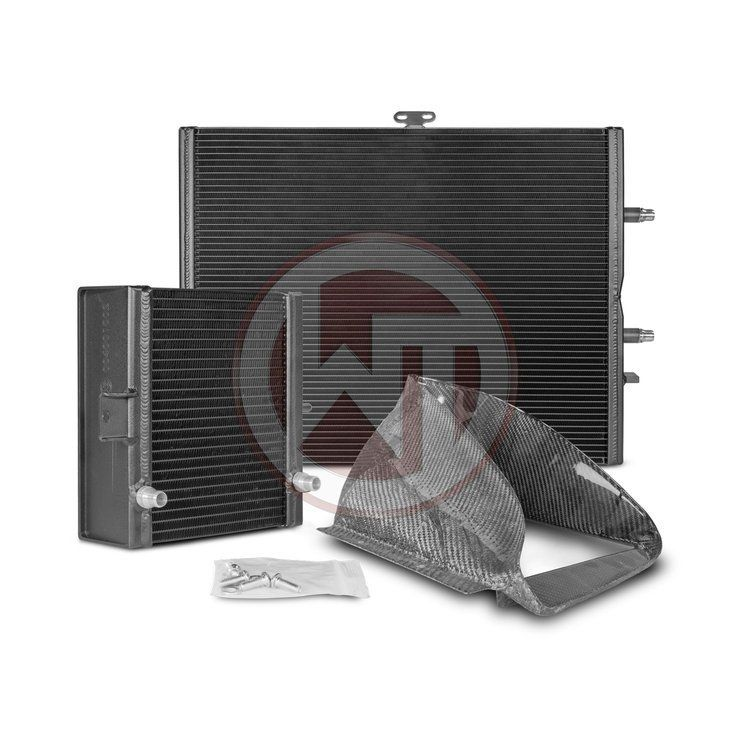

Kit Includes:
1x Front Mounted Radiator (low-temperature circuit)
1x Side Mounted Radiator (low-temperature circuit)
1x Carbon Air Shroud for Side Mounted Radiator
1x Mounting Material
1x Installation Instruction

Key Features:

• Increased radiator volume for better cooling performance
• Heat-conductive anti-corrosion coating
• Plug & play installation with included instructions
• Optimized airflow for surrounding components

Applications:
Compatible with BMW F80, F82, and F83 M3/M4 models.
