034 S34 Carbon Intake, VW Mk8 Golf R / Audi 8Y S3 EA888 Gen4

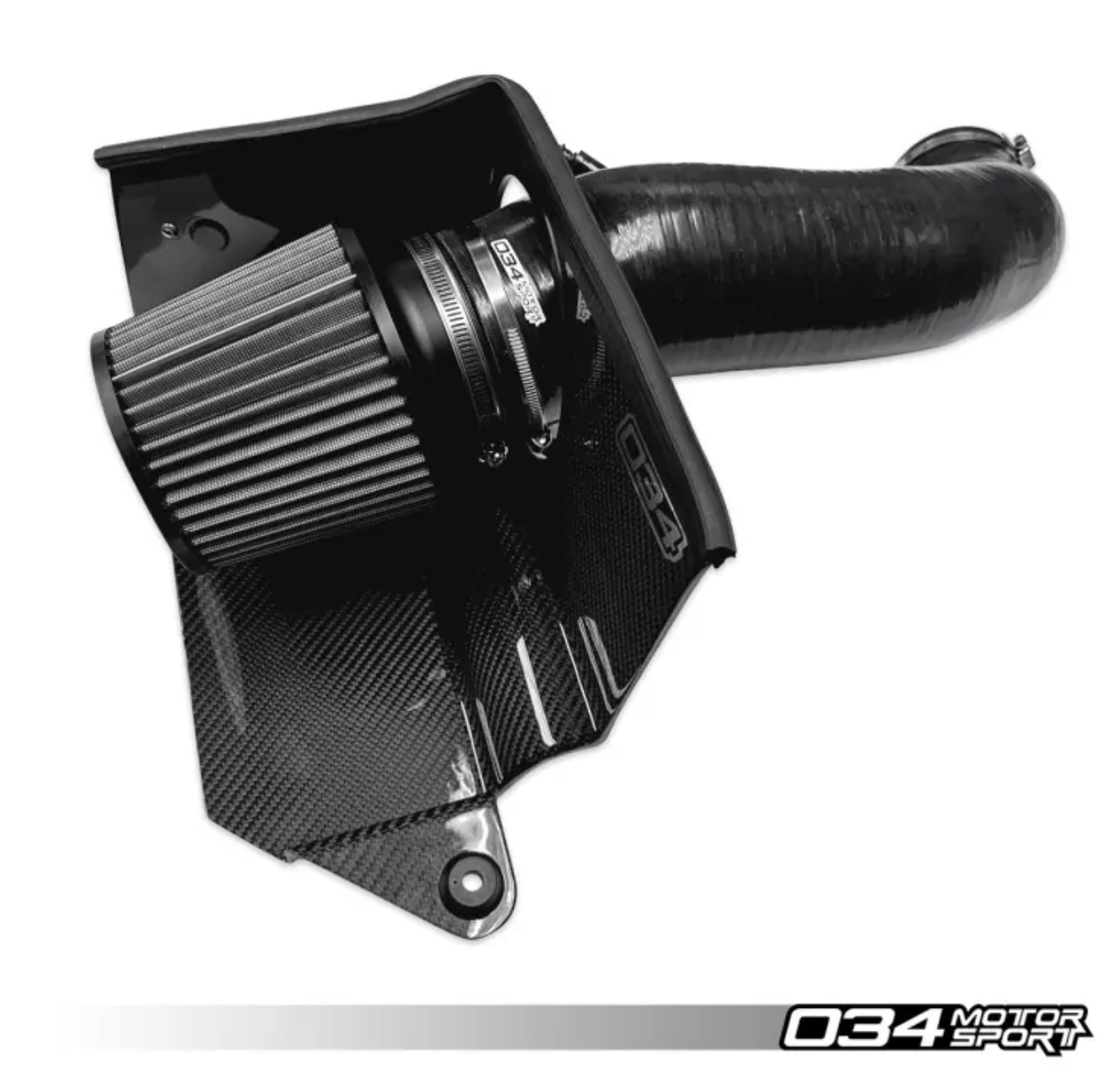

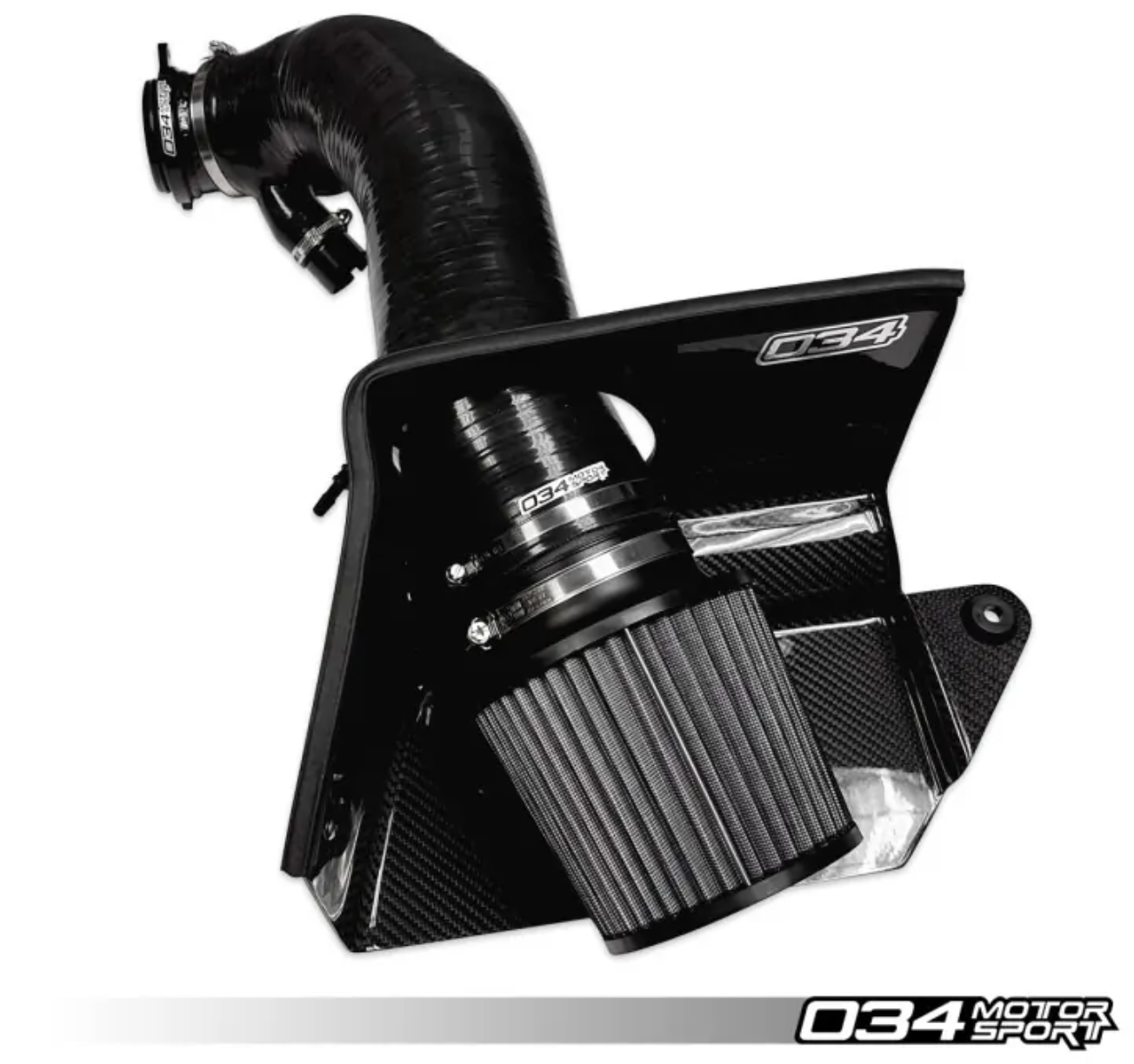

034Motorsport S34 Carbon Fiber Intake for EA888 Gen 4 engines, full kit with turbo inlet and silicone hose

The 034Motorsport S34 Carbon Fiber Intake is a high performance intake solution for EA888 Gen 4 MQB Evo engines. This Full Kit includes the carbon fiber airbox assembly together with the turbo inlet pipe and inlet hose, allowing airflow to be optimized from the filter all the way to the turbocharger compressor.

The system is designed to increase engine airflow, improve throttle response, and enhance intake sound. The optimized open airbox design uses the factory fresh air duct to channel cool ambient air directly to the filter while reducing heat soak from the engine bay.

• Full kit includes intake system, turbo inlet, and silicone inlet hose
• Carbon fiber heat shielded airbox construction
• CFD optimized multi layer silicone inlet hose
• Large 4 inch cone filter with dual layer cotton filtration element

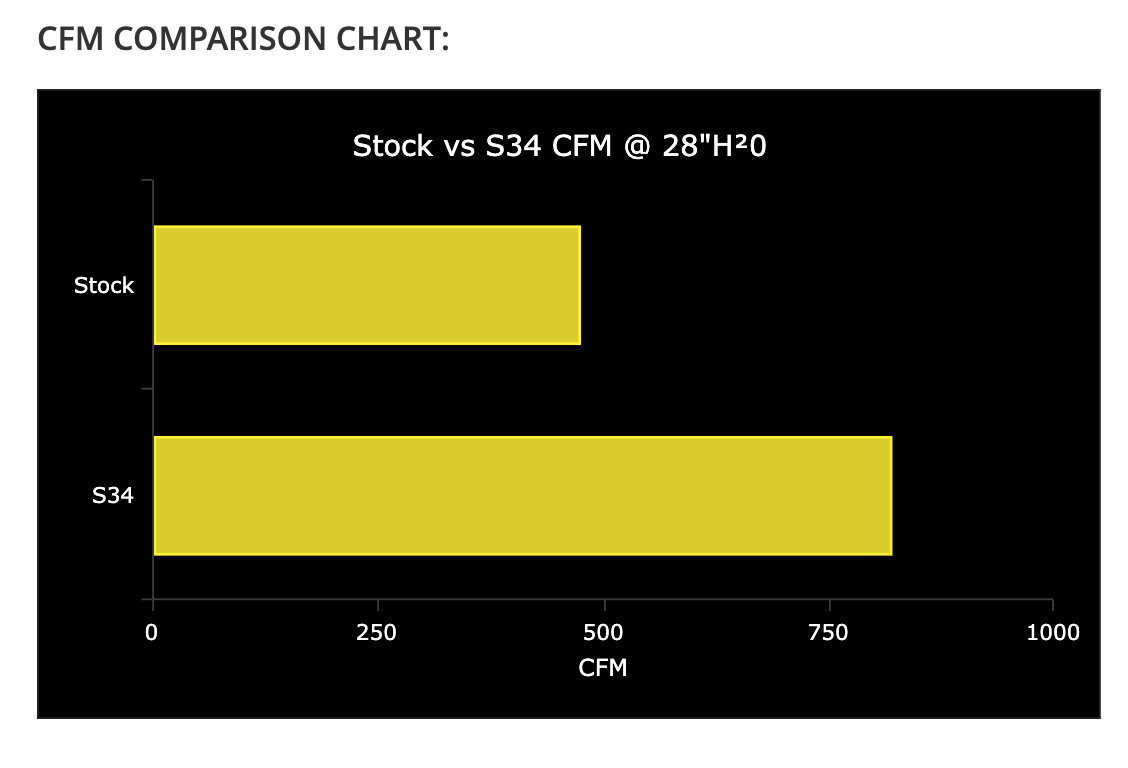

• Improves airflow compared to the factory intake system
• Improves throttle response and intake sound
• Maintains OEM level filtration efficiency

What this intake changes in real world use

The S34 intake is designed to minimize airflow restriction around the filter. If airflow cannot move freely around the filter element, total airflow through the filter is also reduced. In this system, the filter size and enclosure are engineered to work together to maximize airflow. The result is improved airflow to the turbocharger and better performance in tuned applications.

The large cone filter provides a very large filtration surface area and is capable of capturing extremely small particles while maintaining strong airflow capacity. The filter design has been tested in high power applications without creating significant airflow restriction.

Construction and design

The intake uses a CFD modeled silicone inlet pipe which replaces the restrictive factory accordion style plastic hose. This helps maintain smooth airflow and reduces restriction. The carbon fiber heat shield helps prevent hot engine bay air from reaching the filter.

The turbo inlet pipe uses a CNC machined aluminum adapter ring that creates a smooth transition into the turbocharger compressor inlet. The adapter uses an O ring seal and allows compatibility with future hybrid turbocharger upgrades by swapping the adapter ring if needed.

Full Kit includes

• S34 Carbon Fiber heat shield
• S34 silicone inlet hose
• S34 performance cone air filter
• Turbo inlet pipe
• Required adapters and mounting hardware

Example compatible models

• Volkswagen Golf Mk8 R
• Audi S3 8Y
