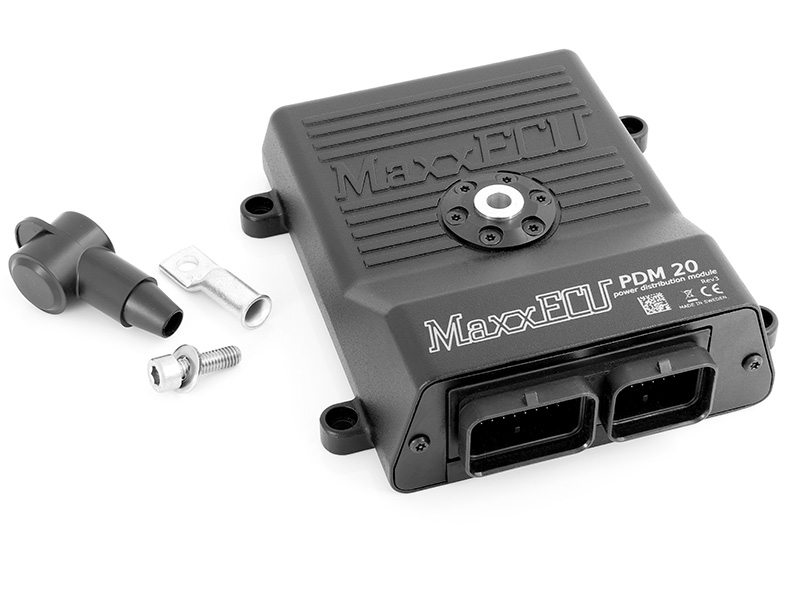

MaxxECU PDM20 – Intelligent Power Distribution Module

MaxxECU PDM20 is a modern, intelligent power distribution module designed to replace traditional fuses and relays in high-performance vehicle electrical systems. It is ideally suited for motorsport, track cars, and advanced street builds where reliability and control are critical.

The PDM20 is controlled via CAN bus and integrates seamlessly with MaxxECU engine management systems. All outputs are fully configurable in software, allowing complete control over power delivery, protection logic, and operating conditions without mechanical fuses or relays.

With 20 individually controlled outputs, the PDM20 can manage fuel pumps, ignition systems, cooling fans, lighting, solenoids, and other vehicle electronics. Integrated current monitoring provides real-time feedback for each output, greatly simplifying diagnostics and improving system safety.

Key Features

• 20 programmable outputs with electronic fuse and relay functionality
• CAN bus control – fully compatible with MaxxECU systems
• Overcurrent and short-circuit protection on every output
• Real-time current monitoring and logging
• Reduces wiring complexity and increases reliability
• Ideal for motorsport, track cars, and advanced performance builds

The PDM20 enables a clean, lightweight, and highly reliable electrical system, eliminating the limitations of traditional fuse and relay panels.
