Motiv ReFlex Plus installation harness

Wiring harness for Reflex+ power and sensor connections. This harness is included with all Reflex+ packages we supply, but if you are moving the unit from one vehicle to another or need an additional harness as a spare, it is available here.

The flying lead harness is a universal set with open wire ends, meaning it comes without pre-terminated connectors.

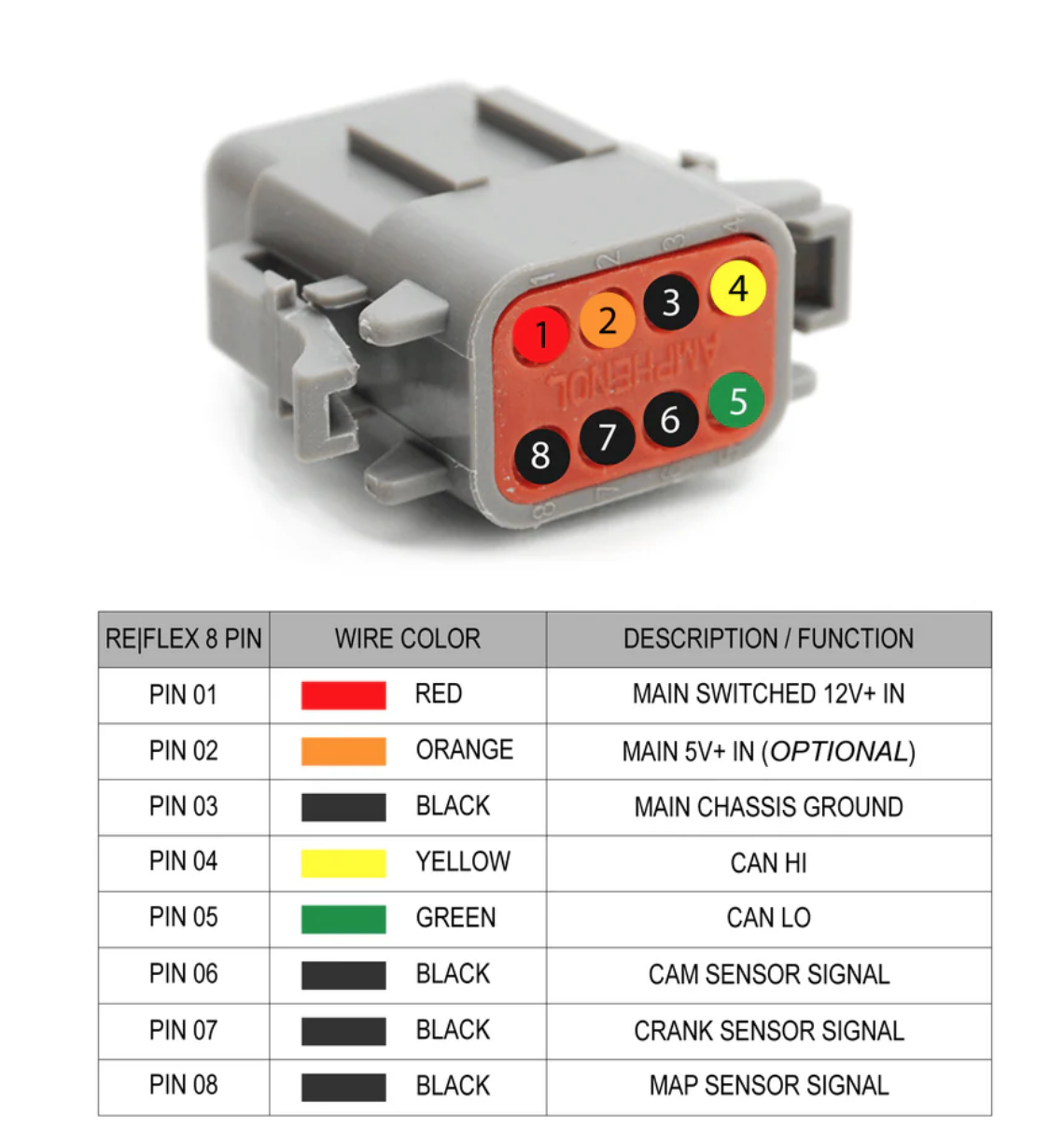

At the end of the harness is an 8-pin Motiv connector that plugs directly into any ReFlex+ main injector harness.

The harness includes the following channels:

• Switched +12 V input with integrated inline fuse
• +5 V input
• Ground
• CAN High
• CAN Low
• Camshaft sensor signal
• Crankshaft sensor signal
• MAP sensor signal
