BAR-TEK ULTI forged engine kit, VAG 2.0L EA888 Gen3 MQB

Strong and affordable bundle of forged internals for EA888.3 MQB engines. If you’re aiming for a high power application (+500hp and beyond, this ULTIMATE Kit includes everything you need to keep your engine happy up to 1000 HP if needed.

This kit offers a balanced combination of forged pistons, connecting rods, connecting rod screws, connecting rod bearings, head gasket and stud bolt – all of this for very affordable package pricing when bought together.

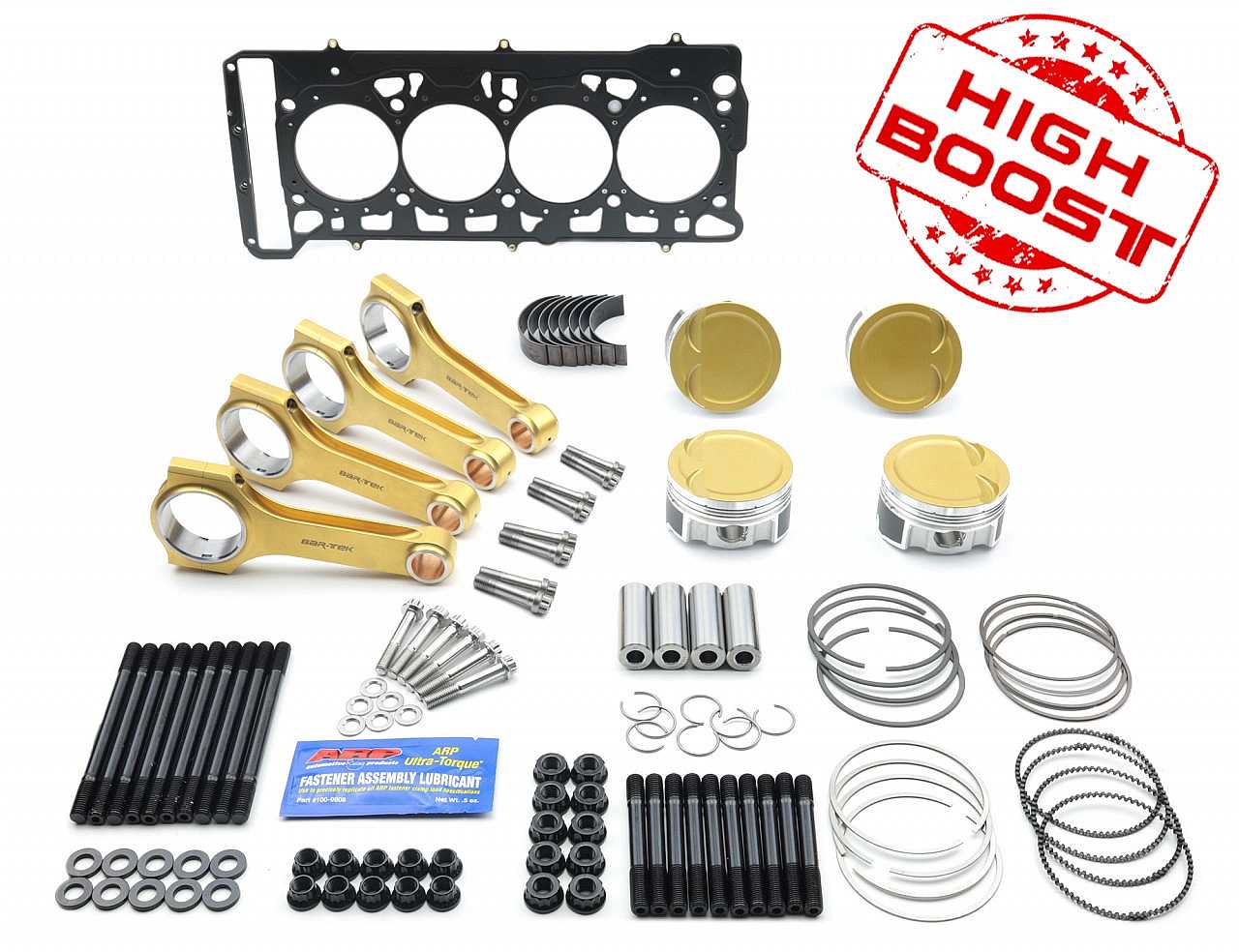

What’s included?
BAR-TEK® H-Shaft steel connecting rods are titanium riveted, which is why they shine gold. Together with these rods, your trusted pistons are made from Italian RP Pistons and equipped with strong Heavy Duty piston pins for high boost. The rest of it are parts we all know: obviously ARP connecting rod bolts and head studs, connecting rod bearings from ACL, and MLS head gasket from Cometic.

Check your engines tolerances, make sure to start with properly machined gasket surfaces and clearances, and you are good to go chasing those heavy numbers.

• Forged IRP Pistons with extra coating and strong piston pins
• Titanium-nitrided steel connecting rods from BarTek, able to handle high pressure loads, milled from solid. (Rifle drilling included)
• ARP fasteners (rods, head studs)
• Cometic MLS Head gasket
• ACL Race bearings to withstand maximal load at the bearing department

---

Closer details of included parts

IRP FORGED PISTONS

Extremely light due to special alloy
Reinforced for maximum performance
Sizes starting from the standard bore 82,50 mm
Stock compression ratio by default (you can ask for higher or lower if needed)
21 mm strong piston pin
Installation and drilling dimensions enclosed

Bar-Tek Titanium steel conrods

Titanium-nitrided
high strength milled from the solid
suitable for extreme power increases of 1000 HP
extremely light and very stable
Magnaflux inspected
4 pieces per set
Dimensions: 144 x 21 mm
Weight per conrod with screws only about 600 grams
With oil channel for piston pin lubrication (Rifle Drilled)
Precisely angled and tested
WITH ARP 2000 expansion screws 3/8″

ACL Race Bearings

Hard multi-layer design to withstand maximal load
Extra coated
Extra bore for the piston pin

ARP fasteners

A MUST for all engines that run with increased charge pressure.
There is no competition for market leader ARP
The stud bolt are made from 8740 Chromoly steel and have rounded thread
Up to 40% stronger stretch steel than stock bolts
All ARP high performance bolt kits include ARP paste
Additional ARP bolts for the bearing blocks

Cometic MLS gasket

Multi-layer metal head gasket
Stock thickness for optimum compression ratio of 9.5:1
Suitable for all 2.0L TSI EA888 engines with chain as installed in Golf 7, Audi TT, Audi A3, Leon Cupra and many other 2.0L TSI engines of the third generation

Other recommendations:

We recommend to reinforce the valve train with valve springs and Ferrea valves. By doing so, you can safely use slightly increased rev limiter well above 7k rpm!

---

Examples of compatible Audi, Seat, Volkswagen, Skoda engine codes
CAEA 180 PS (133 kW), CAEB 211 PS (155 kW), CDNB 180 PS (132 kW), CDNC 211 PS (155 kW), CHHA 230 PS (169 kW), CHHB 220 PS (162 kW), CHHC 230 PS (169 kW), CJXA 280 PS (206 kW), CJXC 360 PS (265 kW), CJXE 265 PS (195 kW), CJXG 310 PS (228 kW), CJXH 290 PS (213 kW), CVKB 190 PS (140 kW), CVLA 170 PS (125 kW), CWZA 231 PS (170 kW), CYRB 252 PS (185 kW), CZPA 180 PS (132 kW), CZPB 190 PS (140 kW), DAXB 252 PS (185 kW), DEDA 220 PS (162 kW), DJHA 310 PS (228 kW), DJHC 280 PS (206 kW), DKTA 230 PS (169 kW), DKTB 245 PS (180 kW), DKZA 190 PS (140 kW), DKZC 200 PS (147 kW), DKZ 190 PS (140 kW), DLBA 245 PS (180 kW), DLG 252 PS (185 kW), DLVB 150 PS (110 kW), DNJA 230 PS (169 kW), DNLA 190 PS (140 kW), DNNA 190 PS (140 kW), DNPA 245 PS (180 kW), DNUA 272 PS (200 kW), DNUC 290 PS (213 kW), DNUE 300 PS (220 kW), DNUF 306 PS (225 kW), DNU 290 PS (213 kW), DNU 300 PS (221 kW), DRXA 170 PS (125 kW)
