IRP forged pistons, RENAULT R5 GT / SUPER 5 GT / R11 (1.4LTR.)

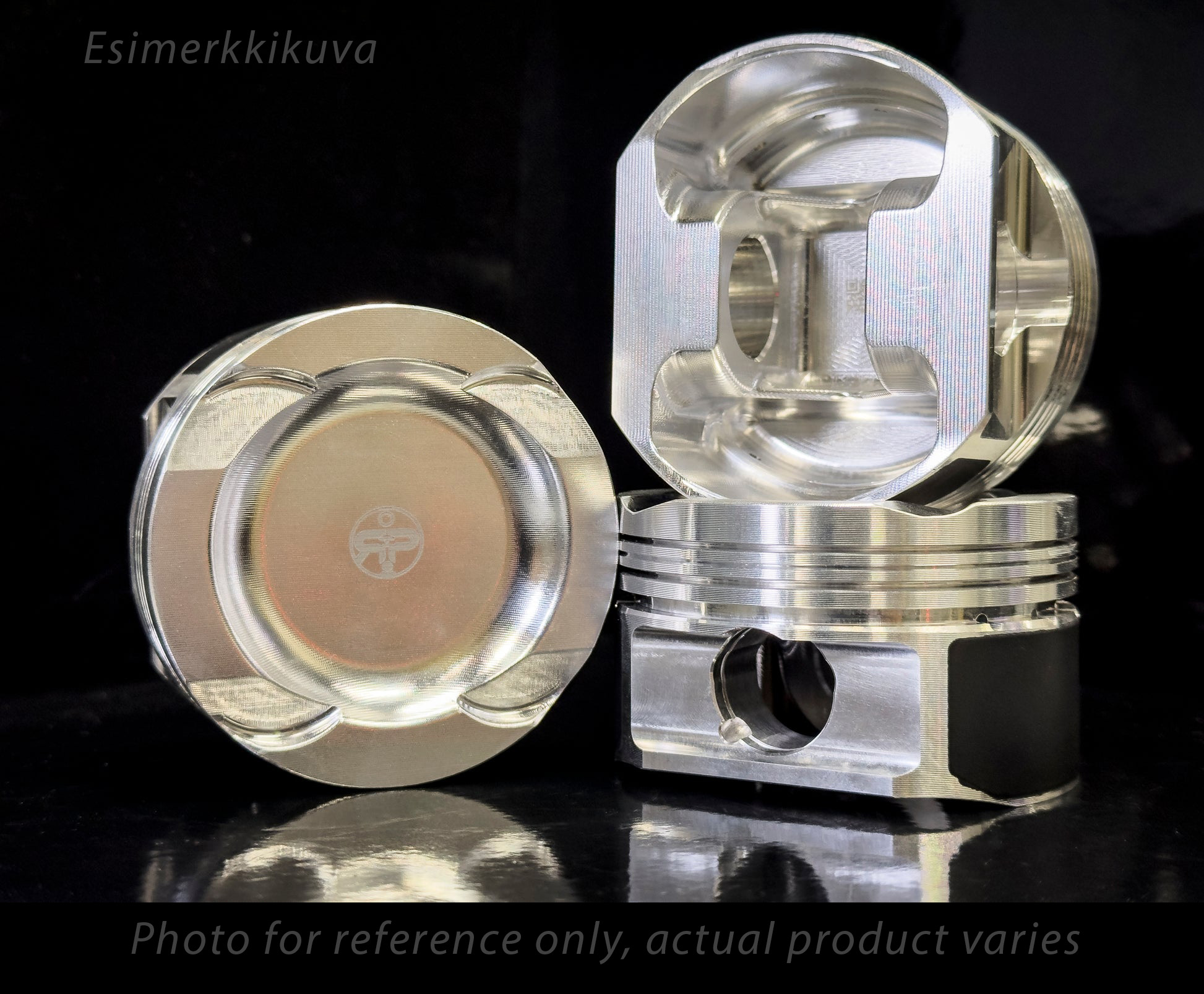

Italian RP (IRP) Forged Piston Kit

Forged pistons made from the highest quality alloys with extremely precise tolerances.
Designed to withstand heavy loads such as Stage 3 and Stage 4 builds and demanding motorsport use.
Available in multiple bore sizes and compression ratios.
Our selection also includes IRP piston + rod packages or rods separately according to your needs.

We also offer fully custom-dimension IRP pistons and rods – contact us for more details.

What’s included

• Forged piston set including pins, locks, and piston rings
• High-strength piston pins
• Reinforced pin locks
• High-quality piston rings for demanding use
• Piston materials and coatings according to selected package level

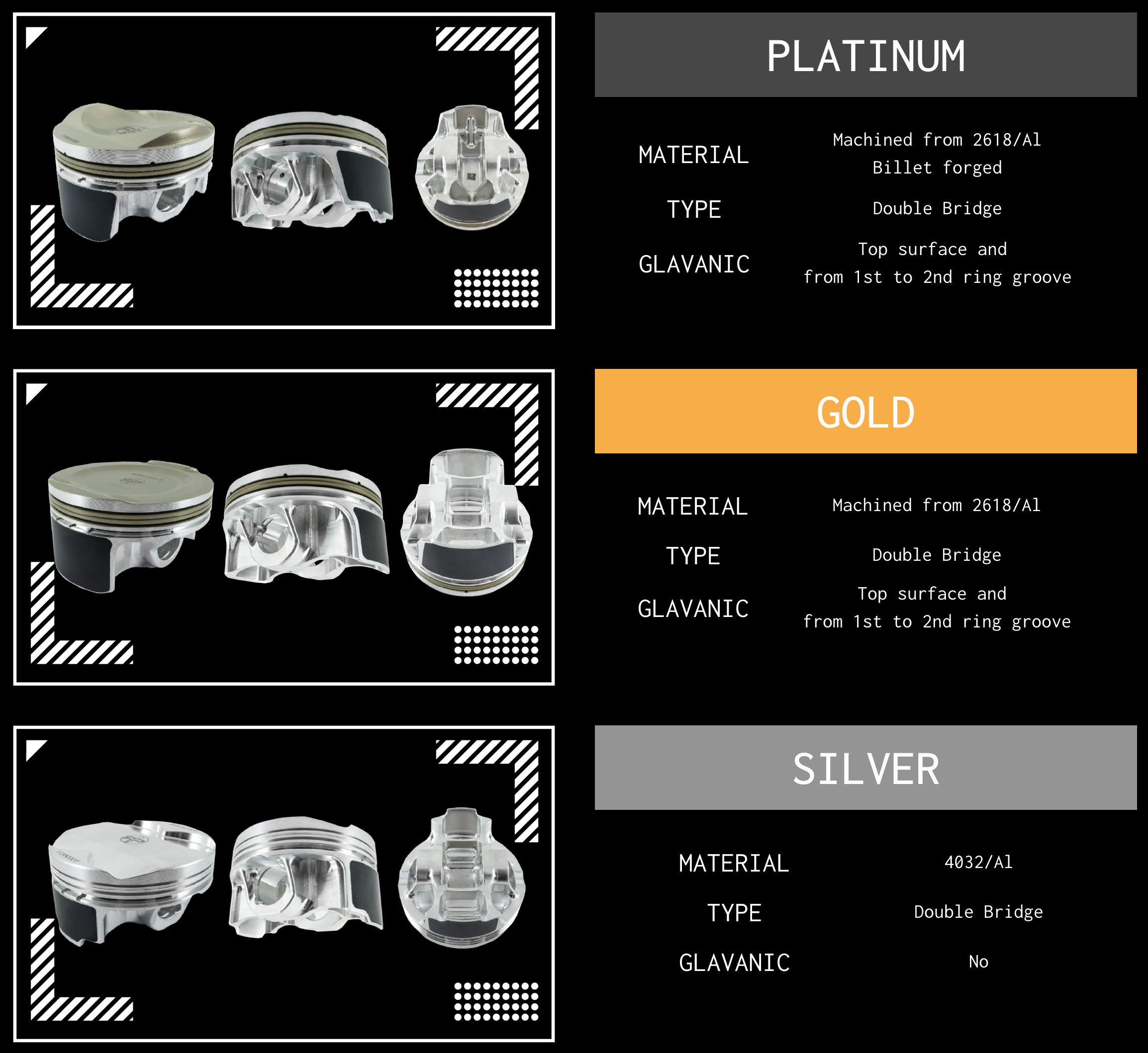

Kit levels

Choose the specification that fits your build:

• Silver – Most popular choice, excellent performance for tuned street and track cars
• Gold – Higher-grade materials and tighter tolerances for higher power goals
• Platinum – Top-tier package for extreme power, durability, and full racing use

---

Specifications

Compatible models	RENAULT R5 GT / SUPER 5 GT / R11 (1.4LTR.)
Engine type	C1J760/C1J782 1400cc
Stroke length	77.00 mm
Pin diameter	20.000 mm
Designed for rod length	128.000 mm

---

IRP Forged Pistons

• High-strength forged alloy, resistant to detonation and heat
• Optimized crown and skirt geometry for controlled expansion and reduced friction
• Multiple compression ratios and oversizes for different turbo and fuel applications
• High-quality piston rings and heavy-duty pins included

Fitment & ordering

Parts are model- and engine-specific. Select bore size and compression ratio from the product menu.
If you are unsure about fitment, contact us via WhatsApp, email, or the contact form – our experts will be happy to assist you!

Additional information & links

• IRP main catalog (PDF)
• Installation instructions, pistons

---
