Garrett Powermax upgrade turbo, Volkswagen Golf MK8 GTI / EA888 Gen4

Garrett Powermax Stage 1 turbocharger EA888 Gen4 (GTI), up to 450 hp performance for MK8 GTI models

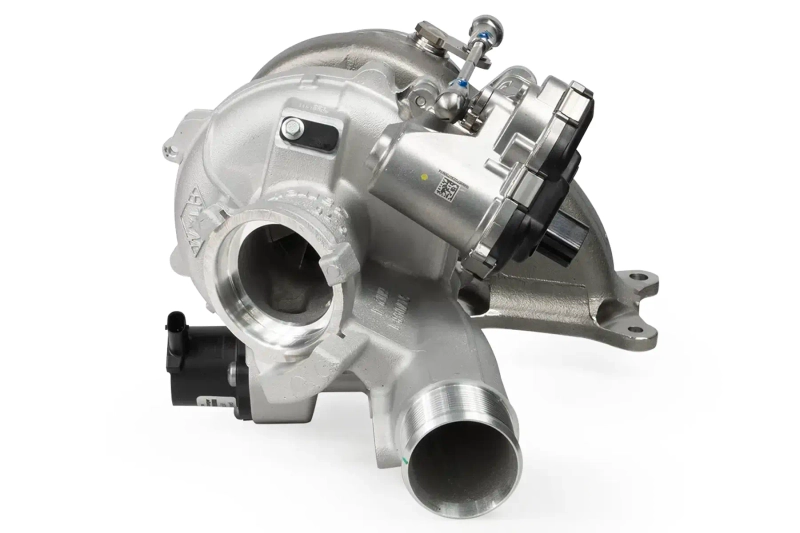

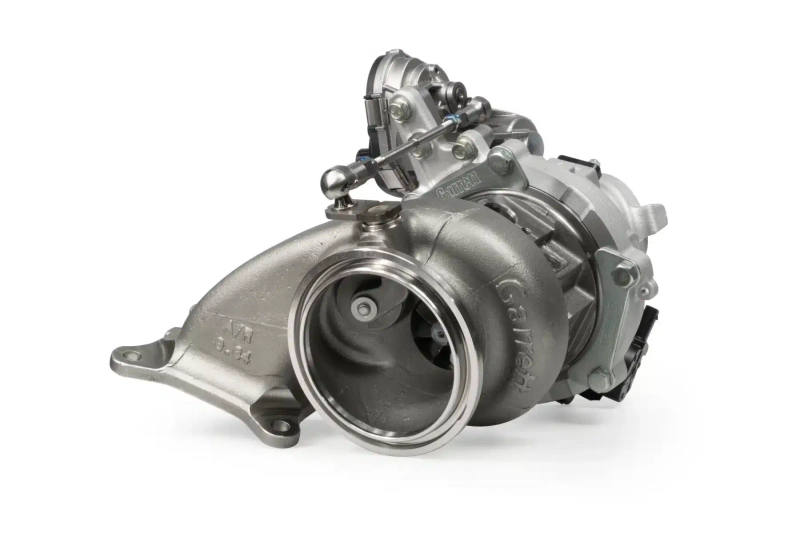

Garrett Powermax Stage 1 is a GT2260S based turbocharger designed as a direct replacement for the factory turbo, fitting directly to EA888 Gen4 MQB so called GTI engines (see detailed compatibility list below). With proper engine tuning, this turbo can deliver close to 450 hp while still maintaining fast response and OEM like driving comfort.

If you are tuning a Golf MK8 R, GTI Clubsport or another EA888 Gen4 model equipped with a factory “big turbo”, also check Garrett Powermax Golf MK8 R turbo.

Garrett Gen II GTX compressor technology allows significantly higher airflow across the entire RPM range, which translates in real world driving to a strong power band, fast spool and excellent drivability. A very solid choice for both mild and more aggressive tuning builds while keeping the car responsive and dynamic to drive.

• Direct bolt on installation for EA888 Gen4 GTI engines similar to OEM turbo
• Clear capacity increase over stock, supporting close to 450 hp when properly tuned

This turbo features a 360° thrust bearing design and provision for a turbo speed sensor. Maximum turbo speed is approximately 186000 rpm. The turbo rotates counter clockwise and uses a journal bearing design built for long term high load operation when properly maintained.

Technical specifications

Compressor inlet approx. 47 mm
Compressor outlet approx. 60 mm
Turbine inlet approx. 50 mm
Turbine outlet approx. 45 mm
A/R 0.64
OEM reference number including 06Q145702B

Compatible models:

Volkswagen Golf 8 GTI 2.0 TSI
Volkswagen Tiguan 2.0 TSI
Audi Q3 45 TFSI 2.0
Audi TT 45 TFSI 2.0
Skoda Octavia RS 2.0 TSI
Skoda Kodiaq RS TSI
Cupra Leon 2.0 TSI
Cupra Formentor 2.0 TSI
Seat Tarraco 2.0 TSI
