EBC Brake discs, item USR198 (Ultimax)

EBC BRAKES brake discs and pads

EBC is a brand we all petrolheads know. Reasonably priced, high quality brake discs with one of the widest selections on the market. EBC produces brake discs and pads in various types to match your driving profile optimally.

While the price level is slightly higher than the cheapest spares out there, these products still come with a very reasonable price tag compared to OEM or other similar performance brands. Direct OEM fitment, quality you can trust and suitable materials for everything from daily driver to track beast.

• Product series: Ultimax USR
• Package size: Kit includes a pair (2pcs) of brake discs
• Number of wheel bolts: 4 pcs
• Disc Diameter: 232 mm
• Disc total height: 27 mm
• Disc thickness (max/min): 10/9 mm



EBC catalogue is an exceptionally comprehensive one, thus EBC products are listed in our database by the SKU product number.

1. Check availability for your vehicle at EBC online – > EBC Brakes Catalog
2. Find your products from our webshop by writing the SKU in search field (e.g. GD123, USR123..)
3. Our team is always happy to help you choosing the correct parts for your vehicle, don’t hesitate to send us an inquiry with your cars model specification.

---

EBC BRAKES disc series ABC

EBC catalogue offers various brake discs to match your needs.



EBC Standard

Brake discs essentials, high quality disc to replace the worn out OEM parts. This disc type is recognized by the part number starting with D, for example “D123”.

• Standard disc for daily driving, no grooves or slots.
• Affordable price
• Thermic black coating for maximum corrosion resistance
• High quality spare part

EBC Turbo-Groove (GD)

Most popular EBC disc for demanding car enthusiast. More or less an industry standard in sport cars for decades. Balanced geometry, optimal for dynamic driving or track days.
Turbo-Groove disc is recognized by the part number starting with “GD”, for example “GD123”.

• Wide aperture grooves help to remove excess surface gasses between pad and disc
• ”Blind” slots help to prevent cracking or break down
• Designed for up to +900C glowing hot temperatures without getting damaged.
• Thermic black coating for maximum corrosion resistance
• Choice of a car enthusiast, accepts various pad materials

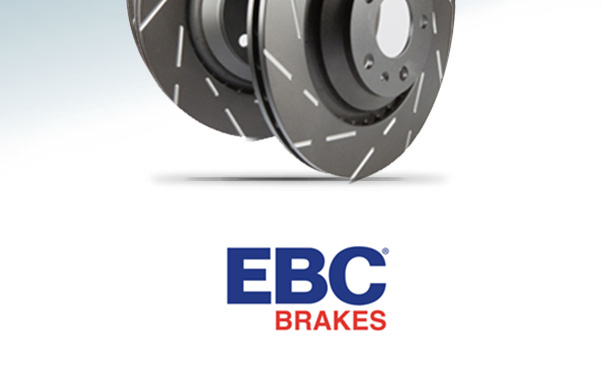

EBC Ultimax USR

Disc with a more subtle grooving, minimal brake noise offers an optimal choice for “daily driver” as well while still offering performance. These discs are recognized by the part number starting with “USR”, for example “USR123”.

• Grooving helps to remove excess surface gasses between pad and disc
• Ultrasilent operation with USR groove design
• Thermic black coating for maximum corrosion resistance
• Compatible with various pad materials



EBC BSD Blade Discs

Subtle Bi-Directional grooving offers improved cooling for brake pads, while keeping the brake noise minimal. These discs can be recognized by the part number starting with “BSD” for example “BSD123”.

• Bi-Directional grooving helps to remove excess surface gasses between pad and disc efficiently
• Ultrasilent operation with BSD groove design
• Unique looks
• Thermic black coating for maximum corrosion resistance
• Compatible with various pad materials



EBC 2-piece Floating discs

2-piece floating discs for heavy duty trackday or race use.

• Optimized for competition use
• Available also for cars with stock 2-piece discs
• Serviceable, capable, but significantly higher price level
• Limited selection



---

Complete your EBC kit with suitable brake discs from either our EBC Brake pad selection or catch a set of compromise free Racing pads from FERODO RACING department.

Don’t forget your high performance HEL Performance brake lines in the color of your choice, with high performance brake fluids.

---

This disc might fit the front brakes in models:
BOND Equipe 1.3 1969-1970
CATERHAM 7 1.4 1991-2006
CATERHAM 7 1.4 1991-2006
CATERHAM 7 1.6 1974-1981
CATERHAM 7 1.6 1981-1994
CATERHAM 7 1.6 1994-2014
CATERHAM 7 1.7 1986-1990
CATERHAM 7 1.7 1986-1990
CATERHAM 7 1.8 1997-2002
CATERHAM 7 2 1990-2014
CATERHAM C21 1.6 1996-2000
CATERHAM C21 1.8 1996-2000
CATERHAM C21 2 1996-2000
FAIRTHORPE Electron Minor 0.9 1967-1973
FAIRTHORPE Electron Minor 1.1 1967-1973
FAIRTHORPE Electron Minor 1.3 1967-1973
GINETTA G4 1.0 1961-1969
GINETTA G4 1,3 1981
GINETTA G4 1.5 1961-1969
GINETTA G4 1,6 1961-1969
GINETTA G4 1,6 1981
GINETTA G4 2 1981
LOTUS Elan S3 1.6 1966-1968
LOTUS Elan S4 1.6 1968-1971
LOTUS Elan Sprint 1.6 1970-1974
LOTUS Europa 1.5 1966-1967
LOTUS Europa 1.5 1967-1970
LOTUS Europa 1.6 1969-1972
LOTUS Europa 1,6 1971-1972
LOTUS Europa 1,6 1972-1975
LOTUS Seven 1,3 1968-1970
LOTUS Seven 1,6 1967-1970
LOTUS Seven 1,6 1970-1973
PIPER GTT 1,6 1968-1971
PIPER P2 1,6 1971-1974
PIPER P2 2 1971-1974
ROCHDALE Olympic 1.5 1963-1973
TRIUMPH Herald 13/60 1,3 1967-1971
TRIUMPH Spitfire 1,3 1967-1974
TRIUMPH Spitfire 1,5 1974-1980

and for rear brakes in models:
CATERHAM 7 1.4 1991-2006
CATERHAM 7 1.4 1991-2006
CATERHAM 7 1.6 1994-2014
CATERHAM 7 1.6 1994-2014
CATERHAM 7 1.7 1986-1990
CATERHAM 7 1.7 1986-1990
CATERHAM 7 1.8 1997-2002
CATERHAM 7 1.8 1997-2002
CATERHAM 7 2 1990-2014
CATERHAM 7 2 1990-2014

Check fitment always before ordering with catalogue and dimensions, or ask for our assistance.
