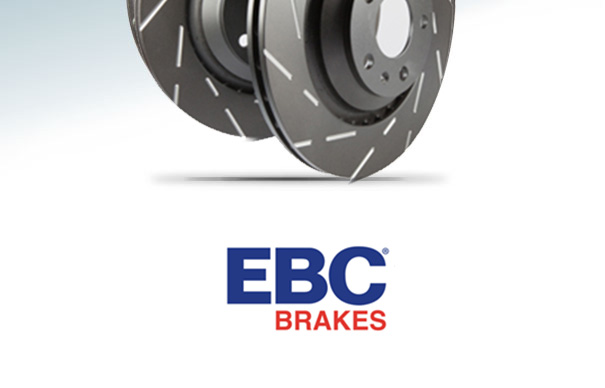

EBC Brake discs, item USR291 (Ultimax)

EBC BRAKES brake discs and pads

EBC is a brand we all petrolheads know. Reasonably priced, high quality brake discs with one of the widest selections on the market. EBC produces brake discs and pads in various types to match your driving profile optimally.

While the price level is slightly higher than the cheapest spares out there, these products still come with a very reasonable price tag compared to OEM or other similar performance brands. Direct OEM fitment, quality you can trust and suitable materials for everything from daily driver to track beast.

• Product series: Ultimax USR
• Package size: Kit includes a pair (2pcs) of brake discs
• Number of wheel bolts: 4 pcs
• Disc Diameter: 256 mm
• Disc total height: 41 mm
• Disc thickness (max/min): 24/22 mm



EBC catalogue is an exceptionally comprehensive one, thus EBC products are listed in our database by the SKU product number.

1. Check availability for your vehicle at EBC online – > EBC Brakes Catalog
2. Find your products from our webshop by writing the SKU in search field (e.g. GD123, USR123..)
3. Our team is always happy to help you choosing the correct parts for your vehicle, don’t hesitate to send us an inquiry with your cars model specification.

---

EBC BRAKES disc series ABC

EBC catalogue offers various brake discs to match your needs.



EBC Standard

Brake discs essentials, high quality disc to replace the worn out OEM parts. This disc type is recognized by the part number starting with D, for example “D123”.

• Standard disc for daily driving, no grooves or slots.
• Affordable price
• Thermic black coating for maximum corrosion resistance
• High quality spare part

EBC Turbo-Groove (GD)

Most popular EBC disc for demanding car enthusiast. More or less an industry standard in sport cars for decades. Balanced geometry, optimal for dynamic driving or track days.
Turbo-Groove disc is recognized by the part number starting with “GD”, for example “GD123”.

• Wide aperture grooves help to remove excess surface gasses between pad and disc
• ”Blind” slots help to prevent cracking or break down
• Designed for up to +900C glowing hot temperatures without getting damaged.
• Thermic black coating for maximum corrosion resistance
• Choice of a car enthusiast, accepts various pad materials

EBC Ultimax USR

Disc with a more subtle grooving, minimal brake noise offers an optimal choice for “daily driver” as well while still offering performance. These discs are recognized by the part number starting with “USR”, for example “USR123”.

• Grooving helps to remove excess surface gasses between pad and disc
• Ultrasilent operation with USR groove design
• Thermic black coating for maximum corrosion resistance
• Compatible with various pad materials



EBC BSD Blade Discs

Subtle Bi-Directional grooving offers improved cooling for brake pads, while keeping the brake noise minimal. These discs can be recognized by the part number starting with “BSD” for example “BSD123”.

• Bi-Directional grooving helps to remove excess surface gasses between pad and disc efficiently
• Ultrasilent operation with BSD groove design
• Unique looks
• Thermic black coating for maximum corrosion resistance
• Compatible with various pad materials



EBC 2-piece Floating discs

2-piece floating discs for heavy duty trackday or race use.

• Optimized for competition use
• Available also for cars with stock 2-piece discs
• Serviceable, capable, but significantly higher price level
• Limited selection



---

Complete your EBC kit with suitable brake discs from either our EBC Brake pad selection or catch a set of compromise free Racing pads from FERODO RACING department.

Don’t forget your high performance HEL Performance brake lines in the color of your choice, with high performance brake fluids.

---

This disc might fit the front brakes in models:
DAEWOO Espero 1.8 1995-1997
DAEWOO Espero 2.0 1995-1997
DAEWOO Lanos 1.6 1997-2002
DAEWOO Lanos 1.6 1999-2005
DAEWOO Nexia 1.5 16v 1995-1997
LOTUS Elan M100 1.6 1989-1994
LOTUS Elan M100 1.6 Turbo 1989-1997
OPEL Ascona 2.0 1983-1988
OPEL Astra (F) 1.6 16v 1993-1998
OPEL Astra (F) 1.8 1991-1998
OPEL Astra (F) Estate 1.8 1991-1994
OPEL Astra (F) Estate 1.8 1995-1998
OPEL Astra (F) 2.0 1991-1998
OPEL Astra (F) Estate 2.0 1991-1994
OPEL Astra (F) Estate 2.0 1995-1998
OPEL Astra (F) Estate 1.7 D 1991-1994
OPEL Astra (F) Estate 1.7 D 1995-1998
OPEL Astra (F) Estate 1.7 TD 1991-1994
OPEL Astra (F) 1.7 TD 1995-1998
OPEL Astra (F) Estate 1.7 TD 1995-1998
OPEL Astra Classic (F) 1.6 16v 1998-2002
OPEL Astra Classic (F) Estate 1.6 16v 1998-2005
OPEL Astra Cabriolet 1.8 1994-2001
OPEL Astra Cabriolet 2.0 1993-1994
OPEL Calibra 2.0 1989-1997
OPEL Kadett 2.0 1987-1993
OPEL Kadett 2.0 16v 1987-1993
OPEL Kadett Estate 2.0 1987-1991
OPEL Kadett Estate 2.0 1987-1991
OPEL Kadett Convertible 2 1986-1993
OPEL Vectra 1.6 8v 1995-2000
OPEL Vectra 1.6 16v 1995-2000
OPEL Vectra 1.8 1988-1990 4×4
OPEL Vectra 1.8 1991-1995 Automatic
OPEL Vectra 1.8 1995-2000
OPEL Vectra 1.8 16v 1995-2000
OPEL Vectra 2.0 1988-1995
OPEL Vectra 2.0 1991-1995
OPEL Vectra 2.0 SRi 1988-1991
OPEL Vectra 2.0 16v 1988-1992
OPEL Vectra 2.0 16v 1993-1995
OPEL Vectra 2.0 1995-2002
OPEL Vectra 1.7 TD 1995-1996
OPEL Vectra 2.0 D 1996-1999
OPEL Vectra 2.0 TD 1997-1999
VAUXHALL Astra (E) 2 1987-1991
VAUXHALL Astra (E) 2 1987-1991
VAUXHALL Astra (E) 2.0 16v 1988-1990
VAUXHALL Astra (E) 2.0 16v 1990-1991
VAUXHALL Astra (F) 1,6 1993-1995
VAUXHALL Astra (F) 1.6 16v 1995-1998
VAUXHALL Astra (F) 1.8 16v 1993-1995
VAUXHALL Astra (F) 2.0 1991-1992
VAUXHALL Astra (F) 2.0 1992-1995
VAUXHALL Astra (F) 2.0 16v 1991-1995
VAUXHALL Astra (F) 2.0 1995-1998
VAUXHALL Astra (F) 1.7 TD 1991-1998
VAUXHALL Astra (F) Estate 1.7 TD 1991-1998
VAUXHALL Astra Cabriolet 1.8 1994-1995
VAUXHALL Astra Cabriolet 1.8 1995-1999
VAUXHALL Astra Cabriolet 2.0 1987-1993
VAUXHALL Astra Cabriolet 2.0 1993-1994
VAUXHALL Belmont 2 1987-1991
VAUXHALL Belmont 2.0 16v 1988-1991
VAUXHALL Calibra 2.0 1990-1994
VAUXHALL Calibra 2.0 1994-1998
VAUXHALL Cavalier 1.6 1995
VAUXHALL Cavalier 1.8 1995
VAUXHALL Cavalier 1.8 1992-1995 Automatic
VAUXHALL Cavalier 2.0 1988-1991
VAUXHALL Cavalier 2.0 1991-1994
VAUXHALL Cavalier 2.0 1994-1995
VAUXHALL Cavalier 2.0 16v 1988-1992
VAUXHALL Cavalier 2.0 16v 1993-1995
VAUXHALL Cavalier 2.0 1988-1992 4×4
VAUXHALL Cavalier 1.7 D 1995
VAUXHALL Cavalier 1.7 TD 1995
VAUXHALL Vectra 1.6 8v 1995-2000
VAUXHALL Vectra 1.6 16v 1995-2000
VAUXHALL Vectra 1.8 1995-2000
VAUXHALL Vectra 1.7 TD 1995-1996
VAUXHALL Vectra 2.0 D 1996-1999
VAUXHALL Vectra 2.0 TD 1997-1999

Check fitment always before ordering with catalogue and dimensions, or ask for our assistance.
