HEL Performance brake lines for MAZDA models

Hel Performance – may the brake force be with you.

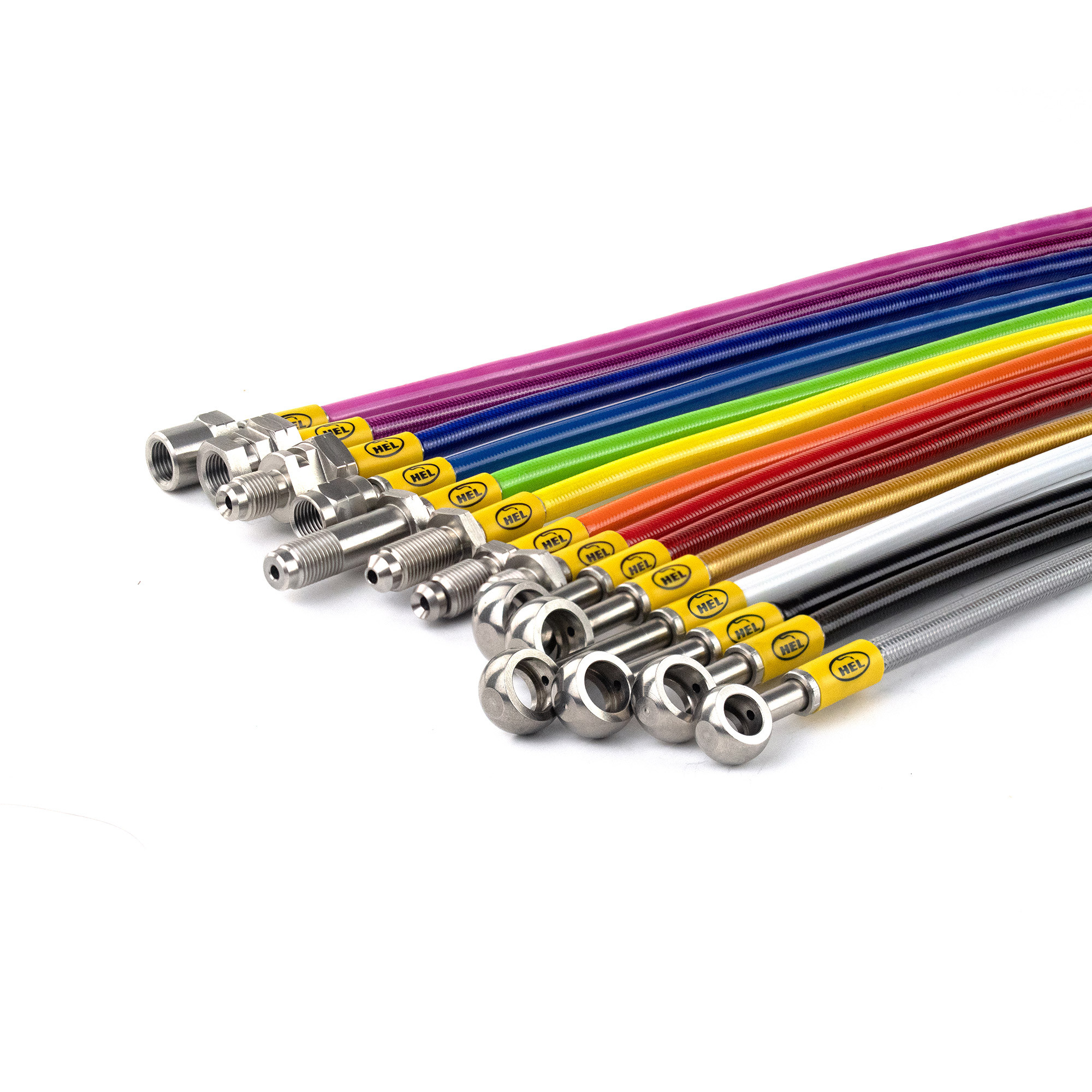

Stainless braided brake lines for various Mazda models

Choose your model from the drop-down menus, and enjoy your new HEL brake lines in a matter of days.
Can’t find your model? No worries, we can produce brake lines for nearly any model existing – see for custom brake lines section below.

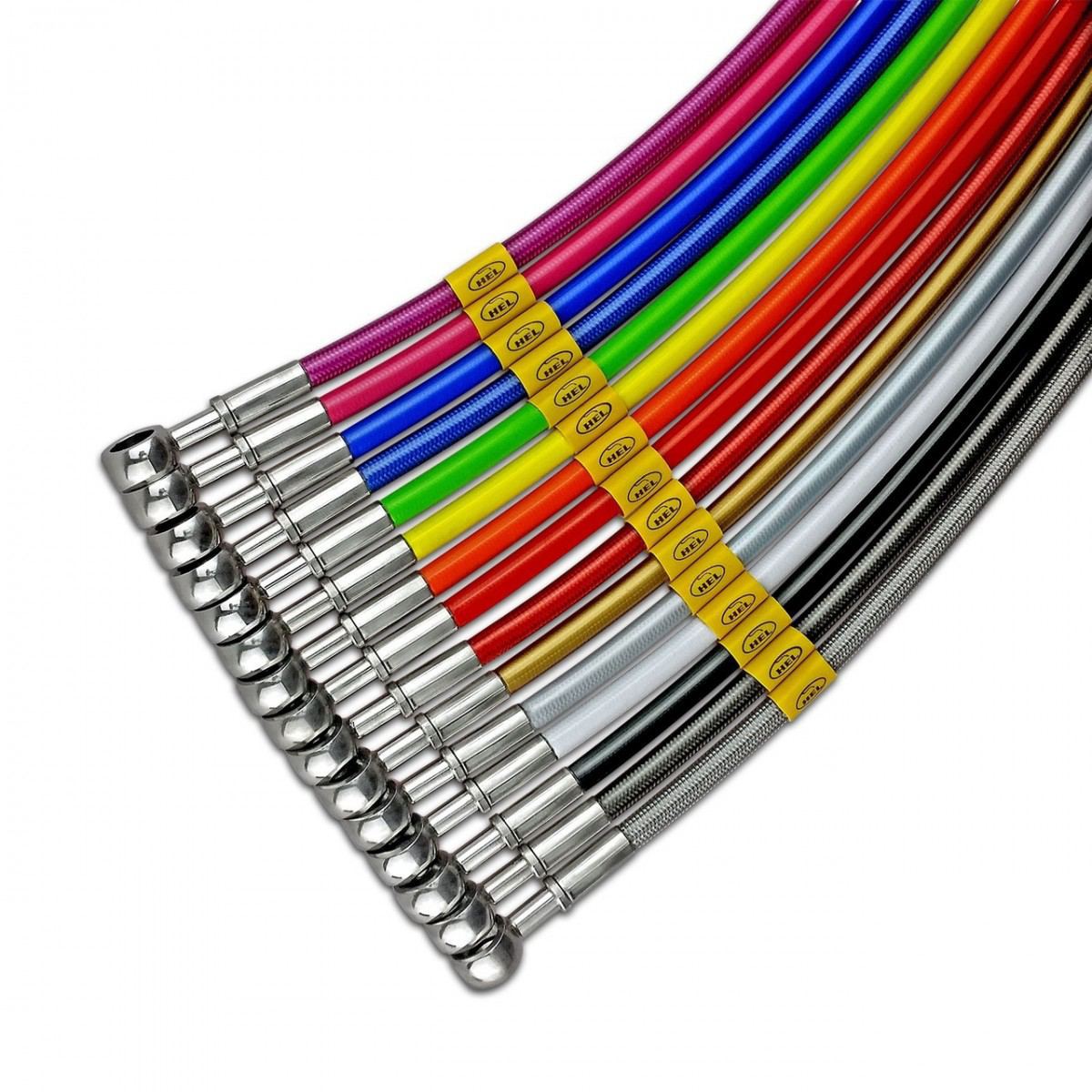

Mention your color of choice in shopping cart notes, orders without chosen colour we deliver in Carbon / Smoke tint by default.

#1 Black
#2 Blue
#3 Carbon / Smoke
#4 Green
#5 Orange
#6 Pink
#7 Red
#8 Transparent cover, Clear (Stainless braid)
#9 Transparent Blue
#10 Transparent Purple
#11 Transparent Red
#12 Banana Yellow (Warm, known from yellow brake calibers)
#13 Neon Yellow (Cold, with slight hint of green)
#14 White

---

With HEL Performance brake lines you will upgrade your stock rubber hoses to a strong stainless lines in the color of your choice. Stainless braided lines won’t flex under the pressure like stock ones do, therefore maintaining an accurate and reliable brake feel even under the most demanding circumstances such as race or track use.

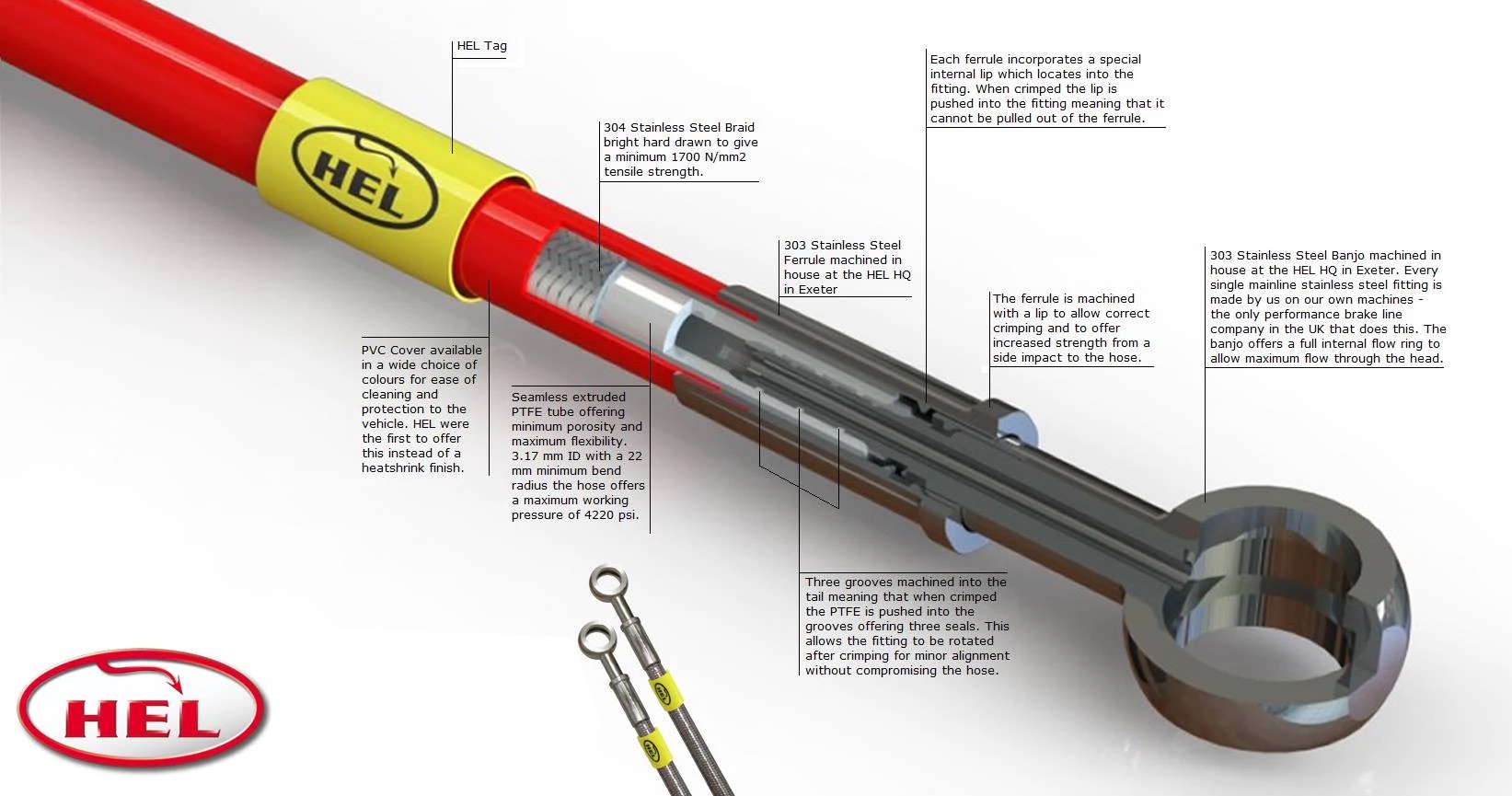

HEL brake lines inside
The stainless braided layer as well as all the connectors in these lines are made of stainless steel.
Many of the competitors use zinc plated fittings which are quickly at risk from corrosion.

• Stainless steel parts
• Multiple colors to choose from
• Inner layer PTFE / outside PVC, in between the stainless braiding
• Working pressure max. 290bar
• Burst pressure max. 870bar
• Unique design of the press -fitted connectors uses multiple locking grooves to secure the connection no matter what
• Model specific connectors and fitment for each vehicle
• Widely certified and approved

Quick delivery – even for custom made sets!
At Futurez we have our very own, fully equipped HEL Brakes production line in Finland. Hoses are made to order, and built under strict HEL Performance quality control procedures and regulations. This makes us able to produce hoses quickly to almost any vehicle, as well as do customized sets with ease.

--> Check HEL Performance custom brake lines

Press fittings are made with a strong HEL Brakes Hydraulic press device, and all hoses are naturally checked and measured to meet their requirements before shipping.

Comprehensive certifications and approvals
HEL Brakes hoses made by an authorized dealer like Futurez, are covered by various wellknown certifications and approvals to support their use in race tracks as well as public roads. Check your local regulations and have a look at – > HEL Performance certificates and approvals

Locator clips and holders
Hoses are delivered with model specific holders, and unique locator clips that enable you to position the hose securely, making sure it doesn’t get bent or stretched in use when suspension and steering do their job.

Banjo bolts and seals
For all vehicles that use banjo type connectors, we provide new HEL Banjo bolts with copper gaskets, included in the package.

Model information
It is recommended to mention the accurate model specification of your car in order notes, so we can double check the fitment and adjust if needed. Should there be any customization needed, mention that as well. For example +30mm of length or a customized connector type.

From bigger customization such as extra long hoses, connector blocks or working based on a sample hose – an extra fee might be applied.

In various colors
Available in:

Tip for the optimal brake feel – FERODO RACING

The ultimate combo with your brand new brake hoses, will be Ferodos RACING pads with high friction and temperature rating. Have a look at the category – Ferodo brake pads.

Other HEL products
HEL Performance offers a wide selection of additional products such as clutch hoses, oil coolers, brake calibers, cylinders and the list goes on. Check it out at our shop, manufacturers website or ask ous customer support team.

Remember the high quality brake fluids for your order.
