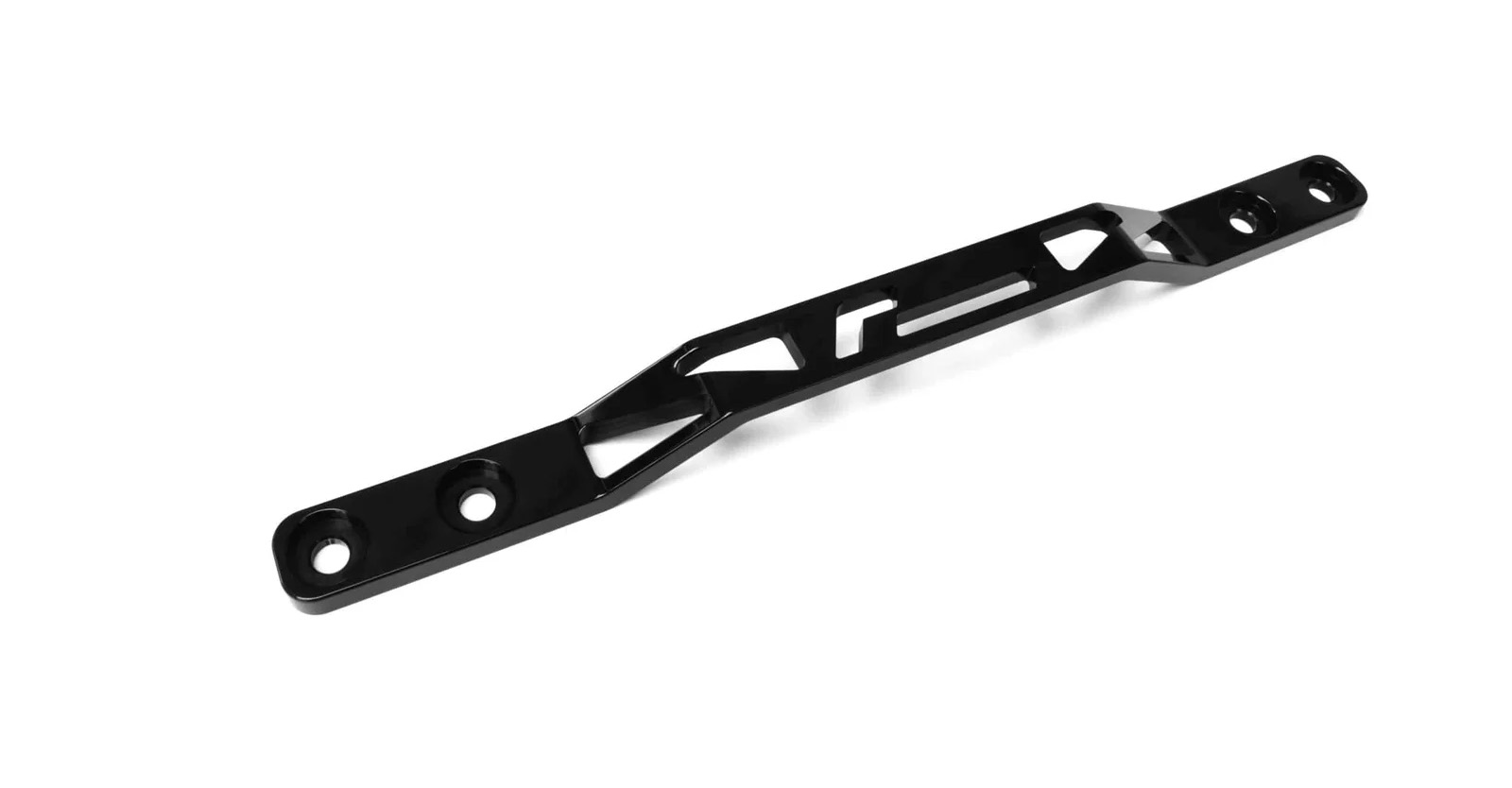

Racingline underbody tunnel brace, VAQ MQB All-wheel drive models

The MQB platform vehicles come equipped with thin stamped-steel OE tunnel braces, designed to add some reinforcement to the body’s weaker points and reduce chassis flex. However, under demanding loads, these factory braces can fall short.

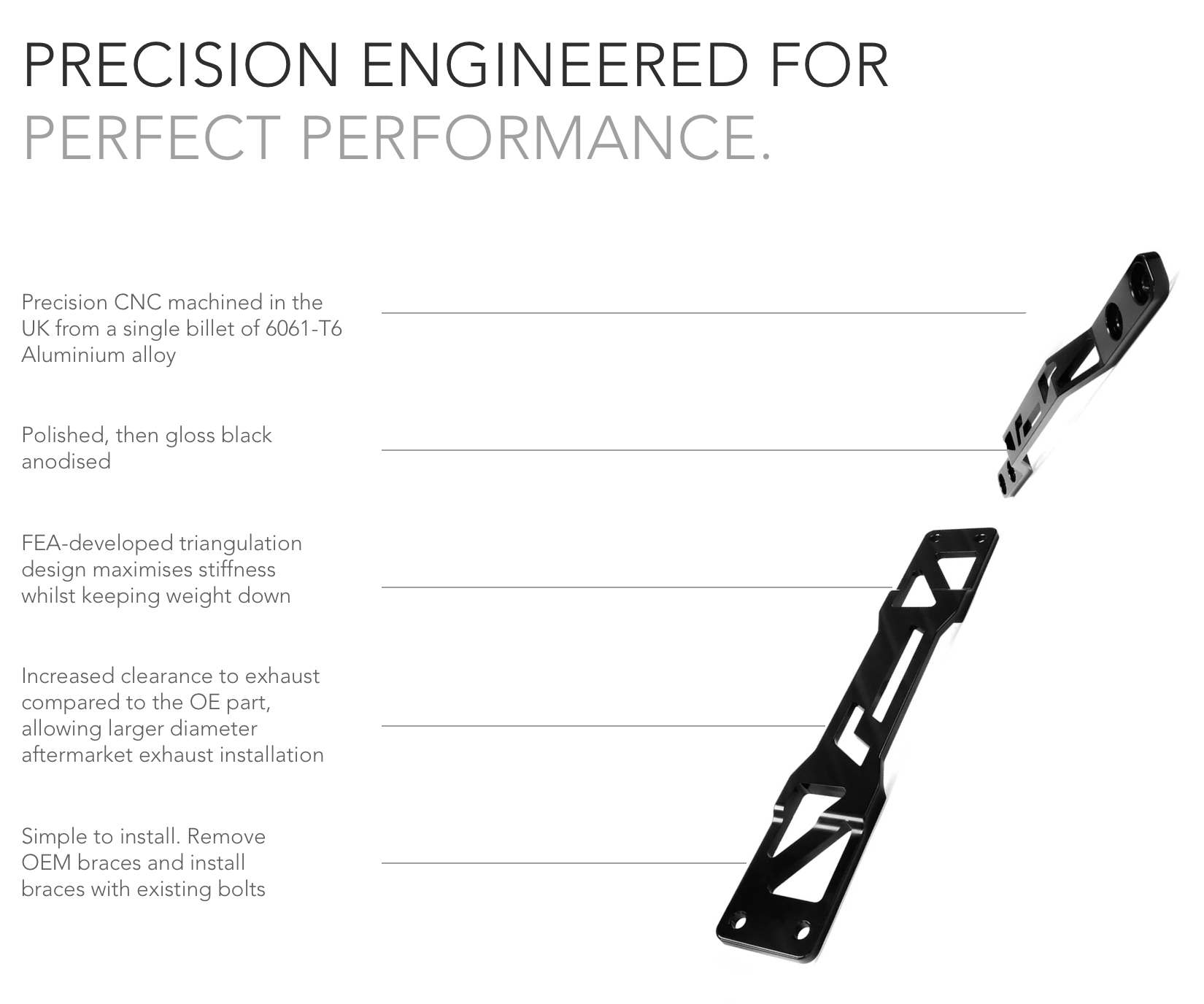

The new Racingline Billet Underbody Braces are precision-engineered aluminium replacements that significantly improve chassis stiffness, offer better exhaust clearance, and even add a stylish touch. Each brace is CNC machined from a solid billet of 6061-T6 aluminium, carefully crafted to remove unnecessary material while maximizing rigidity.

For any 3” diameter exhaust system, the OE brace often provides inadequate clearance. The Racingline Rear Tunnel Brace solves this issue, allowing you to retain essential body stiffness while gaining the needed clearance. Now, instead of removing the brace, you can install this high-quality upgrade.

Despite the added rigidity, these braces enhance dynamic performance without affecting ride comfort or introducing additional noise, vibration, or harshness into the cabin.

Installation is simple, utilizing existing body mounting points with no drilling or trim removal required, making fitment fully reversible.

We offer two braces – a Centre Brace and a Rear Tunnel Brace. Owners of FWD models can fit both, while AWD models are compatible with the Rear Tunnel Brace only.

Fits the following vehicles:

VW Golf 8 (2020+)
VW Golf 7 & 7.5 (2013-2020)
VW Passat B8 (2015+)
VW Arteon (2017+)
VW T-Roc (2017+)
VW Tiguan II (2016+)
VW Jetta / GLI 7 (2018+)
Audi S3 8Y (2020+)
Audi A3 8Y (2020+)
Audi S3 8V (2013-2020)
Audi A3 8V (2013-2020)
Audi RS3 2.5 TFSI 8Y (2021+)
Audi RS3 2.5 TFSI 8V.2 evo (2017-2020)
Audi RS3 2.5 TFSI 8V (2015-2017)
Audi TT 3 8S (2014+)
Audi TTRS 2.5 TFSI 8S (2017+)
Audi SQ2 (2018+)
Audi Q3 (2019+)
Audi Q2 (2017+)
Audi RSQ3 F3 (2019+)
Cupra Leon IV FW (2020+)
SEAT Leon III 5F (2015-2020)
Cupra Formentor VZ5 2.5 TFSI (2020+)
Cupra Formentor (2020+)
Cupra Ateca (2018+)
SEAT Tarraco 2.0 TSI (2018+)
Skoda Octavia IV NX (2020+)
Skoda Octavia III 5E (2014-2020)
Skoda Superb III 3V (2015+)
