Wagner intercooler, BMW 3- / 4-srj (G20/G21/G28, G22/G23/G26)

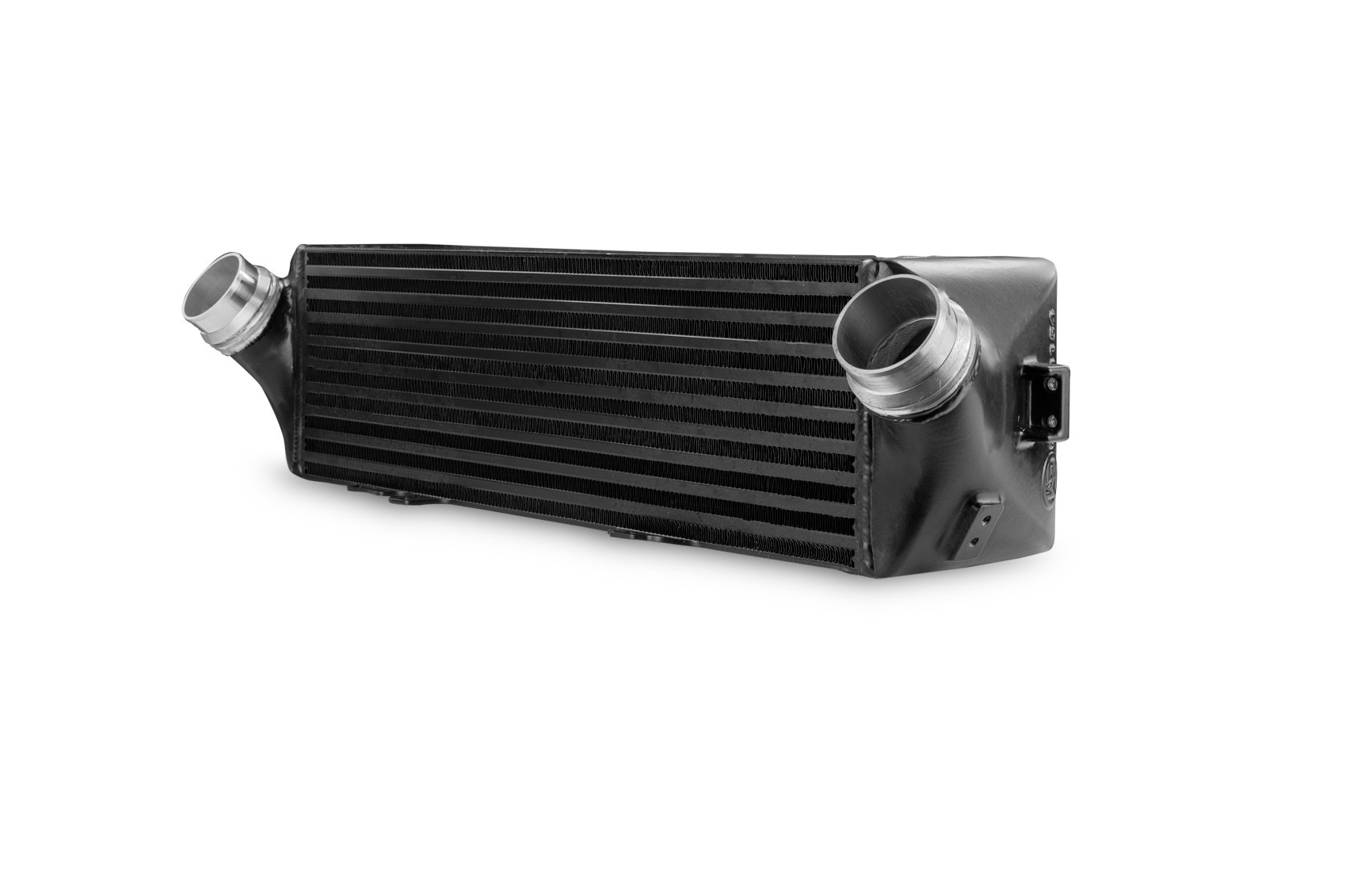

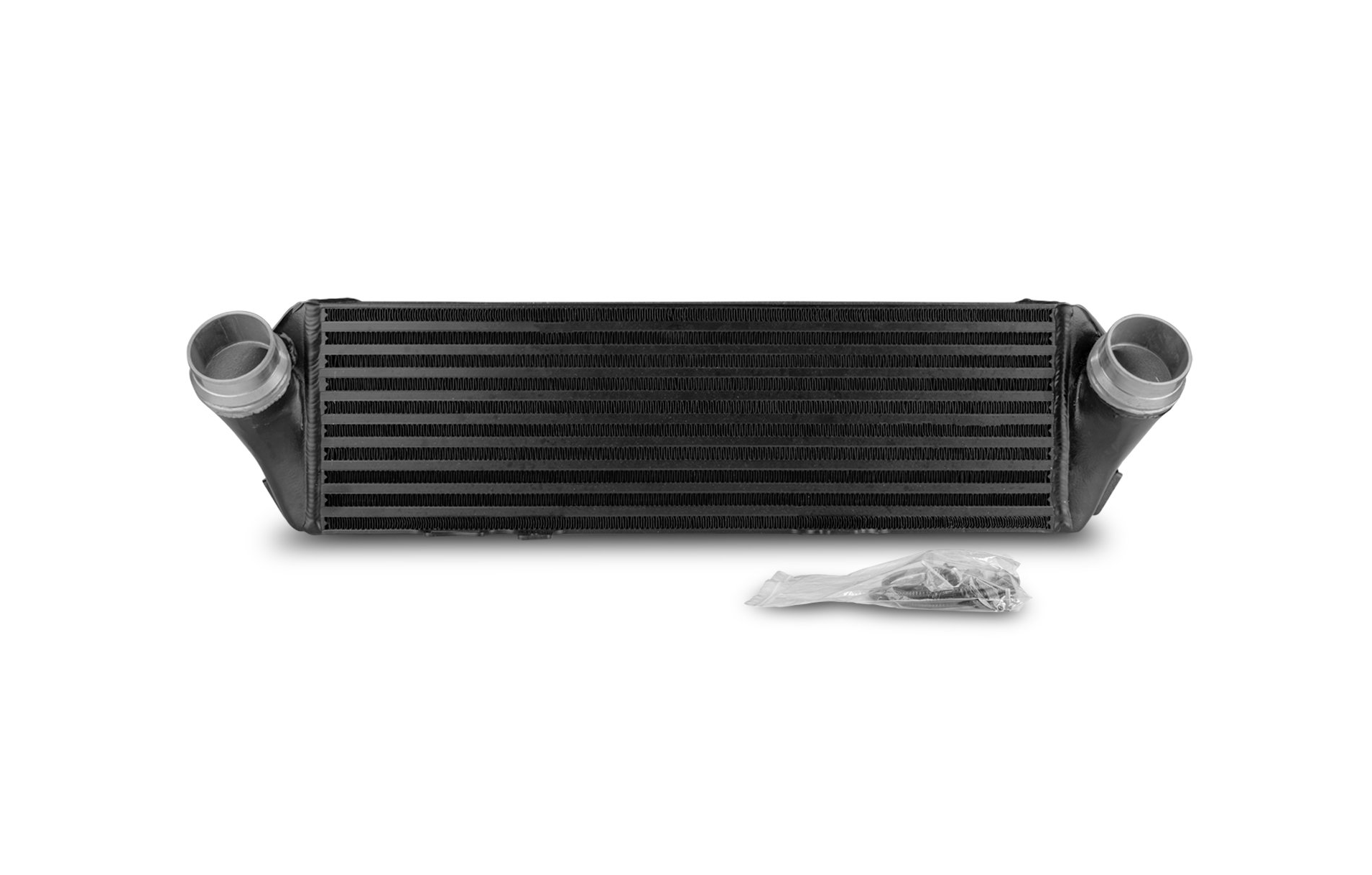

Wagner Tuning Performance Intercooler Kit BMW G20 / G21 / G22 / G23 / G26 / G28 – 67% larger volume

A well-engineered intercooler upgrade for BMW G2x models. The Wagner Tuning Performance intercooler is designed to improve cooling efficiency and reduce back pressure on both petrol and diesel variants. It is particularly suitable for tuned or more heavily driven vehicles where the factory intercooler can become a limitation.

The new performance core measures 550 mm x 170.3 mm x 145 mm and provides a net volume of 13.56 liters, which is 67% larger than the OEM intercooler. The core area is 937 cm², representing a 6.4% increase over the factory unit. The increased volume and optimized design help maintain stable intake temperatures while reducing turbocharger load.

View the kit installation instructions.

• +67% volume compared to OEM
• +6.4% core area vs. factory intercooler
• Next-generation performance core design

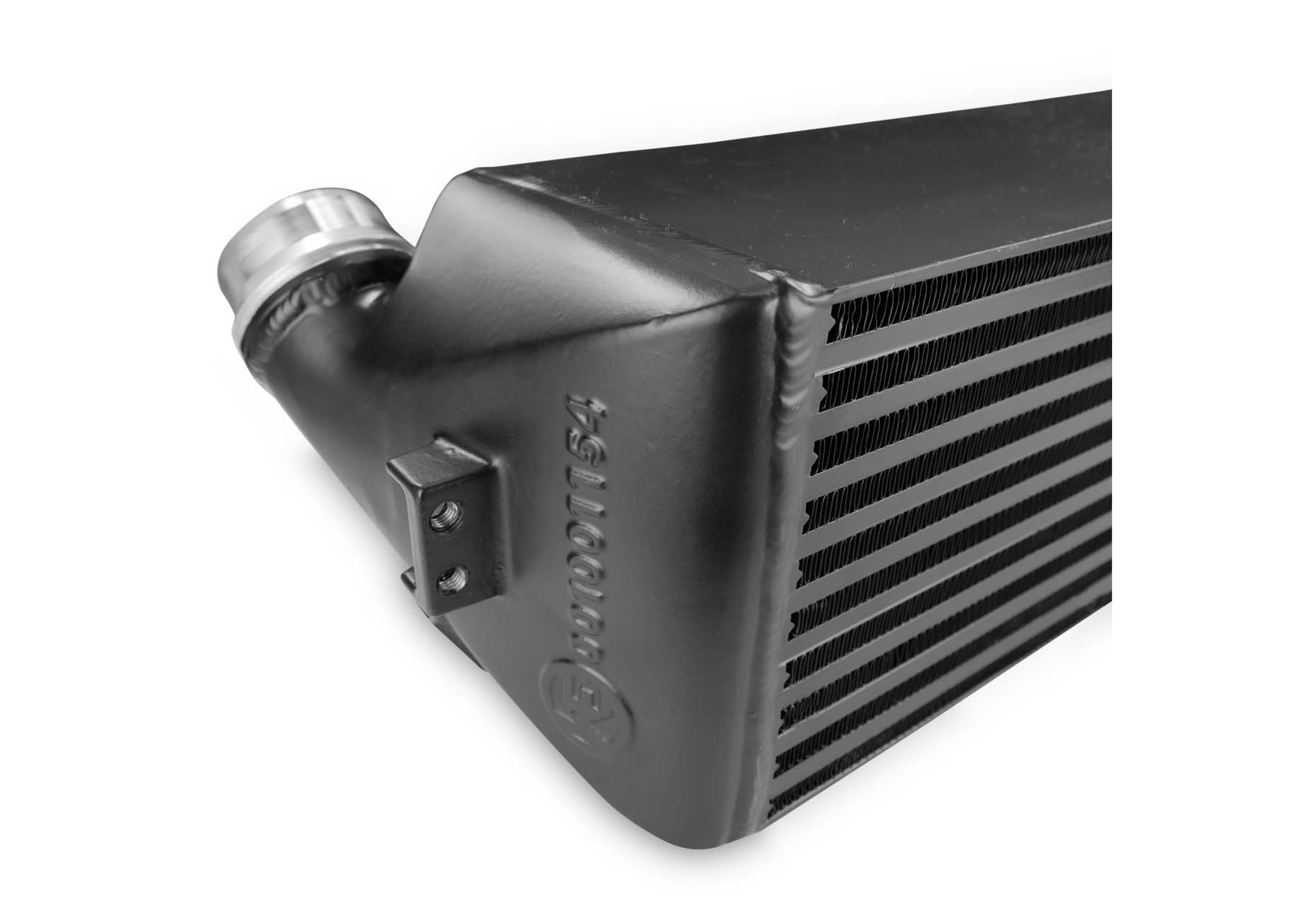

• CFD-optimized cast aluminum end tanks
• Thermally conductive anti-corrosion coating
• 100% plug and play installation with minor modifications

Technical details

• Dimensions: 550 mm x 170.3 mm x 145 mm
• Net volume: 13.56 L (OEM 8.4 L)
• Core area: 937 cm² (OEM 840 cm²)
• Part number: 200001218

Vehicle compatibility

• BMW 3-series G20 / G21 / G28
• BMW 4-series G22 / G23 / G26

Note: Not compatible with vehicles equipped with an intake manifold featuring an integrated intercooler (engine code B48C, e.g. 320i B48C, 325i B48C, 420i B48C).
