Wagner Intercooler Kit, Honda Civic FK7

Introducing the Competition Intercooler Kit for the Honda Civic FK7 1.5 VTEC Turbo. This kit is designed to enhance your vehicle’s performance by providing superior cooling capabilities.

Wagner Tuning’s intercooler offers several advantages:
– Improved cooling efficiency
– 18% larger intake area
– 65% greater charge air volume
– Weighs only 7.5 kg
– Efficient airflow
– Plug & Play installation

The core dimensions of the Competition Intercooler are 715 mm x 162 mm x 122 mm, with a stepped design providing a volume of 12,700 cm³. This high-performance intercooler boasts a 42% larger frontal area and 144% more volume compared to the OEM intercooler. Our engineers have increased the size and efficiency of the intercooler while enhancing the end tank design to eliminate any OEM bottlenecks.

Constructed from the highest quality Tube Fin cores with internal turbulators, combined with cast aluminum end tanks optimized through CFD for the best possible internal airflow.

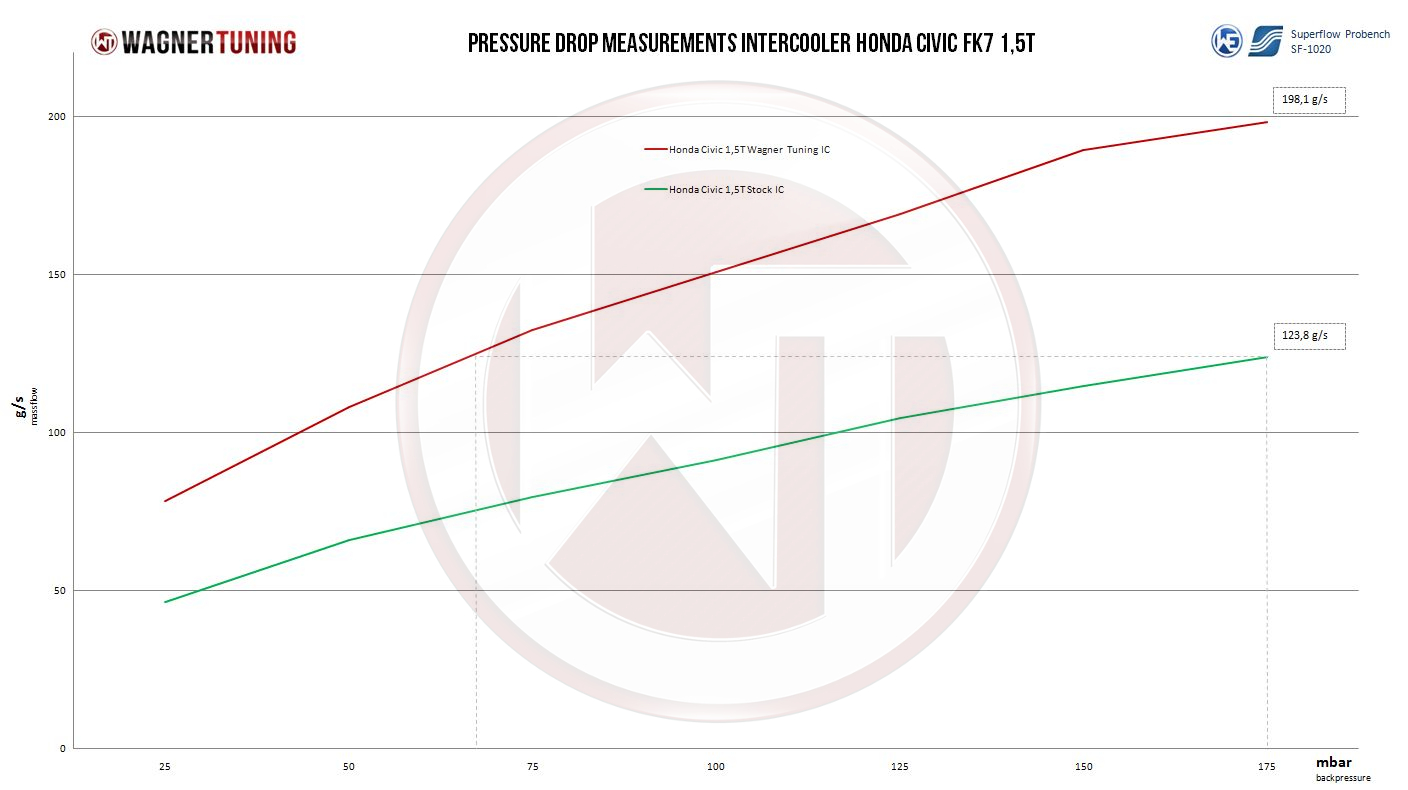

This intercooler kit is developed for high tuning stages, resulting in excellent cooling properties and significantly lower pressure drop compared to the OEM intercooler. Despite its size, the total weight of the intercooler is just 7.5 kg.

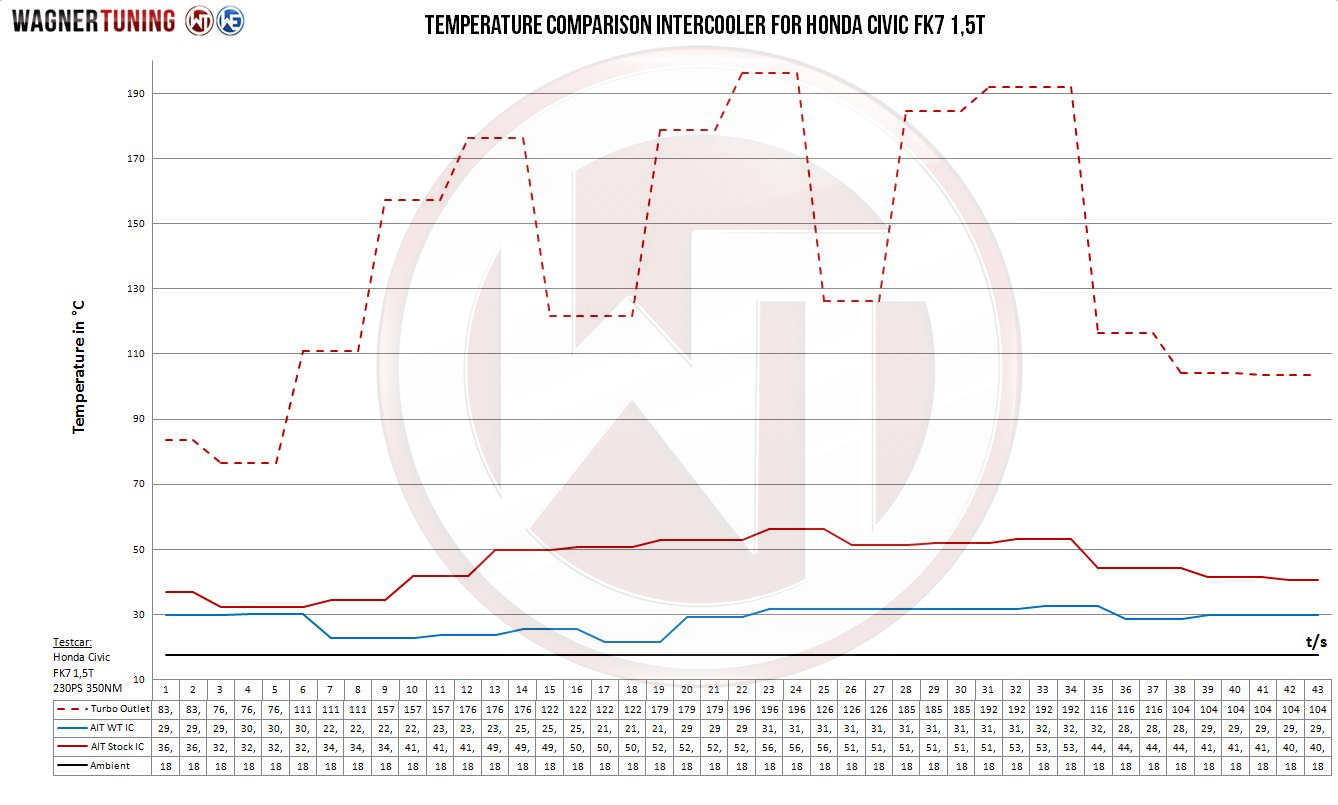

It’s the perfect choice for boosting performance and achieving lower intake temperatures, making it ideal for track use as well. All our intercoolers come with a corrosion-resistant coating that effectively dissipates heat. Expect optimal cooling with significantly higher power output. The kit is ready to install and is 100% plug & play. All our products undergo strict quality control.

Applications:
Honda Civic FK7 1.5 VTEC Turbo 132KW/182PS (2017+)

OEM intercooler dimensions:
710 mm x 114 mm x 64 mm
Volume = 5.2 liters
Area = 809 cm²

Wagner Tuning intercooler dimensions:
715 mm x 162 mm x 122 mm
Volume = 12.7 liters
Area = 1154 cm²

Included in the kit:
– 1x intercooler (black coated)
– 2x adapters
– 2x sealing rings
– Installation instructions

• Key Features:
• Superior cooling efficiency
• Larger intake area
• Increased charge air volume
• Lightweight design
• Easy installation
