ProECU-K engine management system, Honda K20

Fully adjustable ProECU-K engine management for Honda Civic K20 engines

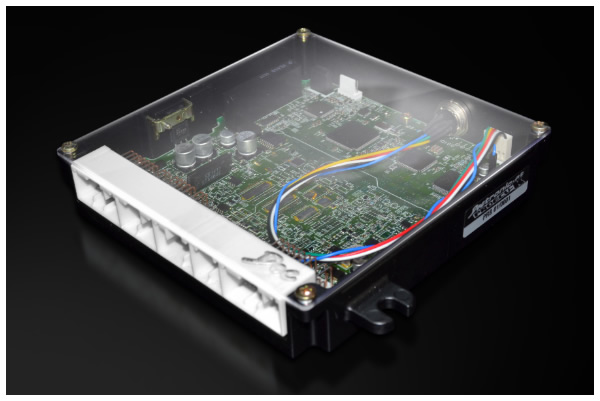

Doctronic ProECU-K is a popular tool for proper tuning of Honda Civic Type-R and similar K20 powered models. System is built and integrated in the OEM ECU, no need for additional piggybacks or other tricks of that sort.

ProECU-K can be purchased in two ways:

• Conversion for your current ECU, after processing your order, we’ll send you a DHL label you can use to pack and ship your engine control unit. This delivery has been covered by us and doesn’t cause you extra cost. In approximately 1 – 1,5 weeks you will receive your converted unit back.
• Plug-n-play used ECU unit, another option is to buy a used unit which has been converted already.



Pricing includes delivery costs for ECU return shipment within EU countries. Normal shipping will be applied in shopping cart.

Package includes:
ECU conversion work / Ready converted ECU
USB cable and accessories

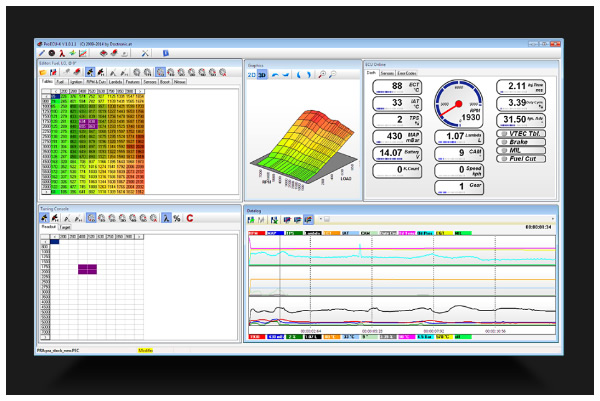

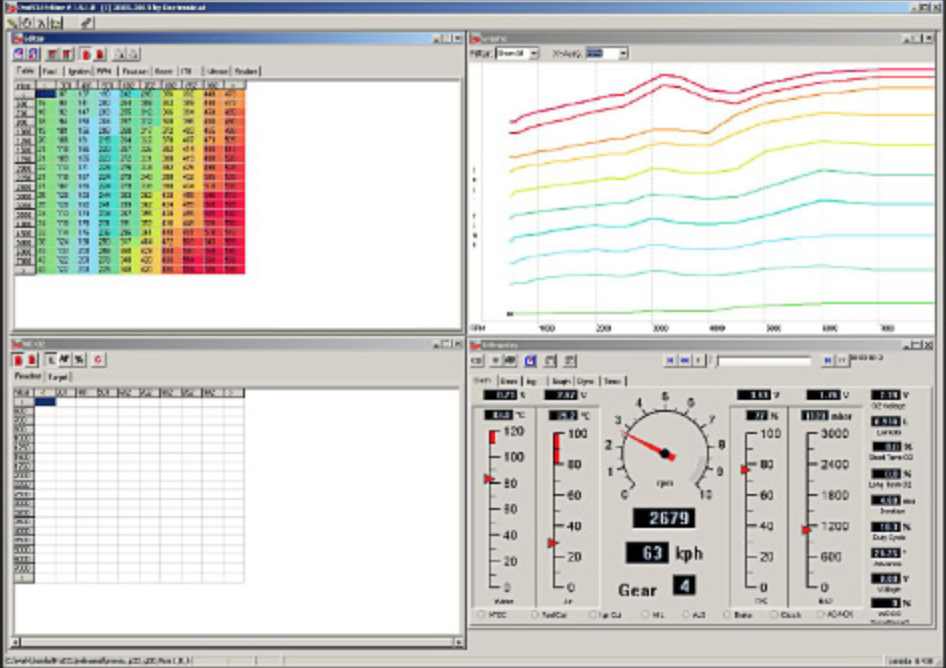

License for tuning software, which is available for download at manufacturers website.



ProECU-K features

This system allows you to adjust not just the engines basic maps, but also various additional features such as Map Sensors, Boost Control by PWM, Launch Control, Flatshift, Antilag. Collect datalogs with either your laptop or to the USB memory with help of the integrated USB Logger function. (4GB memory will cover up to 1000hours of data)

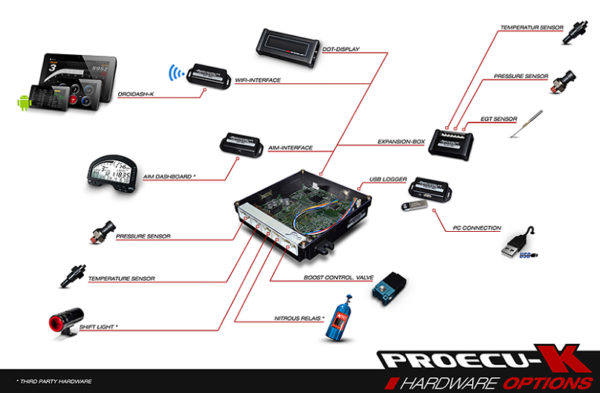

Ask for optional parts such as connection box for external sensors, like EGT or various other analog or digital inputs.



Wireless connect

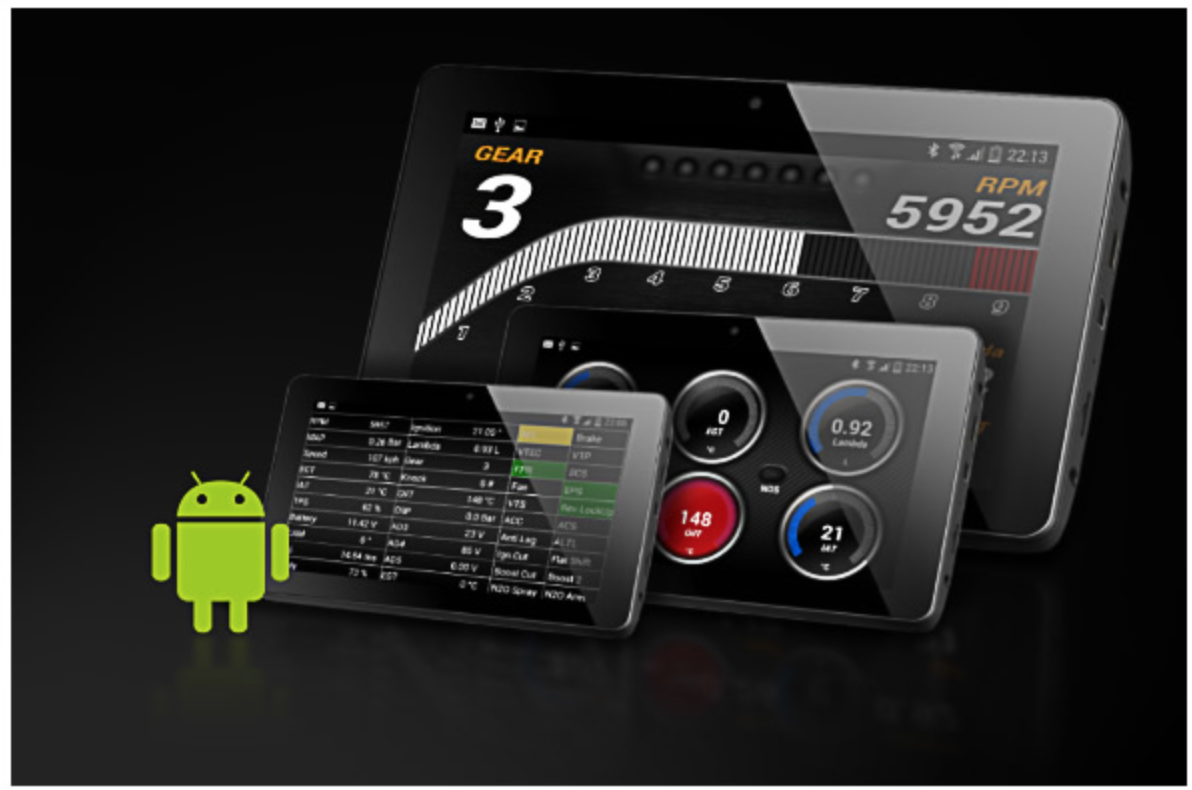

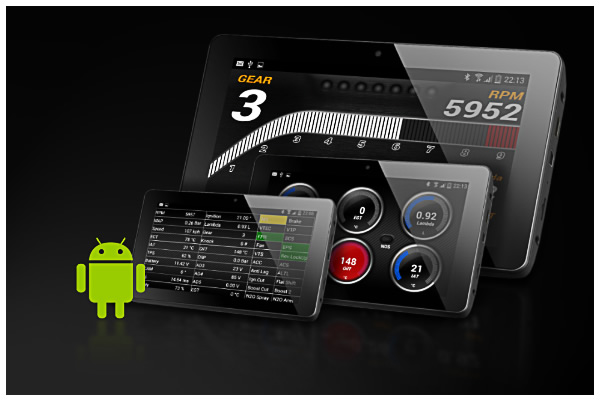

DroiDash-K Android application allows you to connect with your ECU via Wi-Fi. With equipped AIM-Interface RS232 you’ll be able to use AIM MXL type devices such as Pista, Strada.

Compatible ECUs

• PRA-E00 to PRA-E13
• PRB-A00 to PRB-A12
• PRC-…
• PRD-…
• PND-A00 to PND-A09
• PND-A50 to PND-A59 (needs additional auto/manual conversion)
• PNF-A…
• PNL-G…
• PPA-…



Computer system requirements

Windows XP, Vista, 7, 8.1, 10
CPU 1 GHz+
Ram 1 GB+
Harddrive 10MB+
USB 2.0 Port
Resolution 1440×900 or higher

Full list of features:
