Bar-Tek tool for installing RS3 injectors, Audi/VW 2.0TFSI EA113

Drilling template for RS3 and TTRS type injectors on EA113 2.0 TFSI engines

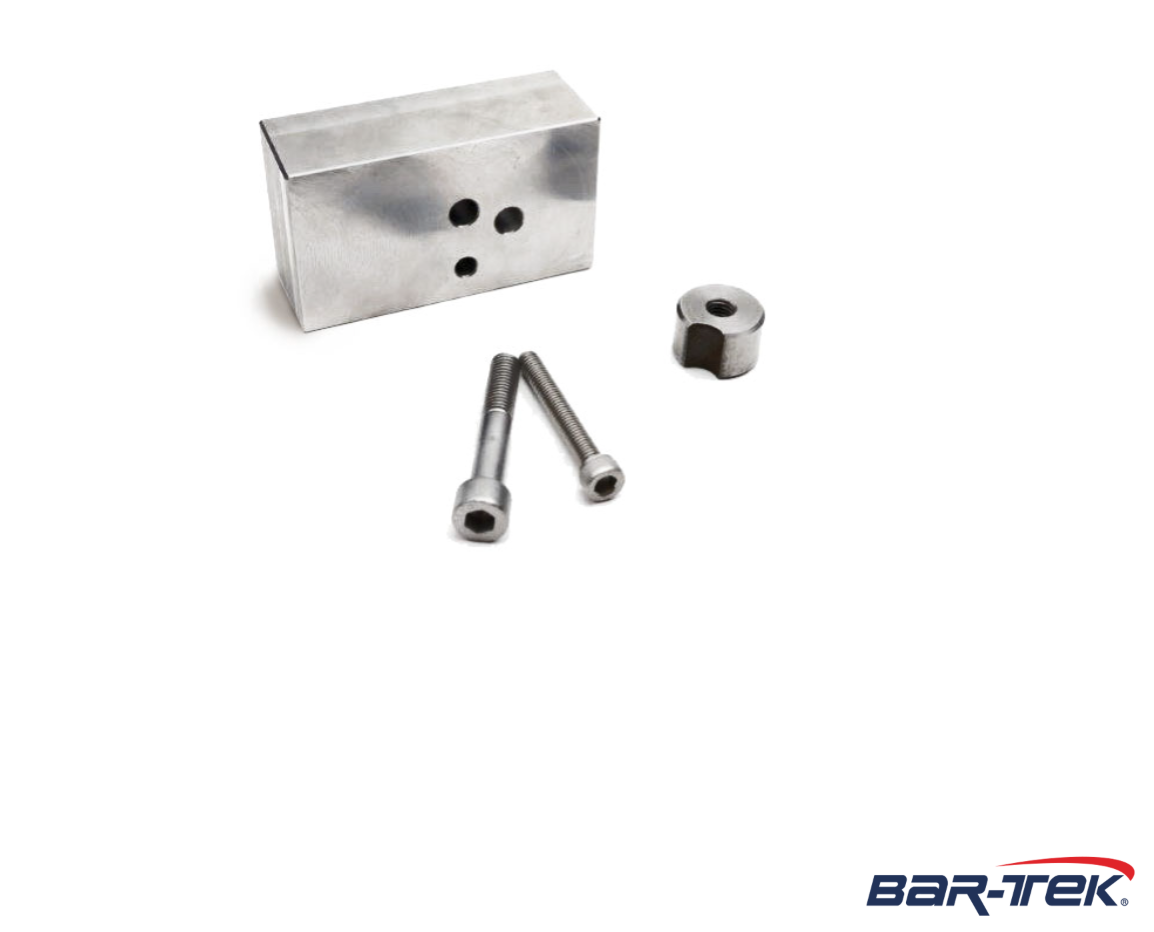

This 2.0L TFSI EA113 drilling template is designed for installing RS3 and TTRS style injectors on cylinder heads that do not have the required offset clearance. On EA113 engines the RS3 injector needs additional space in the head, otherwise the electrical plug can collide with the cylinder head and the injector will not sit deep enough in the combustion chamber.

• Designed for RS3 and TTRS type injector fitment on EA113 2.0 TFSI engines
• Allows precise drilling of the required offset clearance
• Ensures correct injector position deeper into the combustion chamber
• Solid metal construction for perfect fitment on the cylinder head
• Installation direction matches the RS3 cylinder head orientation

What does it do

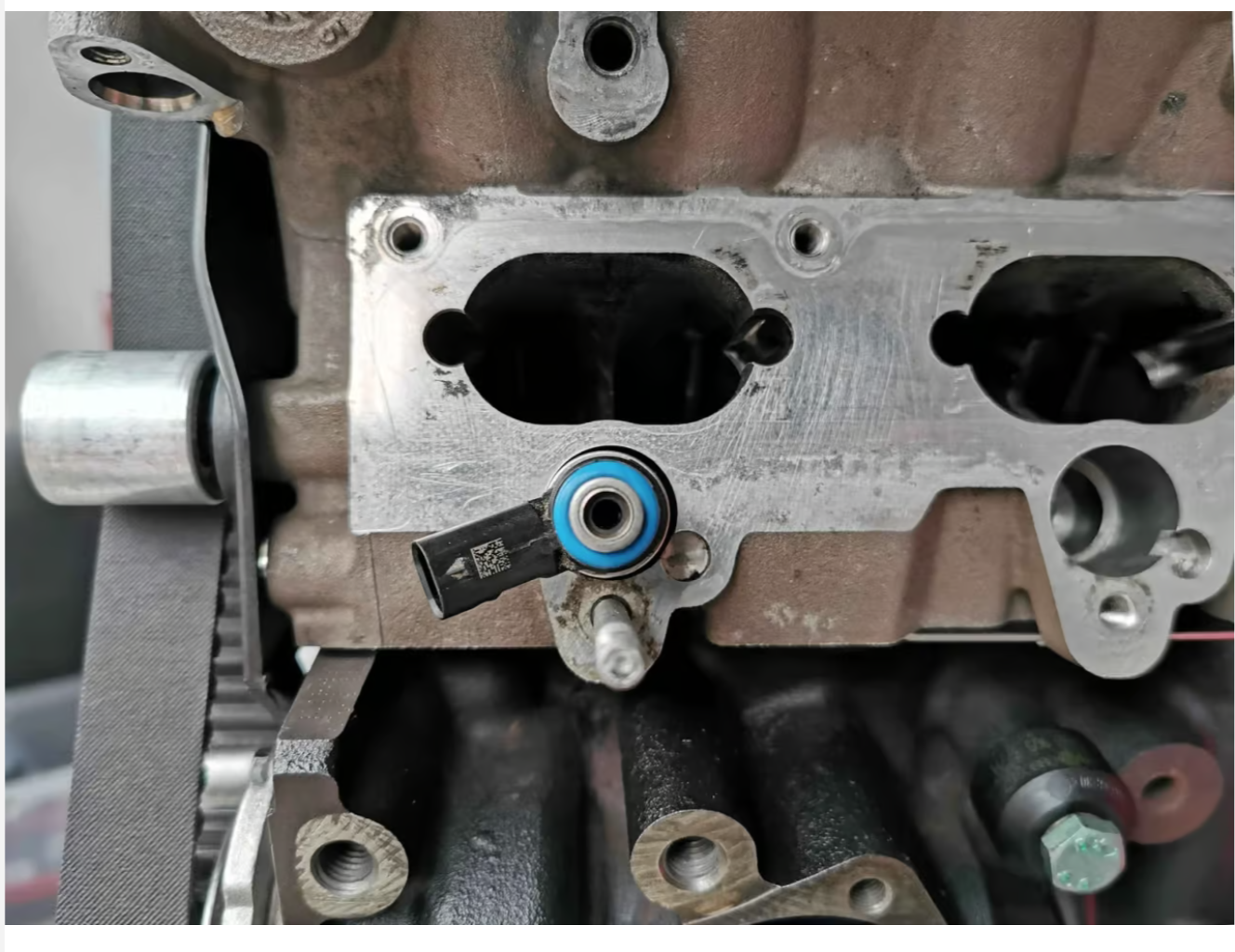

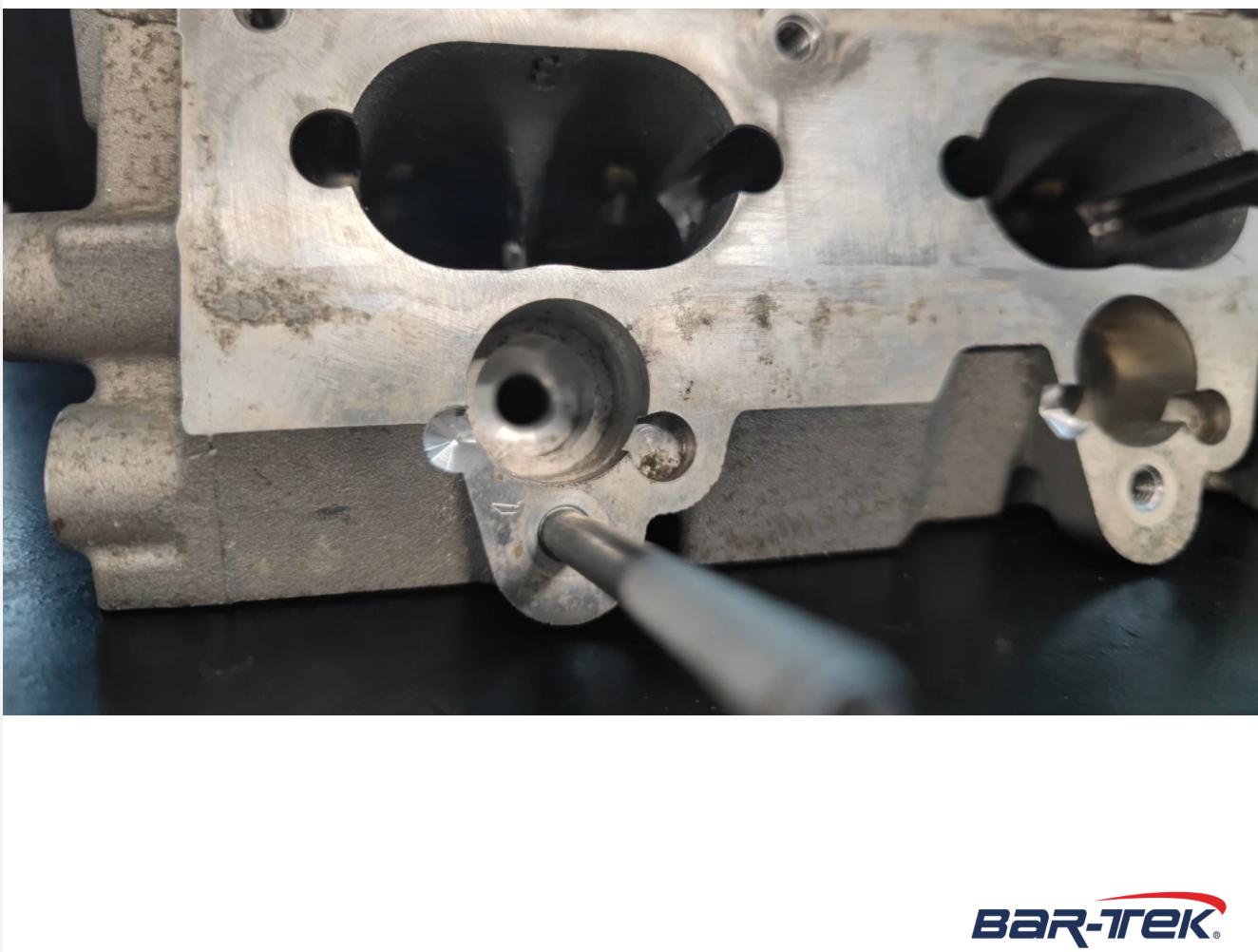

On the EA113 2.0 TFSI cylinder head there is no factory clearance for the RS3 style injector offset. Without this modification, the injector plug can hit the cylinder head and the injector cannot be positioned deep enough into the combustion chamber. This drilling template mounts directly onto the TFSI head, allowing you to drill the required hole precisely in the correct location.

Installation note

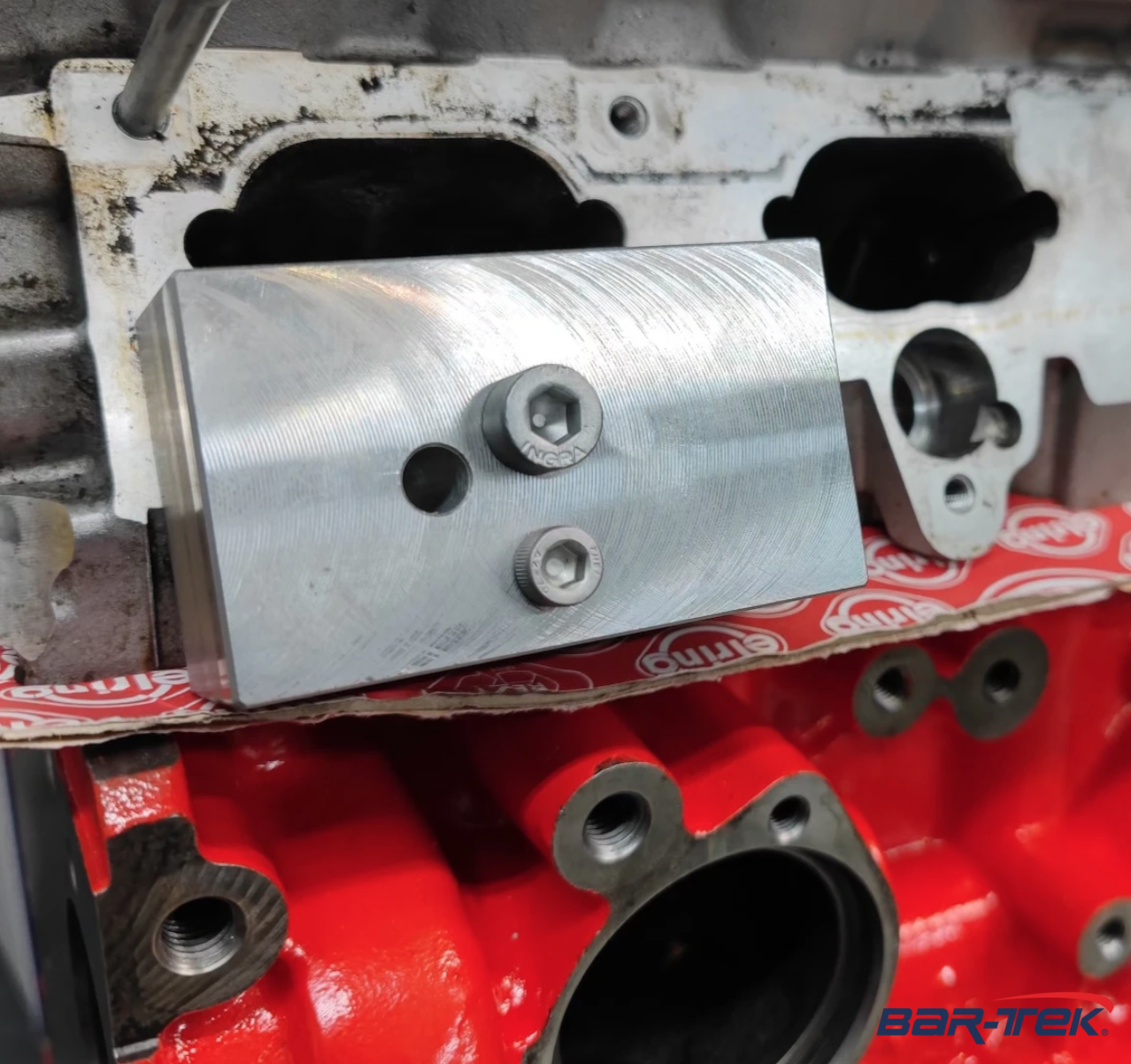

• Mount the drilling template on the TFSI cylinder head
• Drill using an 8 mm drill bit
• Recommended drilling depth approx. 5 to 7 mm

Important note

Professional installation is recommended. Cylinder head machining and drilling is done at your own risk. Always verify correct orientation as on the RS3 cylinder head.

Example compatible models

• Volkswagen Golf Mk6 R 2.0 TFSI
• Audi S3 8P 2.0 TFSI
• Audi TT 8J 2.0 TFSI
