VAG 2.0TFSI EA113 RS3 Injector Kit (up to 500hp)

Bar-Tek RS3 injector set for EA113 2.0 TFSI engines, up to 500 hp

RS3 injectors are a popular fuel system upgrade for EA113 2.0 TFSI engines when tuning beyond 400 hp. For example, the popular TTE480 turbo can push the standard injectors to their limit. This set includes four tested, flow-matched high-pressure injectors and the required adapter connectors, providing a complete solution for a serious build.

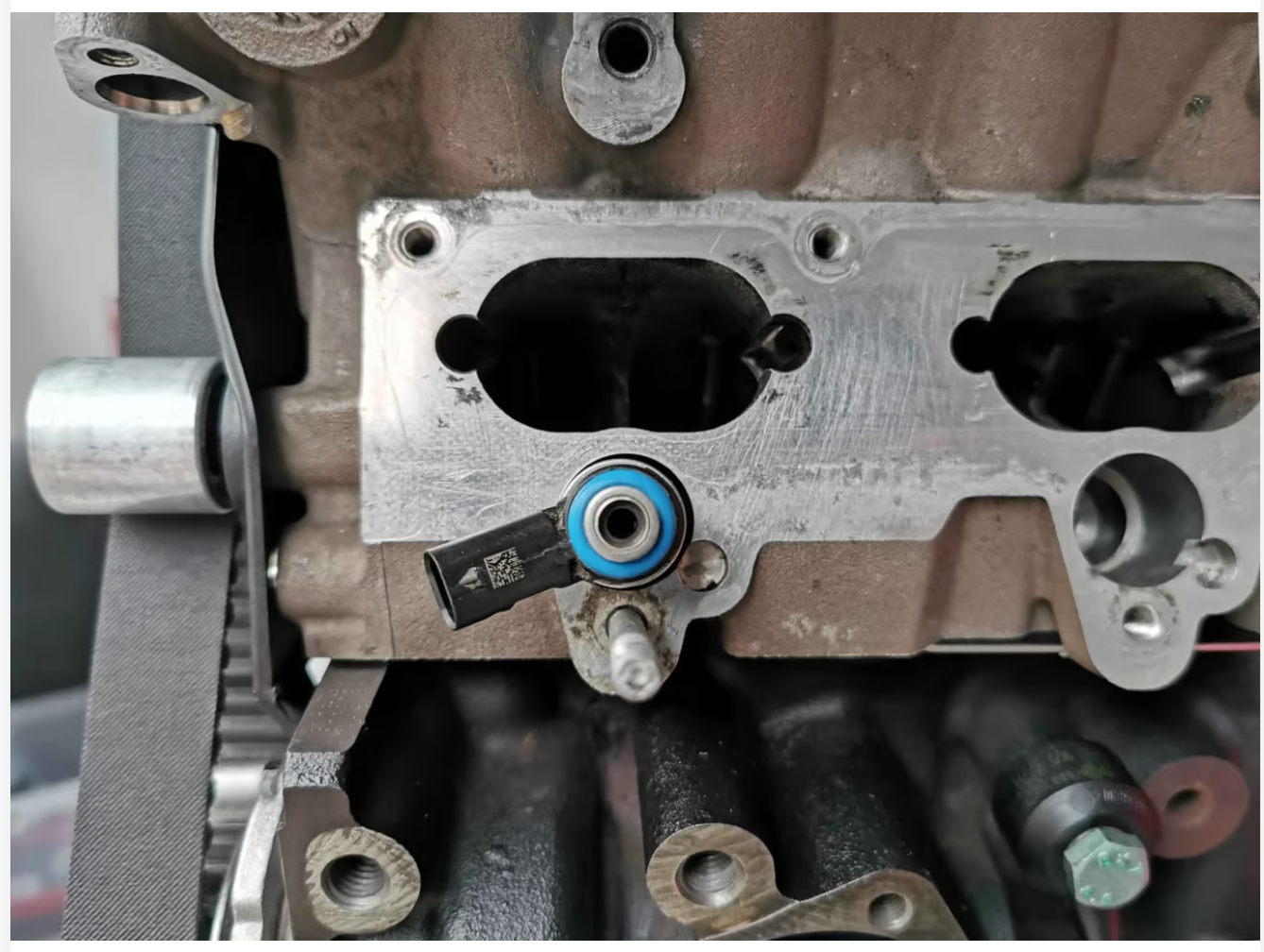

Installation note: The injector seats need a small amount of trimming with a drill to position the injectors correctly. A suitable installation template/tool is available from us; see the related products.

• Complete set of four RS3 injectors for the EA113 2.0 TFSI engine
• Approximately 20% more flow than the original S3 injectors
• Supports over 500 hp at 130 bar fuel rail pressure
• Spray pattern suited to the TFSI combustion chamber
• Injectors tested and flow-matched as a set
• Includes adapter connectors and wiring

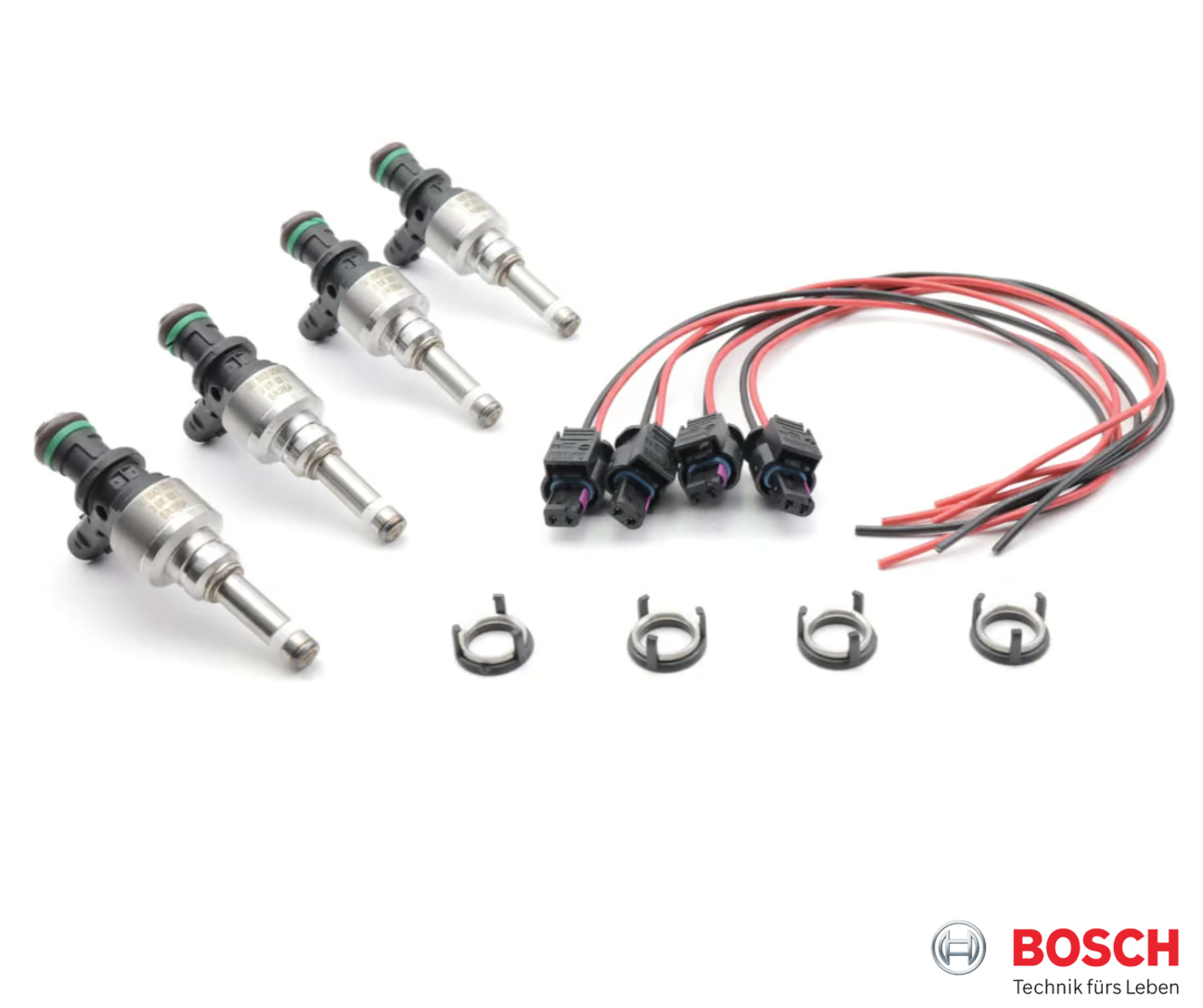

Package contents

• 4 injectors, tested and flow-matched as a set
• Adapter connectors for manual connection to the original wiring

Examples of compatible models

• Volkswagen Golf Mk5 GTI 2.0 TFSI
• Audi S3 8P 2.0 TFSI
• Audi TT 8J 2.0 TFSI
