VW Audi VAG 1.8T 20v IE Connecting rods (144x19mm)

Description

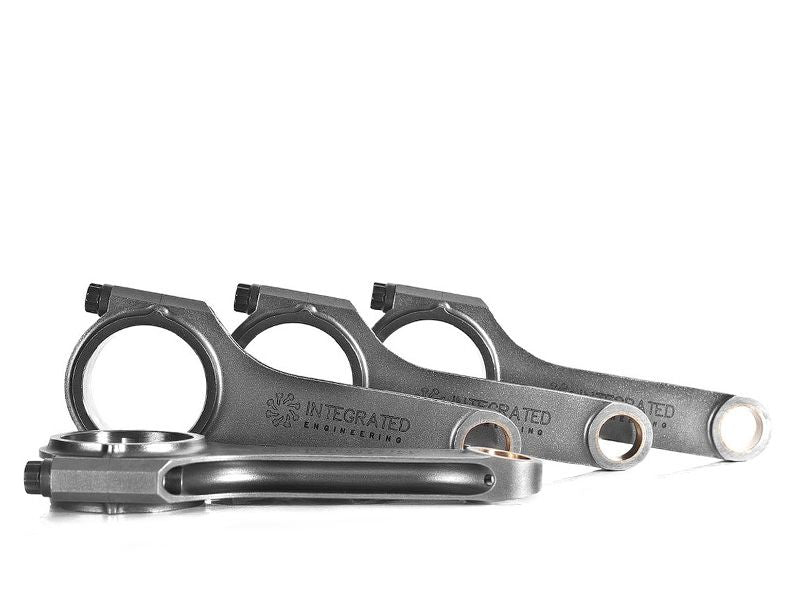

IE forged drop-in rods upgrade the weak stock units without changing the factory pistons. Strengthening your VW/Audi 1.8T 20V 06A engine for a larger turbo or more boost and keep your engine running reliably even up to 700hp builds.

NOTE: These are Drop-in rods with 19 mm wrist pin and tapered upper end, for use with stock 19mm pistons only. For forged pistons with 144x20mm conrods, please see related 144×20 set from our selection.

• Forged from vacuum drawn 2 pieces 4340 chrome moly steel
• Upgraded H beam design greatly increases strength and durability
• Combination tested to 700HP on 4 cylinder engines
• Includes IE Spec ARP 2000 rod bolts with “IE” stamp to ensure a genuine product
• Individual computer-optimized design to match unique VW/Audi engine applications
• Honed to exacting tolerances within 250 millionths of an inch

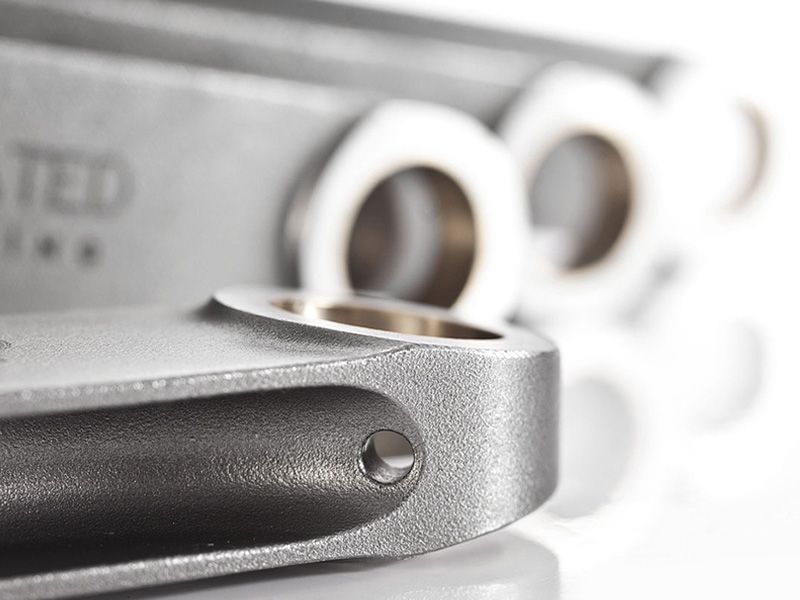

• Optional forced pin oiling (rifle drilling) for long wrist pin life
• Each connecting rod set is balanced to weights within +/- 1 gram
• Dimensionally and magnaflux inspected to ensure extreme reliability
• Multi-stage heat treated for dimensional stability and fatigue life

TECHNICAL DIMENSIONS

• Center to Center: 144mm
• Wrist Pin Diameter: 19mm
• Big End Journal Width: 24.90mm
• Wrist Pin Style: Non-tapered
• Big End Journal Diameter: 50.60mm
• Average Rod Weight (with Bolts): 546 grams
• Rod Bolt Dimensions: 3/8″ x 1.5″ UHL

Connecting rods are some of the highest stressed components in an engine and thus require extreme attention to detail to ensure proper operation and reliability.  Integrated Engineering ensures the success of your next engine build by putting each set of connecting rods through a rigorous quality control process. For years Integrated Engineering H-beam Rods have been an integral part of delivering the power that the highest powered turbo setups and race engines demand.

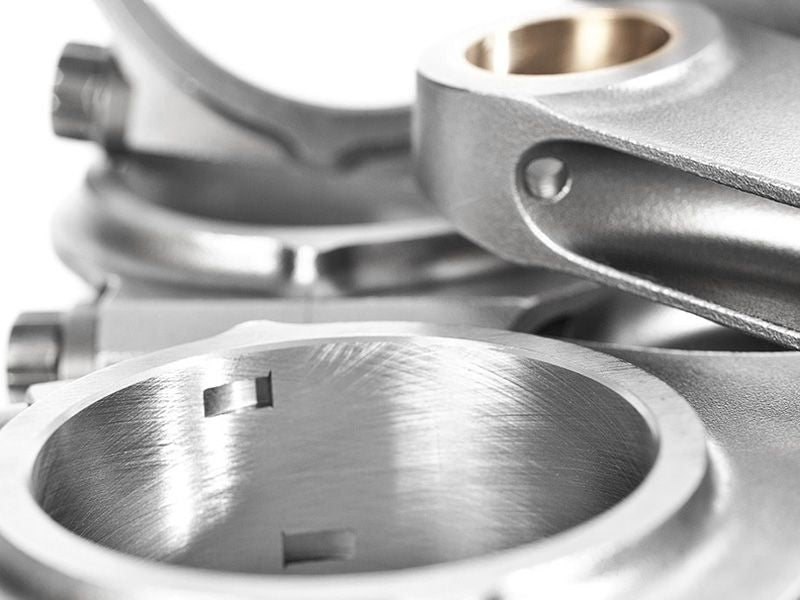

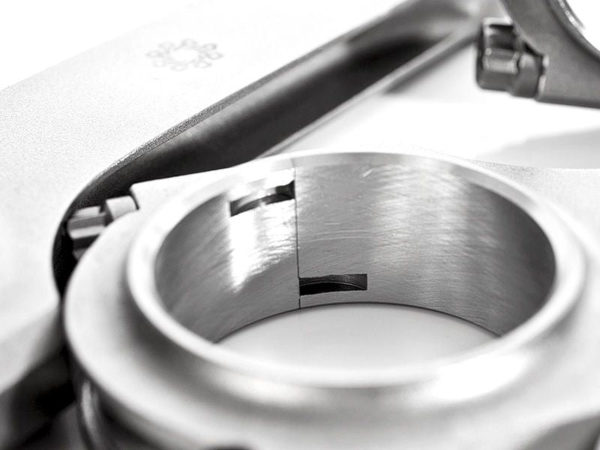

Extra attention has been paid to even the smallest details such as the bearing tangs, wrist pin fit, and big end side clearance, providing a level of fit and finish not found anywhere else. Each and every set is finish machined and honed in-house for perfectly round and on size big-end bores, resulting in the industry’s lowest failure rates. All rods in this series feature generous wrist pin oiling and optional rifle drilling.  One of the hallmarks of a high quality connecting rod is its strength to weight ratio. In order to create this balance of strength and lightweight, our optimized H beam design is utilized and validated using modern CAD drafting and FEA analysis techniques. These techniques ensure the rod is as light and strong as possible, perfected for today’s powerful and high rpm European applications.

VEHICLE FITMENT

• Audi – A4 1996-2001 (B5 – B5.5) 1.8T 20V 058 & 06A engines
• Audi – A4 2002-2005 (B6) 1.8T 20V engines
• Audi – A4 2005-2008 (B7) 2.0T FSI EA113 engines
• Audi – A6 1998-2004 (C5) 1.8T 20V engines
• Audi – A6 Allroad 1998-2004 (C5) 1.8T 20V engines
• Audi – A6 2005-2011 (C6) 2.0T FSI EA113 engines
• Audi – A6 Allroad 2005-2011 (C6) 2.0T FSI EA113 engines
• Audi – TT 2000-2006 (MK1 – 8N) 1.8T 20V engines
• Audi – TT 2008-2015 (MK2 – 8J) 2.0T FSI EA113 engines (timing belt driven engines only)
• Audi – TTS 2008-2015 (MK2 – 8J) 2.0T FSI EA113 engines
• Audi – A3 1996-2003 (MK1 – 8L) 1.8T 20V engines
• Audi – S3 1996-2003 (MK1 – 8L) 1.8T 20V engines
• Audi – A3 2006-2013 (MK2 – 8P) 2.0T FSI EA113 engines (timing belt driven engines only)
• Audi – S3 2006-2013 (MK2 – 8P) 2.0T FSI EA113 engines
• VW – Golf 1993-1999.5 (MK3) 2.0L 8V engines & 2.0L 16V ABF engines
• VW – Golf 1999-2005 (MK4) 1.8T 20V engines & 2.0L 8V engines
• VW – GTI 1999-2005 (MK4) 1.8T 20V engines
• VW – GTI 2006-2009 (MK5) 2.0T FSI EA113 engines (timing belt driven engines only)
• VW – Golf R 2012-2012 (MK6) 2.0T FSI EA113 engines
• VW – Corrado 1988-1995 (A3) G60 & 2.0L 16V ABF engines
• VW – Jetta 1993-1999 (MK3) 2.0L 8V & 2.0L 16V ABF engines
• VW – Jetta & Jetta GLI 1999-2005 (MK4) 1.8T 20V & 2.0L 8V engines
• VW – Jetta & Jetta GLI 2006-2010 (MK5) 2.0T FSI EA113 engines (timing belt driven engines only)
• VW – Beetle 1998-2011 (1C – 9C – 1Y) 1.8T 20V, 2.0L 8V engines, & 2.0T FSI EA113 engines (timing belt driven engines only)
• VW – Passat 1998-2005 (B5 – B5.5) 1.8T 20V 058 & 06A engines
• VW – Passat 2006-2010 (B6) 2.0T FSI EA113 engines (timing belt driven engines only)
• VW – EOS 2006-2015 (1F7) 2.0T FSI EA113 engines (timing belt driven engines only)

PISTON FITMENT GUIDE

Audi – A4 1996-2001 (B5 – B5.5) 06A 1.8T 20V engines*
Audi – A4 2002-2005 (B6) 06A 1.8T 20V engines*
Audi – A6 1998-2004 (C5) 06A 1.8T 20V engines*
Audi – A6 Allroad 1998-2004 (C5) 06A 1.8T 20V engines*
Audi – TT 2000-2006 (MK1 – 8N) 06A 1.8T 20V engines*
Audi – A3 1996-2003 (MK1 – 8L) 06A 1.8T 20V engines*
Audi – S3 1996-2003 (MK1 – 8L) 06A 1.8T 20V engines*
VW – Golf 1999-2005 (MK4) 06A 1.8T 20V engines*
VW -GTI 1999-2005 (MK4) 06A 1.8T 20V engines*
VW -Jetta & Jetta GLI 1999-2005 (MK4) 06A 1.8T 20V engines*
VW -Beetle 1998-2011 (1C – 9C – 1Y) 06A 1.8T 20V engines*
*ENGINE CODES: AMB, ARX, ARY, AUM, AUQ, AWM, AWP, AWW, BJX

*FITS STOCK PISTONS WITH 19MM TAPERED WRIST PINS ONLY
