VAG 1.8T 20V high torque crank pulley, Bar-Tek

Timing Belt Gear Main Bolt for 1.8T and 2.0L TFSI Engines

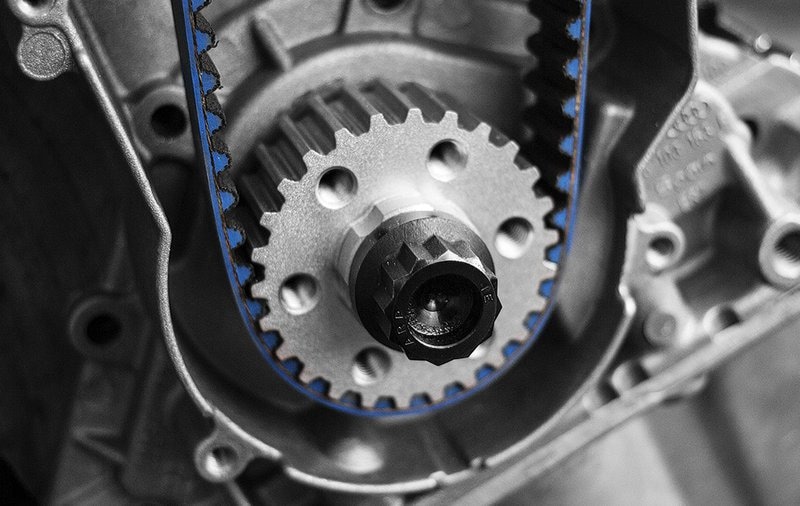

This gear wheel main bolt, crafted by the well-known U.S. manufacturer ARP, is designed to enhance the strength of the timing belt system in 1.8T and 2.0L TFSI engines.

By using this bolt, you can address a common weakness in Audi and VW engines: the connection between the timing belt drive and the crankshaft. The original components have a high tolerance for movement, which often results in the crankshaft’s guide groove wearing out quickly. This is especially problematic for tuned engines, where the increased power output can accelerate this issue.

Our upgraded bolt provides superior clamping force and is built to aviation standards. Made from high-strength steel, it can be reused, making it ideal for high-performance applications.

Key features of the ARP main bolt for the gear wheel:

• 10% higher clamping force
• Complies with aviation standards
• Made from high-quality, hardened steel
• Reusable
• Plug & play installation (same wrench size)
• Developed in collaboration with ARP

Compatibility:

• 1.8T 20V transverse engines (e.g., Golf MK4)
• 2.0L TFSI engines (e.g., AXX, BWA, BWE, BPY, CDL)
• Not compatible with 2.0L TSI chain-driven engines (e.g., Golf MK6 with 211 hp)
• Not compatible with 1.8T longitudinally mounted engines (e.g., AEB engine)

This bolt works perfectly with our high-torque crank gear kit. Use stock torque specs: 90 Nm + 90°.
