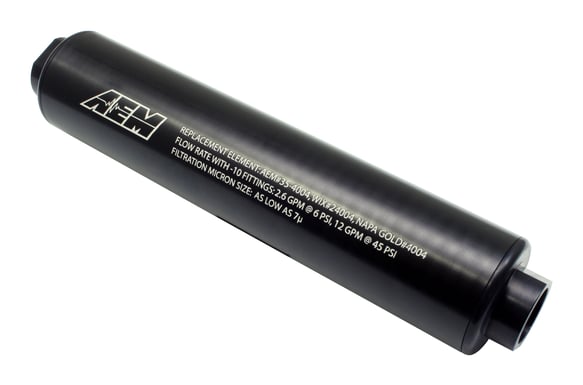

AEM Universal High Volume Fuel Filter – 25-201BK

The AEM 25-201BK High Volume Inline Fuel Filter is designed for high-performance fuel systems that require maximum flow without compromising filtration. Built with -10AN O-ring ports and a robust 6061-T6 aluminum housing, this filter supports gasoline, diesel, E85 and blended fuels while maintaining exceptional durability and sealing performance.

Thanks to its large 2″ outer diameter and 10″ length, the filter can be mounted almost anywhere in the vehicle. Service is easy with commonly available 7-micron replacement filter cartridges. Viton seals ensure consistent performance even with aggressive fuels. Designed to support serious power levels, the filter flows up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI.

Main Features

• High-flow -10AN inline filter for universal installation
• Flows up to 12.32 gpm @ 45 PSI and 2.63 gpm @ 6 PSI
• 7-micron filtration capability
• 6061-T6 aluminum body with black hard anodized finish
• Viton O-rings and gaskets – compatible with gasoline, diesel, alcohol & E85
• -10 AN female fittings with O-ring receiver grooves

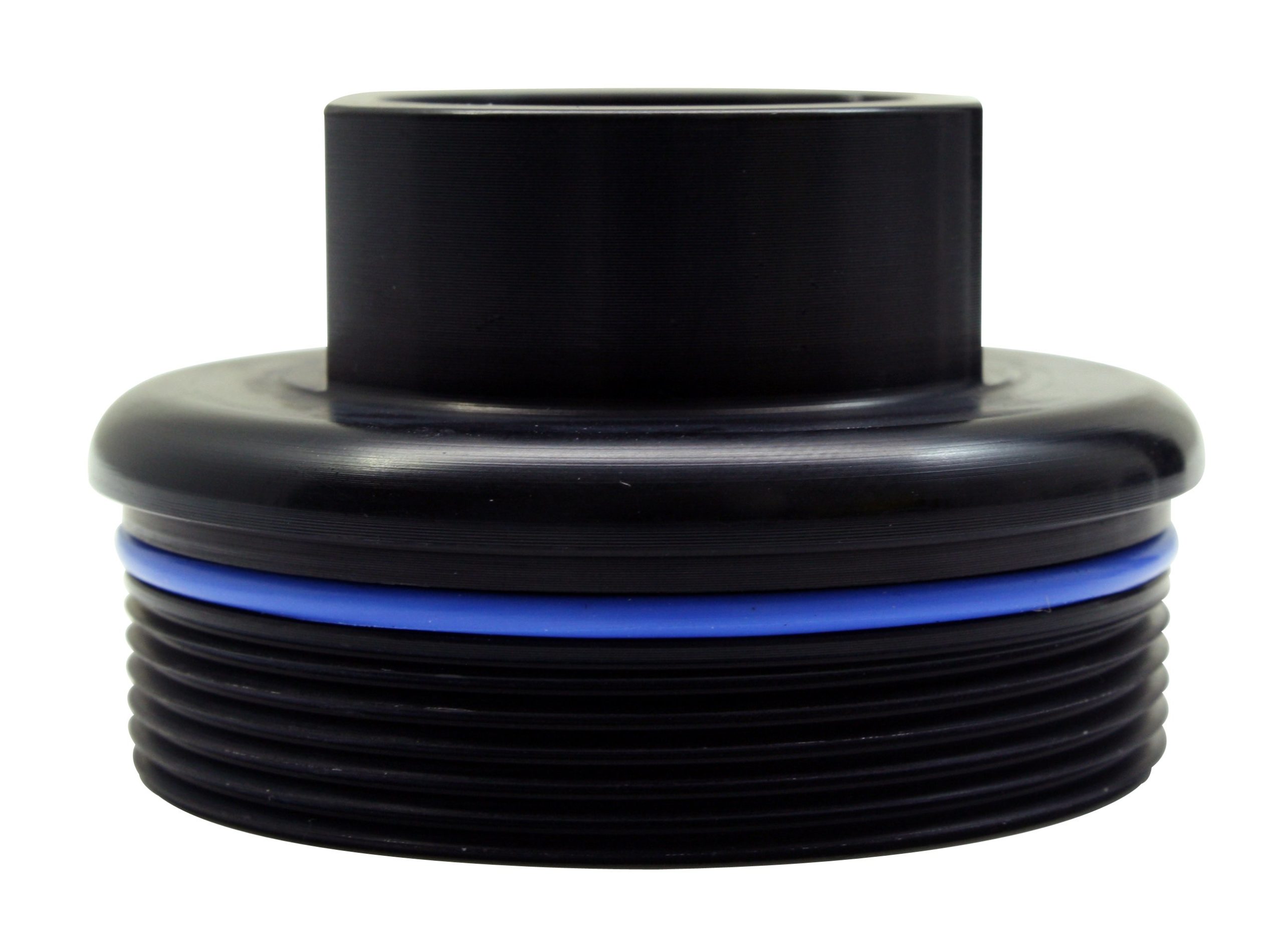

• Pressure intensifiers in the end caps for improved sealing
• Easy to mount: 2″ outer diameter and 10″ overall length
• Laser-etched AEM branding and flow direction

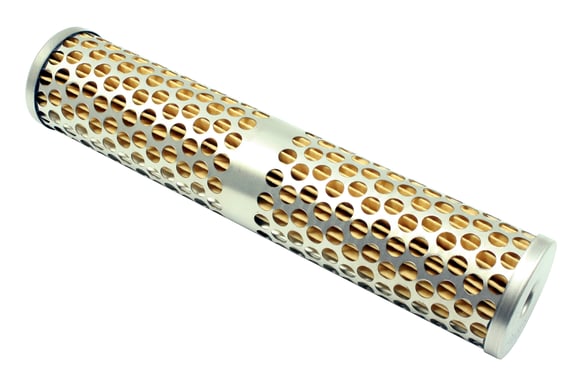

• Common replacement cartridges available

Specifications
