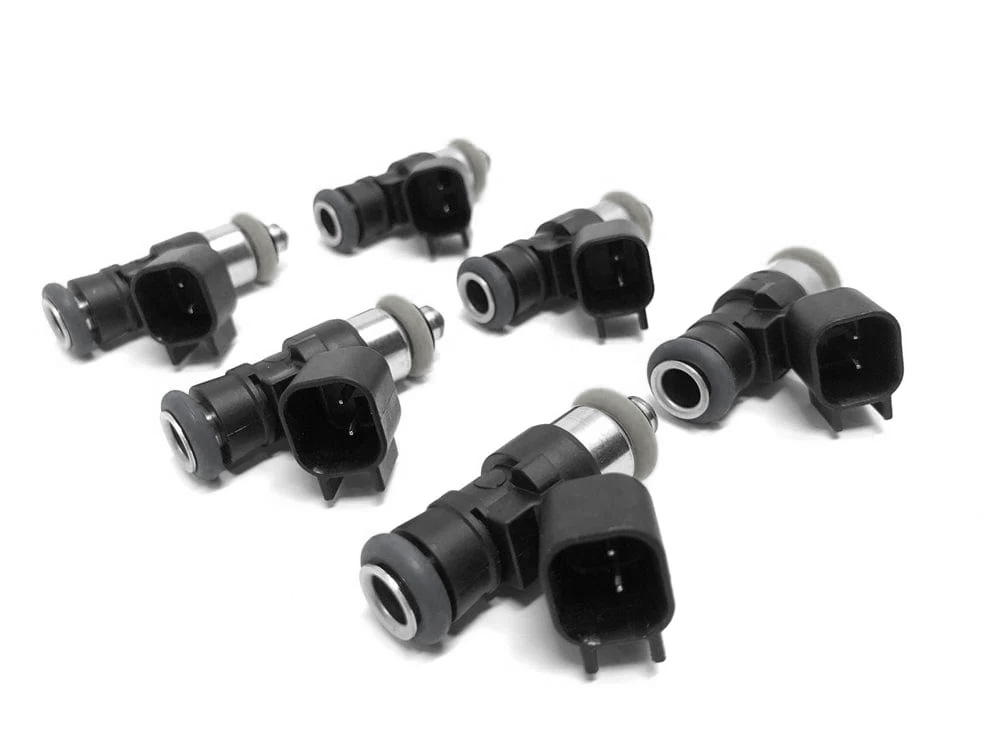

Bosch EV14 1100cc injectors (6kpl, e.g. BMW PI)

1100cc Bosch EV14 Injectors, 6 pcs set, USCAR, short 34 mm

This matched set of 6 Bosch EV14 injectors is a very common and proven choice for BMW 6-cylinder port injection builds. If you need solid headroom, good drivability and E85 compatibility, this kit often lands right in the sweet spot.

• 6 pcs set, supplied as selected and flow-bench matched sets
• 12 Ohm, high-impedance
• Short body, approx. 34 mm O-ring spacing, fits applications that use short injectors
• USCAR style connector
• Compatible with E85/RE85 and common gasoline fuels
• 14 mm ethanol and gasoline resistant O-rings on both ends
• Modified new Bosch EV14 injector, ball-to-seat tip
• Conical spray pattern
• EV14-1100-S, C15

Flow and capacity
Max flow approx. 1060 cc/min at 3 bar, 1200 cc/min at 4 bar, 1400 cc/min at 5 bar, 1540 cc/min at 6 bar.
Total flow per set typically measures 1040–1120 cc/min at 3 bar depending on the matched set. Nominal flow rates: 1080 cc/min at 3 bar, 1245 cc/min at 4 bar, 1395 cc/min at 5 bar.
