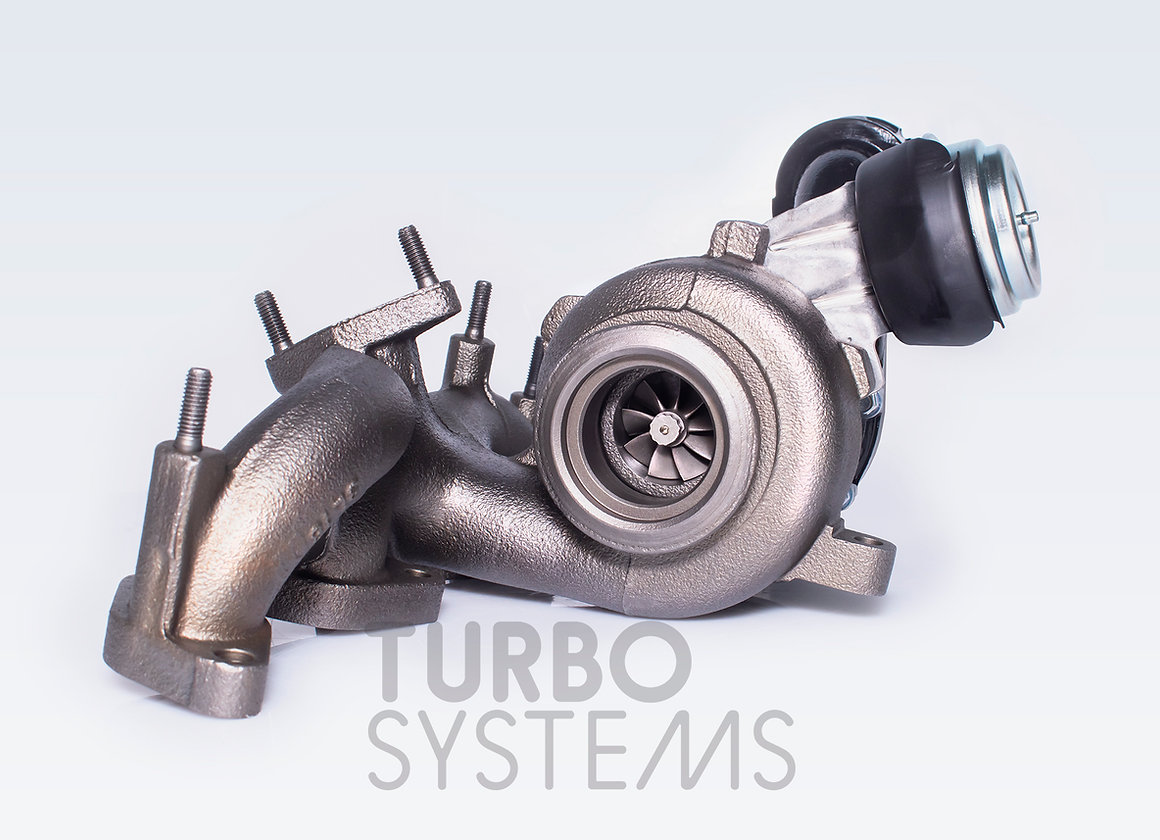

Turbosystems upgrade turbo for VAG BKD / AZV 2.0TDI engines
Turbosystems manufactures reasonably priced, high end turbos for tuners. These bad boys are designed for high boost applications, to work reliably under heavy load. The signature black compressor can be spotted in many engine bays, as well as from the spec lists of fast Dragy runs, quarter mile results and track day posts.
Installing turbo and compatibility
These units are made to fit directly in place of OEM turbo. No modification or magic tricks, add a professionally made tune for your engine and enjoy the capacity of your new Turbosystems unit.
Benefits of hybrid turbo
Reinforced upgrade turbo has many benefits over the stock unit. While it obviously flows better and is capable for much bigger power and torque figures, it also has reinforced components that can be used at high boost levels without compromising reliability. Typically engine characteristics change in favourable way, offering a much more lively upper rpm range compared to stock turbo.
Turbosystems BKD / AVZ turbo – capable for +220hp
- Reinforced bearing for heavy use
- CNC machined compressor housing
- CNC machined turbine
- Upgraded Variable VGT nozzle
- Enlarged and reinforced compressor wheel (39/52mm)
- Enlarged and upgraded turbine wheel
- VSR balanced, optimized in flow bench
Examples of compatible models
Model | Year | Engine code | Power (KW / HP) | Garrett nr. | OEM nr. |
Audi A3 2.0 TDI (8P/PA) | 2003 – 2008 | BKD / AZV | 103 / 140 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 | 03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
Seat Altea 2.0 TDI | 2004 – 2007 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 | 03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
Seat Leon 2.0 TDI | 2005 – 2007 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 | 03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
Seat Toledo III 2.0 TDI | 2004 – 2007 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 | 03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
Skoda Octavia II 2.0 TDI | from 2004 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 | 03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
Volkswagen Golf V 2.0 TDI | 2003 – 2009 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 | 03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
Volkswagen Passat B6 2.0 TDI | 2005 – 2008 | BKD / AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 | 03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
Volkswagen Passat B6 2.0 TDI | 2005 – 2008 | BKP | 103 / 140 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 | 03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
Volkswagen Touran 2.0 TDI | from 2003 | AZV | 100 / 136 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 | 03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
Volkswagen Touran 2.0 TDI | from 2003 | BKD | 103 / 140 | 724930-5010S 724930-5009S 724930-9009S 724930-5008S 724930-0006 724930-0004 724930-0002 | 03G253014H 03G253014HX 03G253014HV 03G253019A 03G253019AX 03G253019AV 03G253010J |
