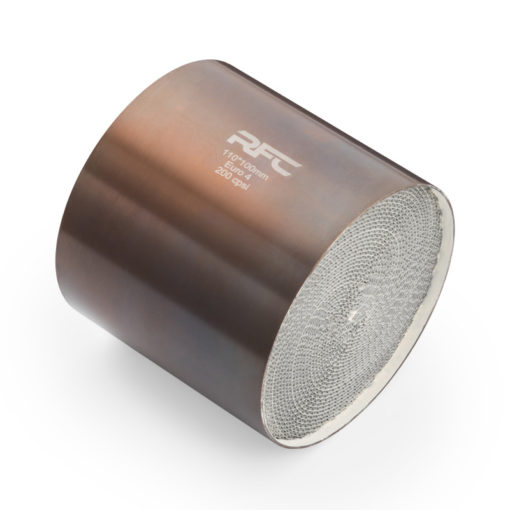

RFC universal catalytic cell, insert (400-600CPI)

Universal Catalytic Converter Cell – For DIY Builders

A universal and versatile catalytic converter cell designed to be installed and fixed inside the exhaust system. Compatible with gasoline engines and LPG systems.

This cell type is available in 400 and 600 CPI densities, providing filtration efficiency corresponding to EURO 4, 5, and 6 standards. See our separate Sport model cells with 10 and 200 CPI densities.

• Permanent heat resistance up to 950 °C
• Instantaneous heat resistance up to 1100 °C
• Available in various sizes – select the cartridge based on housing diameter and length

Depending on the chosen configuration, the catalytic converter cell meets the following EU emission standards:

• EURO 2 (94/12/EC, 96/69/EC) – Passenger cars, since 1996
• EURO 3 (98/69/EC) – All vehicles, since 2000
• EURO 4 (98/69/EC, 2002/80/EC) – All vehicles, since 2005
• EURO 5 (2007/715/EC) – Passenger and light commercial vehicles, since 2009
• EURO 6 (EU 459/2012) – All vehicles, since 2014

Installation tip: Measure the internal diameter and length of the catalytic converter housing. Subtract the wall thickness, as the cell is mounted inside. For example, if the housing diameter is 110 mm, a 105 mm cell is suitable.

Note: Some cell types are special-order items. Return or exchange is not guaranteed unless agreed in advance.
