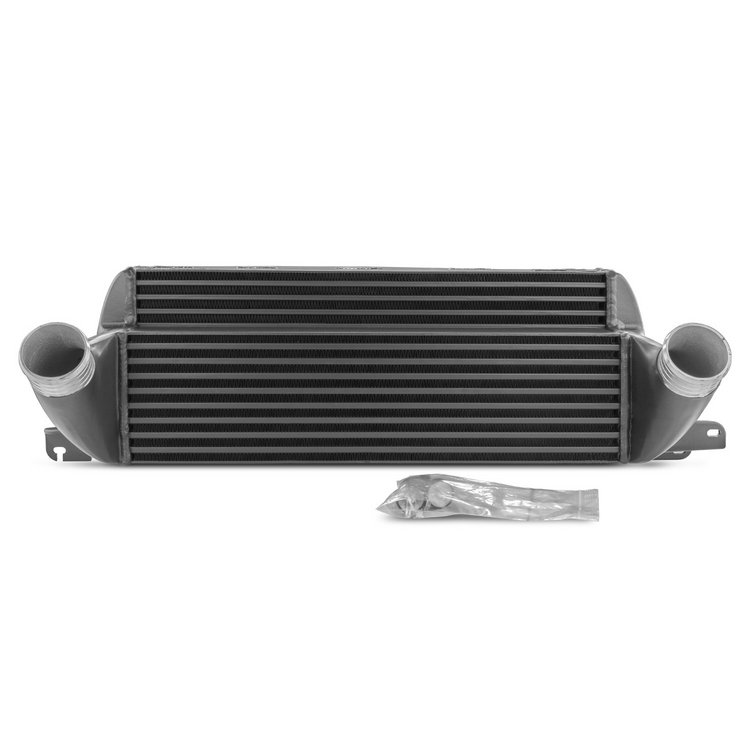

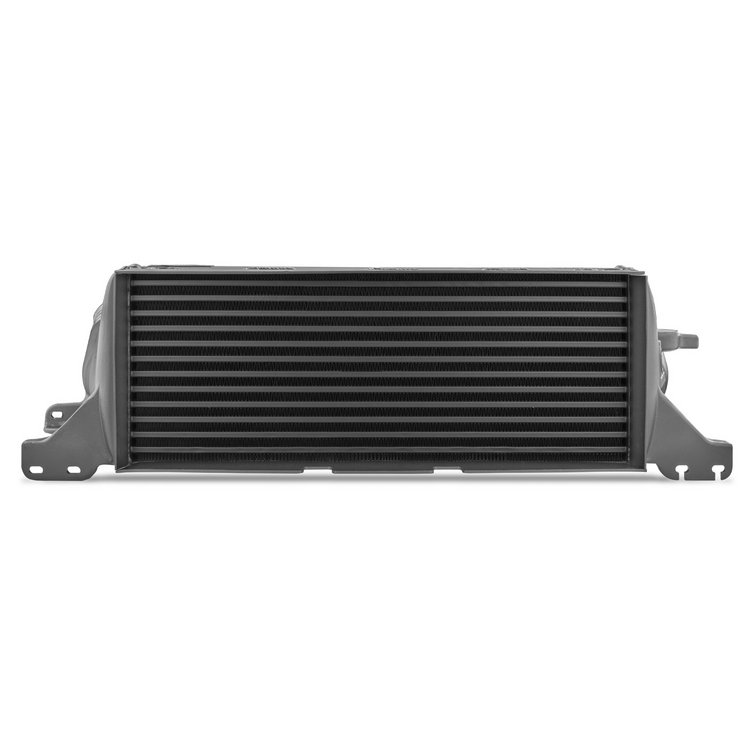

Wagner EVO1 Intercooler Kit, Ford Mustang MK6 2.3 Ecoboost

Benefits of the Evo 1 Intercooler:

– 45% larger inlet area and 130% greater charge air volume compared to the OEM intercooler

– Pressure tested up to 6 bar

– Wagner Tuning EVO1 intercooler dimensions: 535 mm x 206 mm x 150 mm (stepped), volume: 14 liters, surface area: 1100 cm²

– Weight: 13.2 kg

This intercooler boasts impressive dimensions of 535 mm x 206 mm x 150 mm, providing 45% more flow area and an astonishing 130% more volume compared to the factory intercooler. The efficient Competition core ensures that adjacent components, like the radiator, receive adequate airflow for optimal operating conditions.

With CAD-designed free-form cast aluminum end tanks, this intercooler allows for excellent internal airflow. It has been pressure tested to 6 bar to guarantee the highest quality. Our series includes a custom air duct that ensures your intercooler is always optimally ventilated.

Installation is straightforward, and you can trust the high-quality craftsmanship of our products. The Evo 1 intercooler is designed to enhance your vehicle’s performance and is also suitable for racing.

Key Features:

• 45% larger inlet area
• 130% greater charge air volume
• Pressure tested to 6 bar
• Dimensions: 535 mm x 206 mm x 150 mm
• Volume: 14 liters
• Surface area: 1100 cm²
• Weight: 13.2 kg

Applications:

Ford Mustang 2.3l EcoBoost 2015+ (including facelift)

Original intercooler dimensions:
525 mm x 145 mm x 80 mm
Volume = 6.1 liters
Surface area = 761 cm²

Wagner Tuning EVO1 intercooler dimensions:
535 mm x 206 mm x 150 mm
Volume = 14 liters
Surface area = 1100 cm²

Weight: 13.2 kg

Included:
– 1x black coated intercooler
– Installation materials
– Installation instructions
