Wagner Intercooler Kit, Hyundai i20N 1.6 T-GDI 2021+

Discover the ultimate performance upgrade for your Hyundai i20 N with the brand new Wagner Tuning Competition intercooler, now with TÜV certification.

The benefits of the Wagner Tuning intercooler include:

• Improved airflow
• 46% larger inlet area
• 98% larger core volume
• Weight: 8.5 kg
• Flow-optimized air guide
• Minimal back pressure

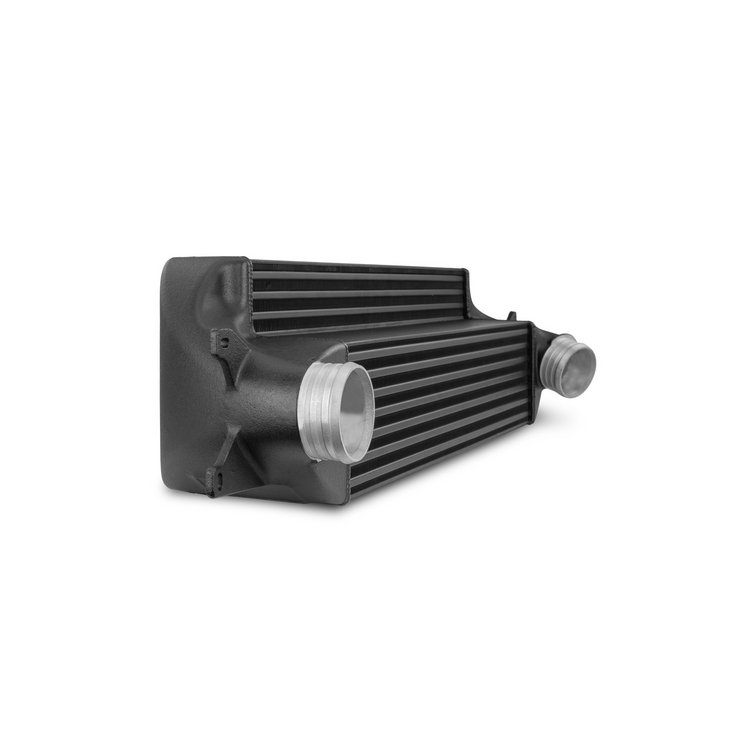

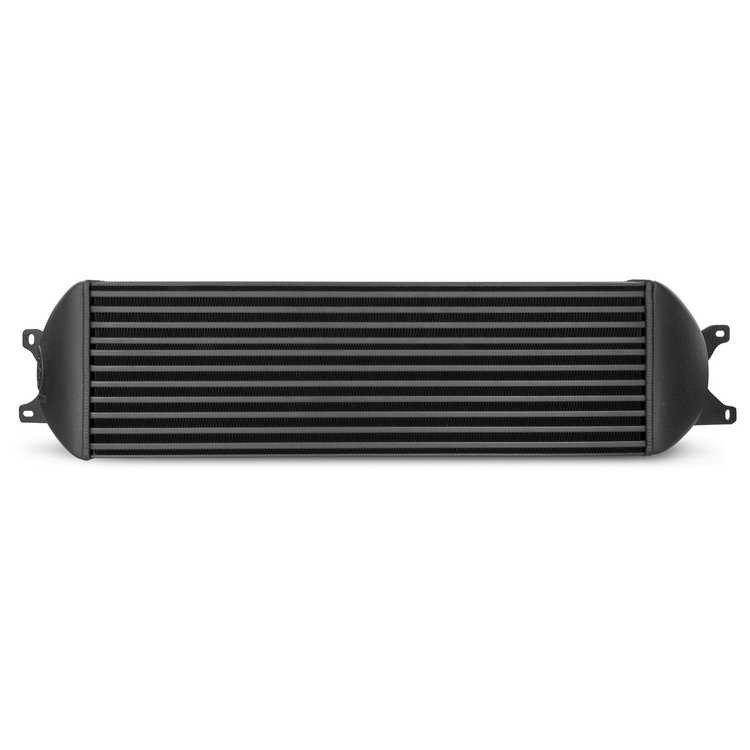

This intercooler impresses with its innovative Competition design (Tube Fin) and remarkable dimensions of 580 mm x 181 mm x 70 mm + 580 mm x 120 mm x 80 mm (stepped core: 12.9 liters), specifically tailored to meet the demands of the Hyundai i20 N. With a staggering 46% larger inlet area and 98% greater internal volume compared to the stock intercooler, the Wagner Tuning intercooler keeps temperatures in check.

High-quality cast aluminum end tanks are optimized using CAD design and CFD simulations to ensure ideal internal airflow. The result is excellent cooling properties with minimal back pressure. Additionally, the innovative intercooler core ensures sufficient airflow to adjacent components, such as the radiator, with a custom air guide. This kit is the perfect choice for racing, providing optimal cooling of charged air and significantly enhancing performance.

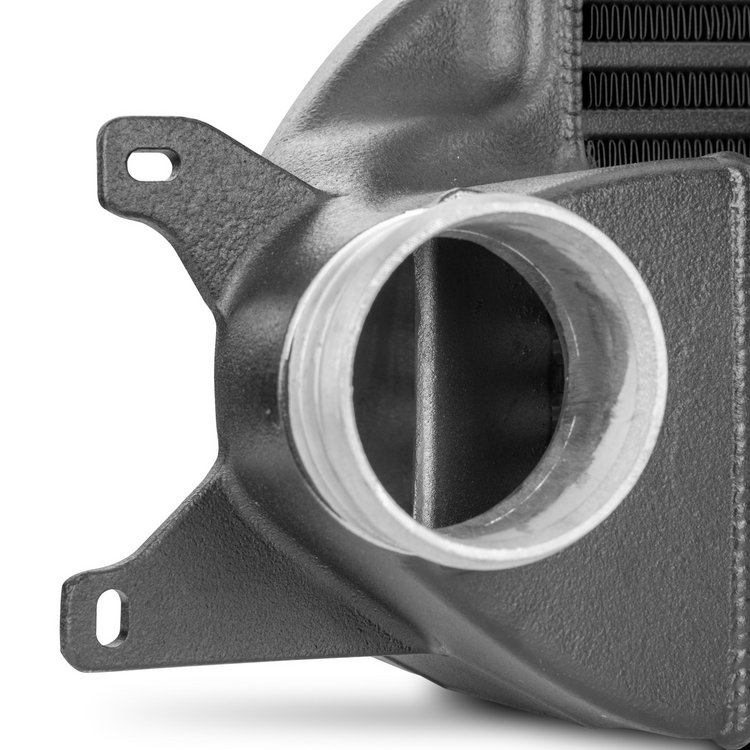

This intercooler features an impressive Ø65 mm inlet and outlet diameter, allowing for optimal flow and greatly boosting the performance of the Hyundai i20 N.

Compatibility:

Hyundai i20 N 150KW/204PS (2021-)

OEM intercooler dimensions:

Volume = 6.5 L
Area = 720 cm²

Wagner Tuning intercooler dimensions:

Volume = 12.9 L (+98%)
Area = 1050 cm² (+46%)
Weight = 8.5 kg

Included in the package:

• Intercooler
• 2x silicone hoses
• 4x clamps

Applications:

• Hyundai i20 N
