Spool Stage 3 Low Pressure Fuel Pump [FXX N55]

Spool Stage 3 Low Pressure Fuel Pump [FXX N55]

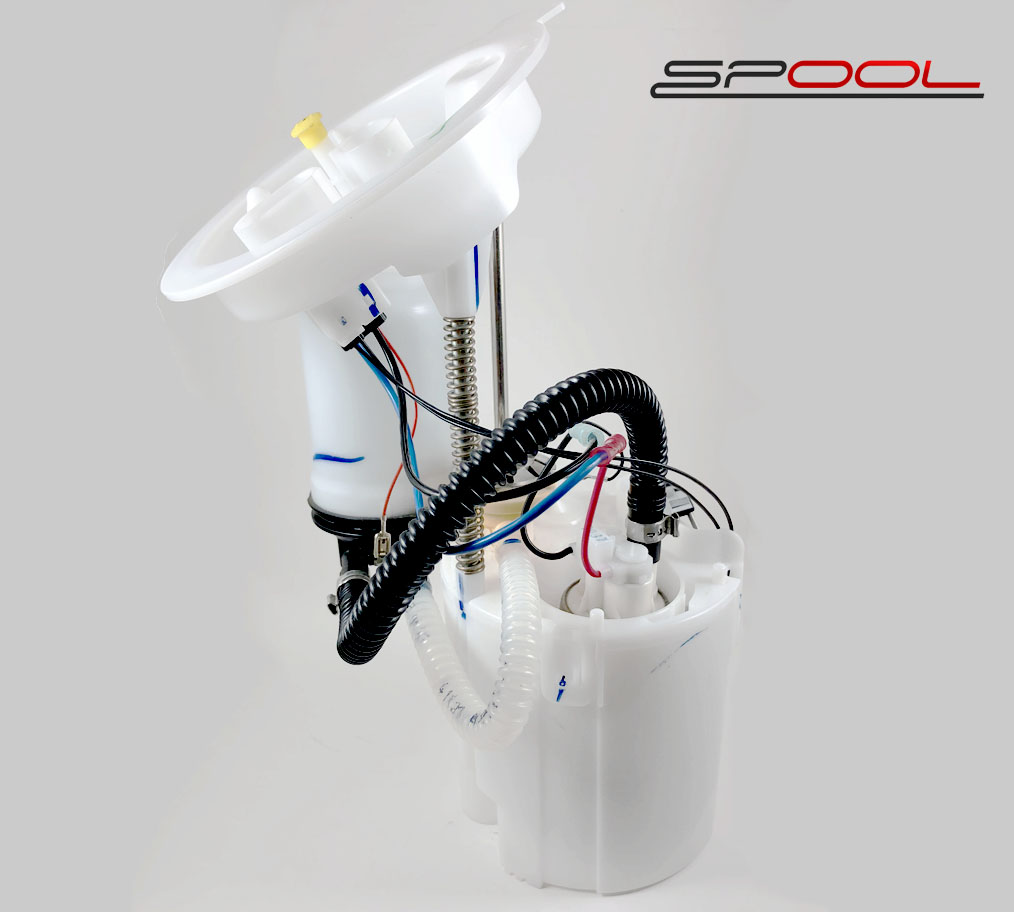

The Spool Stage 3 LPFP kit increases low-side fuel delivery from the tank to the high-pressure pump. Once the direct-injection pump and injectors are upgraded, the factory in-tank pump can become the restriction, particularly on ethanol and higher-power builds.

Depending on the application, the system uses an additional or dual-pump arrangement that brings the extra pump online under load. This supplies the required flow when boost and fuel demand rise without running all available pump capacity at full output all the time.

Key points

• Increased low-side flow for tuned and ethanol-fuelled builds
• Model-specific installation in the original fuel tank
• Fuel and electrical connections designed for the listed platform
• A solid foundation when high-pressure fuel capacity has already been increased
• Manufacturer-rated low-side capacity of approximately 1200+ whp

The pump and its electrical control must be sized as a complete system. The higher current draw of a Walbro 525 in particular must be considered when selecting relays, wiring and PWM control. Do not overload the factory pump controller to obtain more flow.

Example vehicle fitment

• 1′ F20 (07/2010 — 02/2015)
• 1′ F20 LCI (05/2014 — 06/2016)
• 1′ F21 (07/2010 — 02/2015)
• 1′ F21 LCI (06/2014 — 06/2016)
• 2′ F22 (10/2012 — 06/2016)
• 2′ F87 M2 (11/2014 — 06/2017)
• 2′ F87 M2 LCI (09/2016 — 06/2018)
• 2′ F23 (03/2014 — 06/2016)
• 3′ F30 (02/2011 — 01/2016)
• 3′ F30 LCI (10/2014 — 10/2018)
• 3′ F31 (07/2011 — 06/2015)
• 3′ F31 LCI (12/2014 — 06/2016)
• 3′ F34 GT (07/2012 — 06/2016)
• 4′ F32 (11/2012 — 01/2017)
• 4′ F33 (03/2013 — 02/2017)
• 4′ F36 Gran Coupé (07/2013 — 12/2016)

Always confirm the engine, chassis, model year and part-specific fitment before ordering. Not every version within a model range necessarily uses the same part.
