Description
Turbosystems TSX turbo upgrade for IS38
MK7 Golf R and various other Audi / VW / Seat / Skoda 2.0L turbo engines after 2013 have been using the wellknown IS38 turbo, which is not only known for it’s modern design and capabilities – but also for it’s tendency to fail when drive with higher than stock boost pressures. This problem affects particularly earlier production from 2013-> on, but even later units up to 2020 are still fragile when tuned.
For IS38 we have a wide selection of upgrades, hybrid turbos, replacement turbos. Turbosystems TSX is one of the most heavy-duty solutions for high output, solid choice for anyone hunting those 500-600hp figures out of the 2.0T.

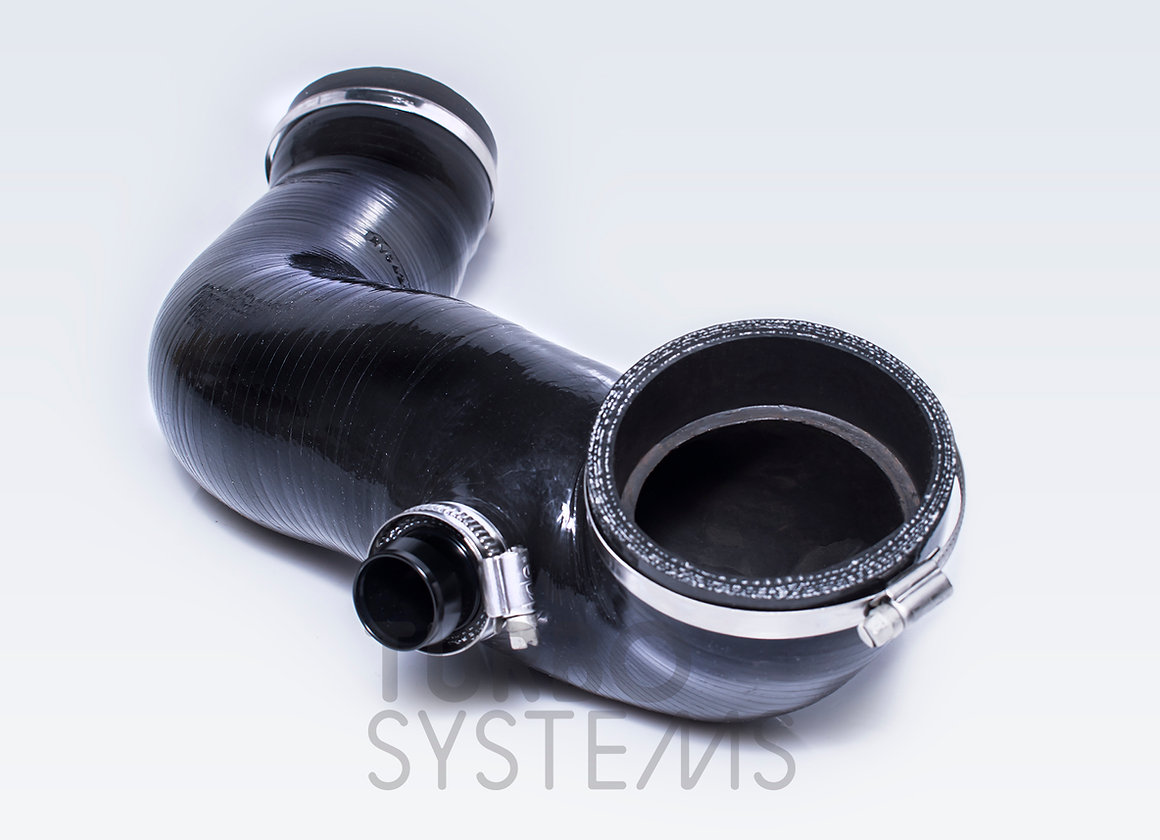

This turbo is available in two different models. Inlet pipe seen in the pictures is not included, but available for purchase separately should you need it. Turbo fits directly in place of OEM unit.
Turbosystems TSX1 (> 500hp)
- Dual ceramic ball bearing
- Reinforced 51/63mm billet compressor wheel
- Sturdy 53/50mm turbine wheel
- “Antisurge” Turbosystems compressor housing
- VSR Balanced
Turbosystems TSX2 (> 580hp)
- Dual ceramic ball bearing
- Reinforced 54/67mm billet compressor wheel
- Enlarged 58/52mm turbine wheel
- Bigger RST turbine housing
- “Antisurge” Turbosystems compressor housing
- VSR Balanced
Examples of compatible models, this unit also fits to various other 2013-2020 engines that come with IS38 from the factory.
| Model | Year | Engine code | Power (KW / HP) | IHI nr. | OEM nr. |
| Audi S3 2.0 TFSI (8V) | from 2013 | CJXB, CJXC, CJXF | 221 / 300 | 06K145722H | 06K145722H |
| Seat Leon 2.0 TSI Cupra 265 | from 2014 | CJXB, CJXC, CJXF | 195 / 265 | 06K145722H | 06K145722H |
| Seat Leon 2.0 TSI Cupra 280 | from 2014 | CJXB, CJXC, CJXF | 206 / 280 | 06K145722H | 06K145722H |
| Volkswagen Golf VII 2.0 R | from 2013 | CJXB, CJXC, CJXF | 221 / 300 | 06K145722H | 06K145722H |
