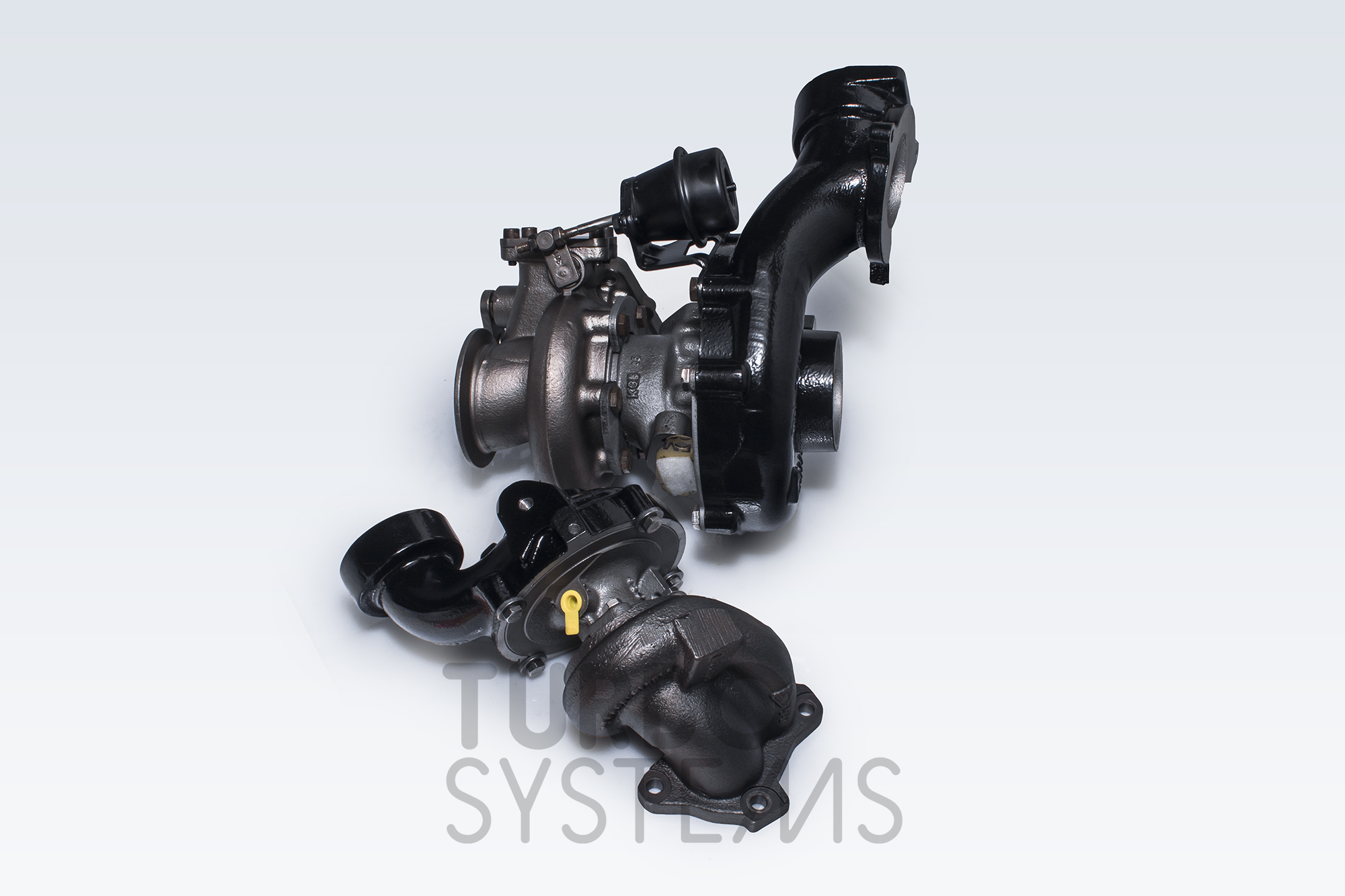

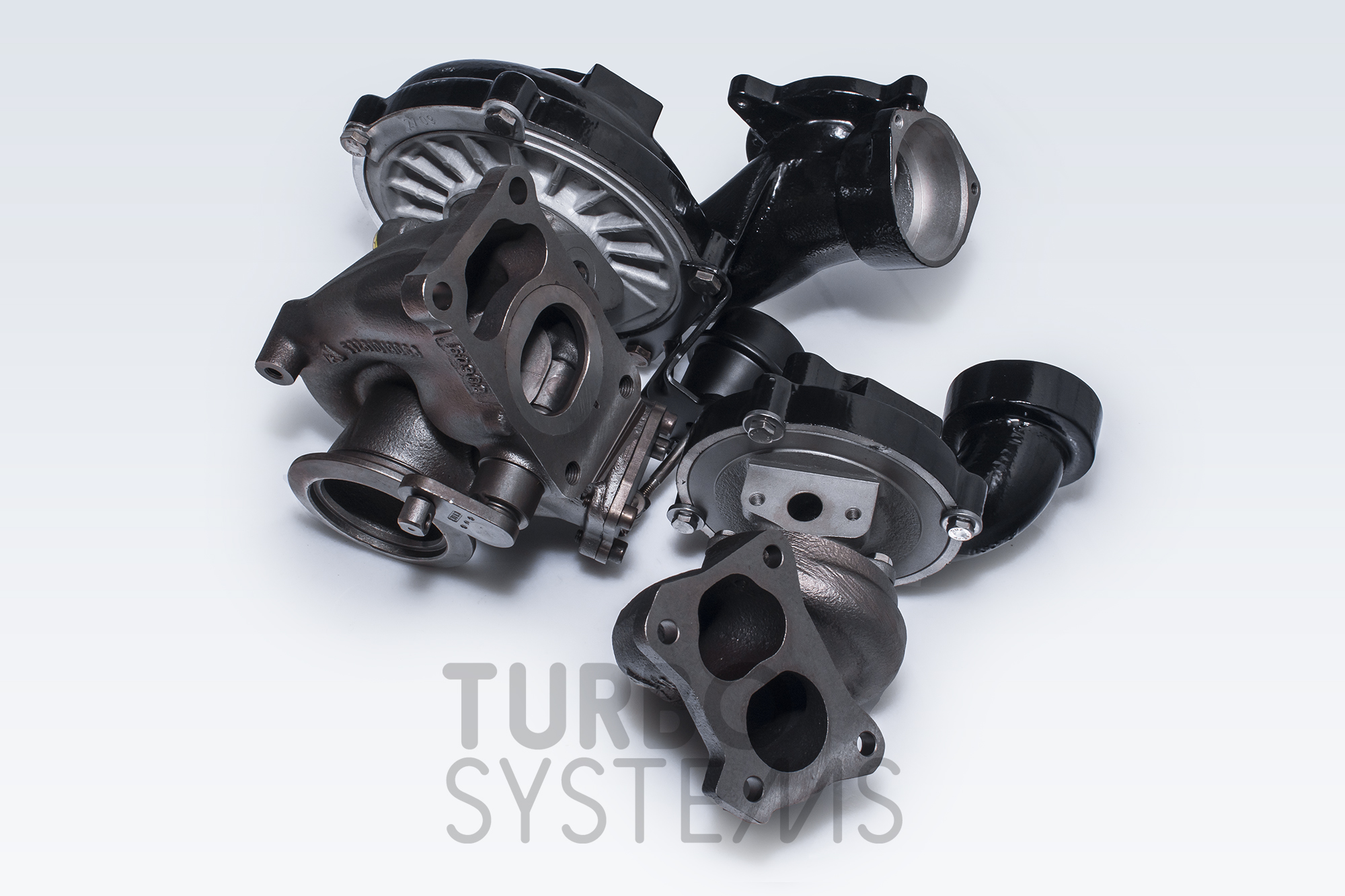

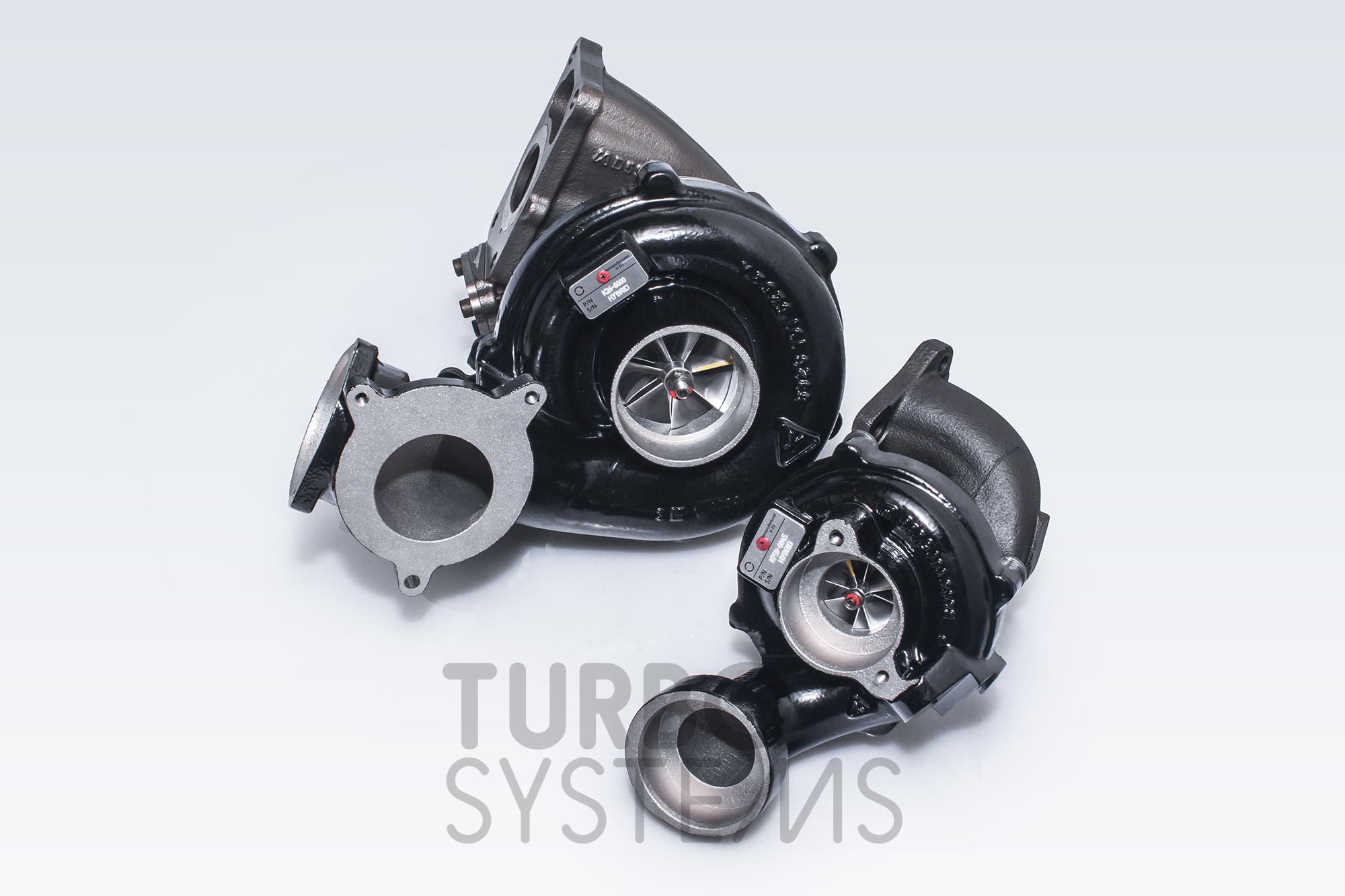

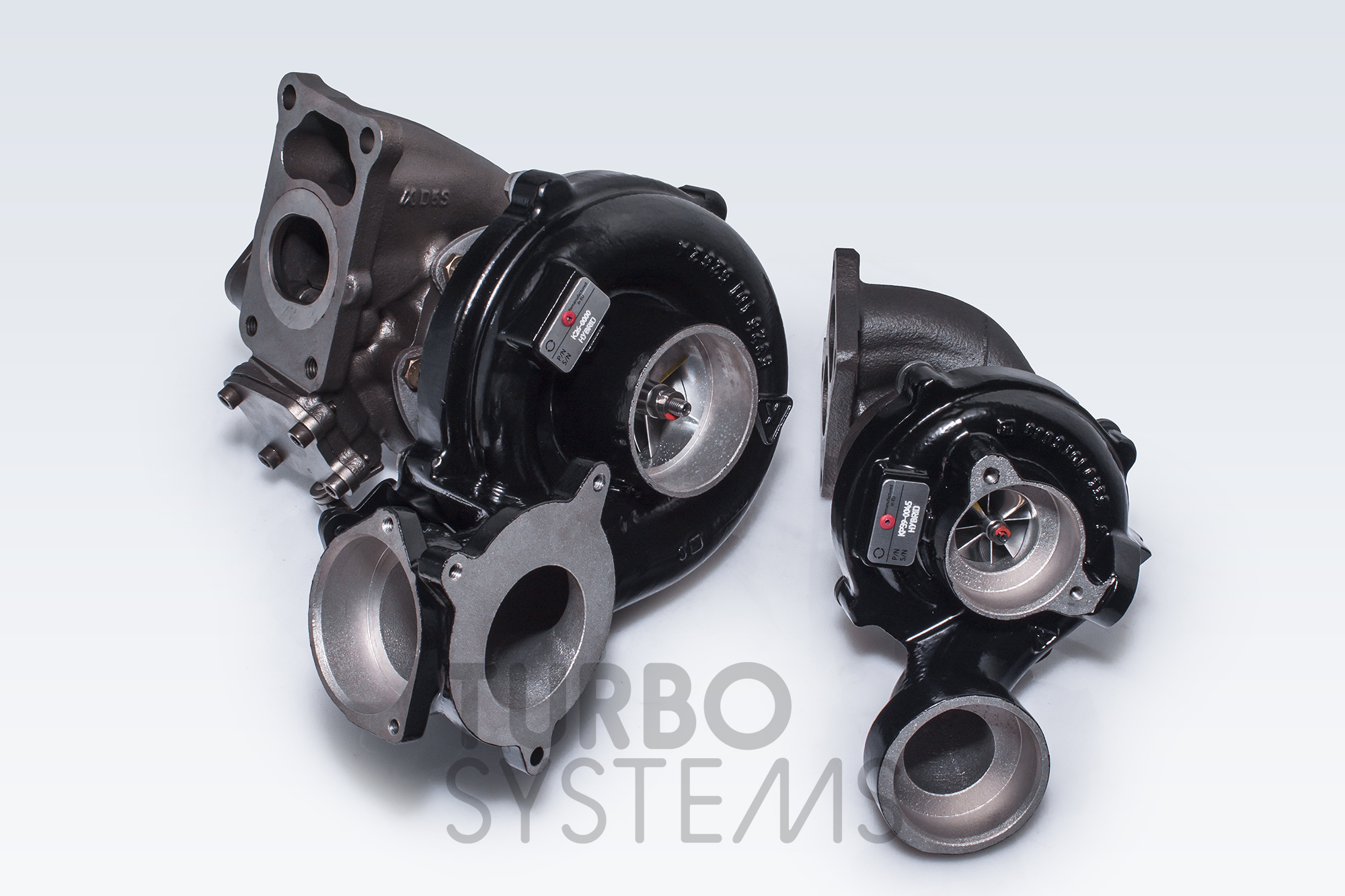

Turbosystems 420hp turbo upgrade for BMW 535d E60 (M57D30TOP)

Description

BMW 535d E60 E61 2004-2007 turbo kit, Turbosystems M57D30TOP
A robust performance turbo kit produced by Turbosystems for BMW M57 35d engines of engine type -TOP.

This engine is a familiar one for diesel tuners, as it reliably and easily generates significantly higher power than the stock configuration. The limiting factors in the stock setup are the turbocharger output and, depending on the power goal, the fuel system capacity. We also offer upgraded components such as pump, pressure regulator, injectors, valve, and pressure sensor (ask us).

Please note that the declared output of the turbo is the maximum capacity of the unit; to achieve the desired power, other components such as cooling, fuel delivery, and engine tuning must also be in the required condition and tuned properly.

This set is currently available only as a conversion to your stock units. In other words, you should return your stock turbos for us and you’ll receive them back as a fresh set of Turbosystems units. You will receive return instructions after placing your order.

BMW 535d E60 M57D30TOP turbo set – capacity +420hp

(KP39)

• fitted reinforced thrust bearing
• reinforced impeler and turbine wheel
• compressor wheel replaced with machined from the solid to hold high loads on 3 bar boost and above
• refurbished housings
• new shaft
• balanced on VSR

(K26)

• fitted reinforced 360° thrust bearing
• reinforced bigger machined from the solid compressor wheel (56/78mm)
• bigger high flow turbine wheel (65/55mm)
• refurbished housings
• new shaft
• balanced on VSR
